be quiet! SilentWings 3 Fan 14 cm Black
Art. no. BE-QUIET-BL069
On request
be quiet! SilentWings 3, Fan, 14 cm, 1600 RPM, 131.79 m³/h, Black
Specifications
Design
| Fan connector | 3-pin |
|---|---|
| Number of fans | 1 fan(s) |
| Fan diameter | 14 cm |
Features
| Product colour | Black |
|---|---|
| Mean time between failures (MTBF) | 300000 h |
| Certification | CE, WEEE, RU, Tüv |
| Type | Fan |
| Cable length | 0.5 m |
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|
Other features
| Voltage | 5 - 13.2 V |
|---|
Packaging content
| Screws included | Yes |
|---|
Packaging data
| Package width | 155.4 mm |
|---|---|
| Package depth | 32.1 mm |
| Package height | 205.3 mm |
| Package weight | 350 g |
Power
| Rated current | 0.5 A |
|---|---|
| Power consumption (typical) | 6 W |
Sustainability
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 140 mm |
|---|---|
| Depth | 140 mm |
| Height | 25 mm |
General
| Brand | be quiet! |
|---|---|
| Manufacturer part number | BL069 |
Performance
| Airflow | 131.79 m³/h |
|---|---|
| Maximum air pressure | 2.16 mmH2O |
| Maximum airflow | 77.57 cfm |
| Noise level (high speed) | 28.1 dB |
| Rotational speed (max) | 1600 RPM |
| Suitable location | Computer case |
Ungrouped
| Gtin | 4260052184745 |
|---|
Description

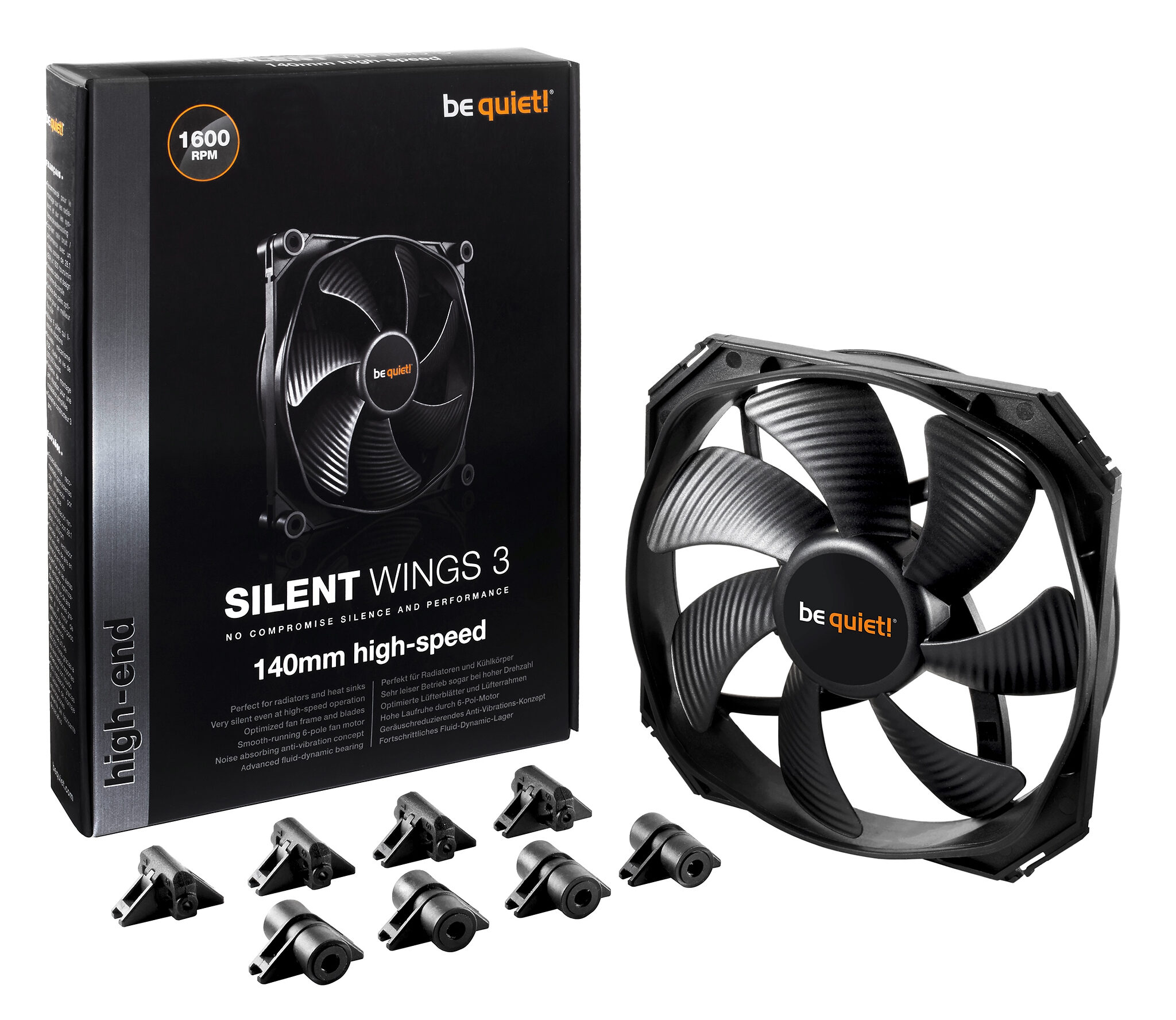

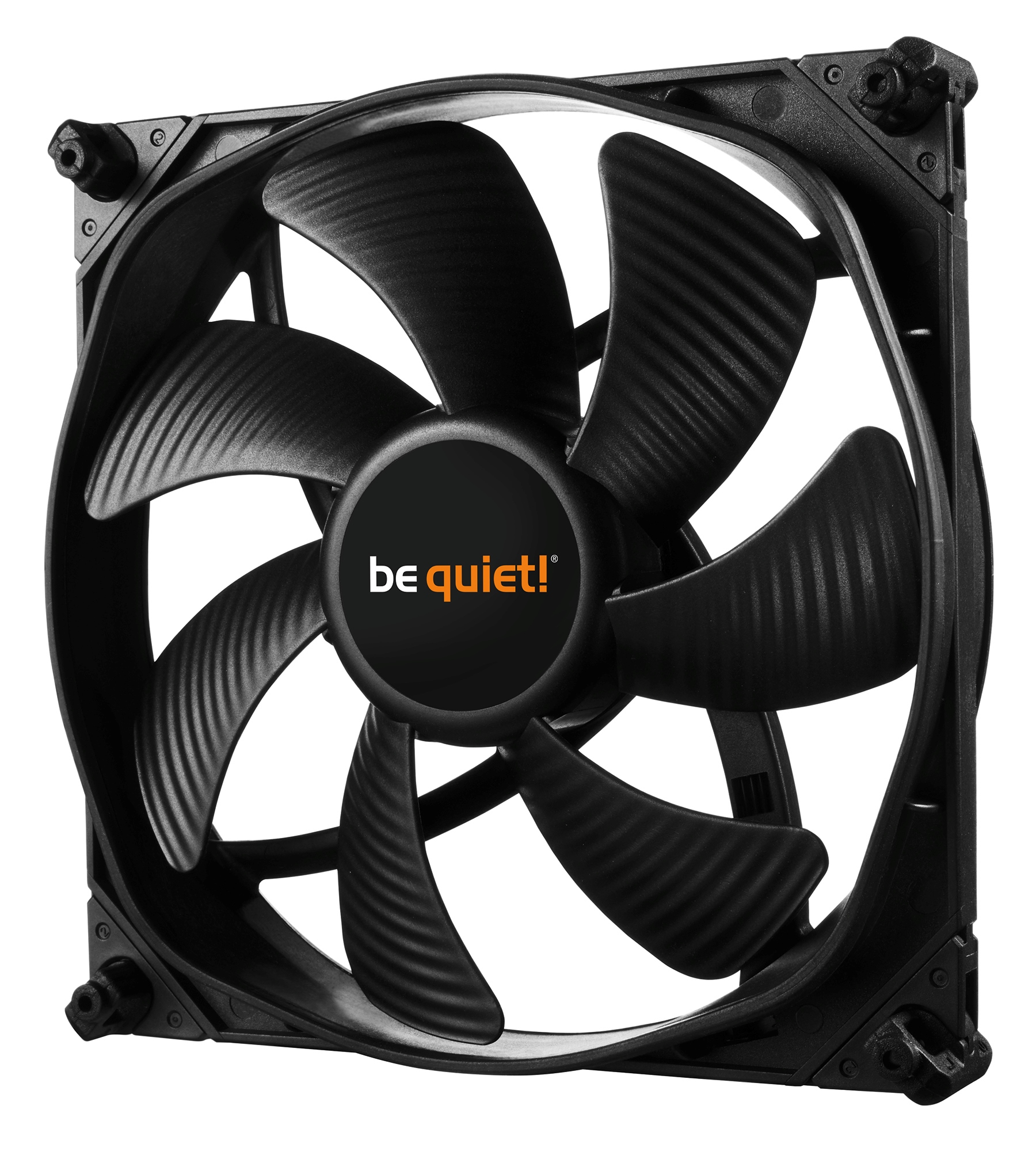

No Compromise Silence and Performance
be quiet! SilentWings® 3 fans stand for state-of-the-art technology, virtually inaudible operation and superior cooling. Their secret: a smooth-running 6-pole fan motor, an advanced fluid-dynamic bearing, a unique airflow-optimized fan blade design and a fan frame with funnel-shaped air inlets.
- Great performance-to-noise ratio with the perfect balance between cooling and silence
- 6-pole fan motor with three phases giving very low power consumption and less vibration
- Advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours
- Seven fan blades with optimized surface structures ensure excellent airflow

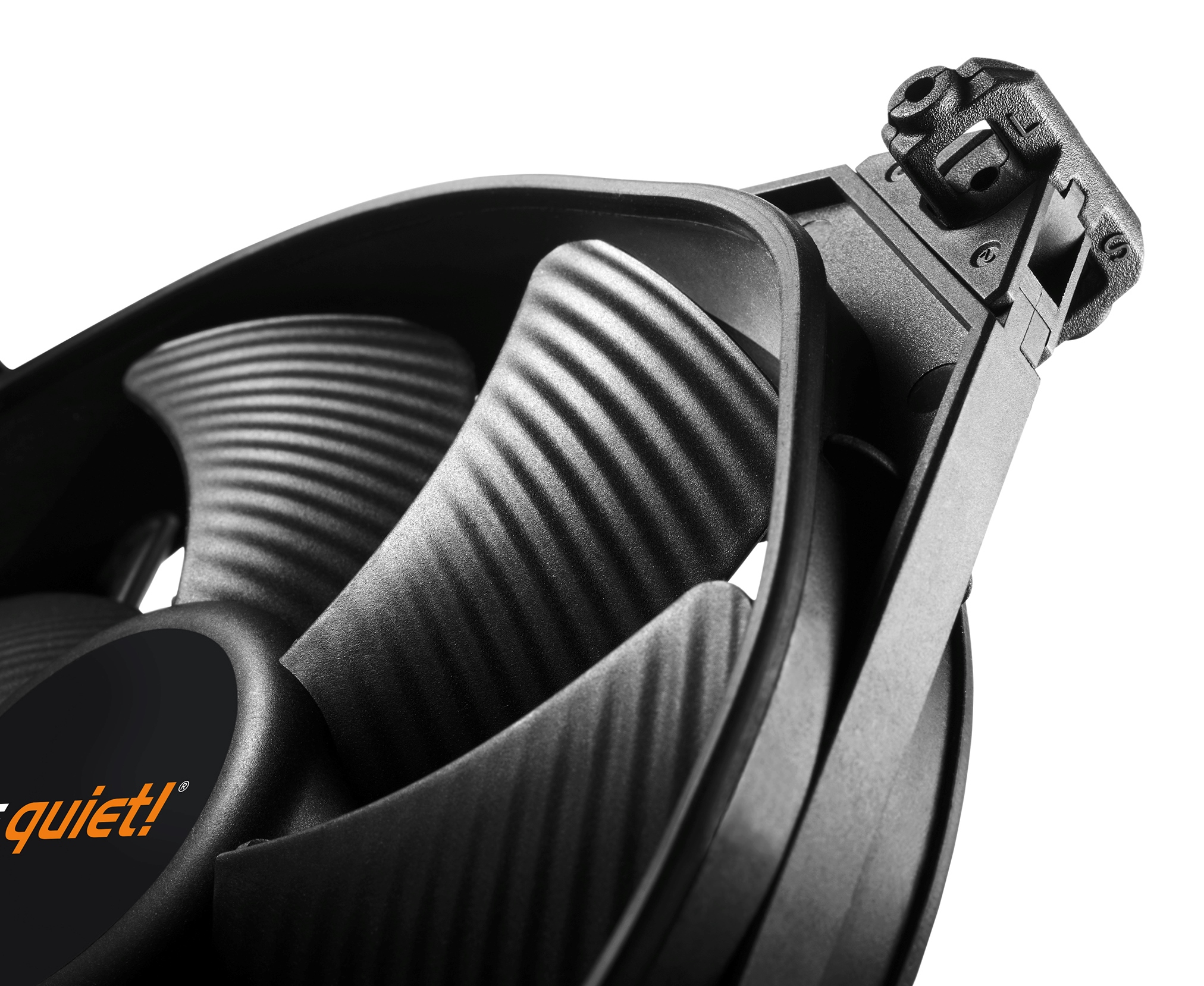

- The rubberized fan frame is equipped with funnel-shaped air inlets producing extremely high air pressure
- Removable anti-vibration mountings minimize the transmission of vibrations to the PC case and its components
- Advanced high quality IC motor controller reduces electrical noise
- High-speed models are especially recommended for use in powerful water cooling and air cooling set ups
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
