MSI MAG Coreliquid E240, Processor All-in-one liquid cooler 12 cm Black
Art. no. MSI-MAG CORELIQUID E240
MSI MAG Coreliquid E240, All-in-one liquid cooler, 12 cm, Black

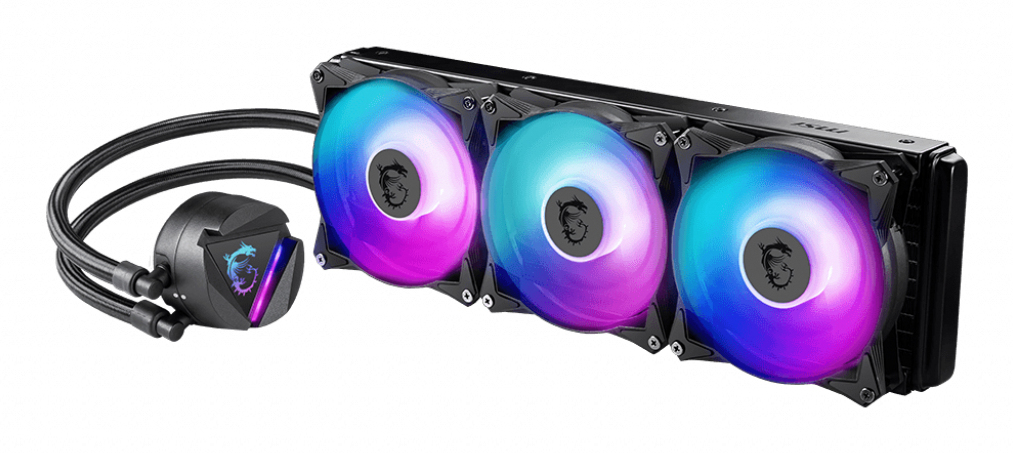

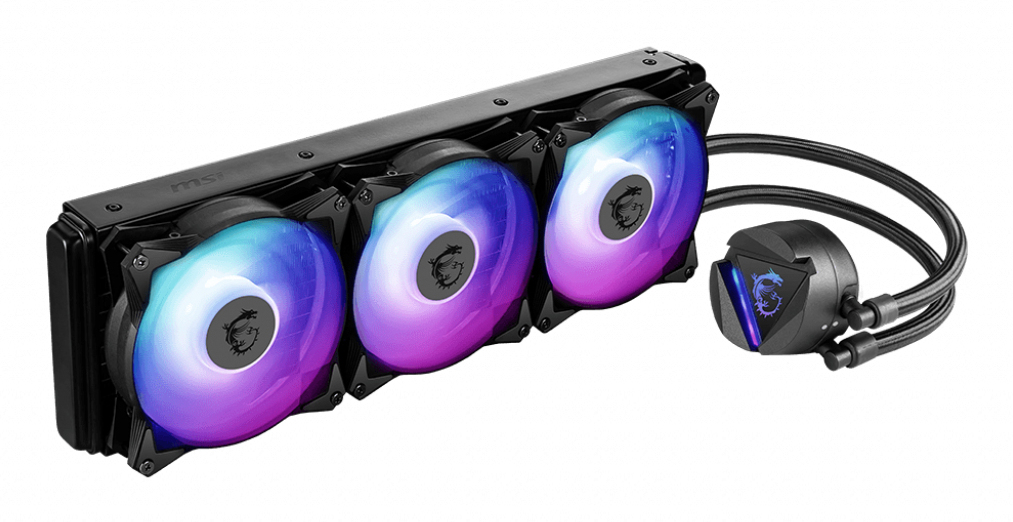

MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready', All-in-one liquid cooler, 12 cm, 500…
Design
| Fan connector | 4-pin |
|---|---|
| Illumination LED | Yes |
| Radiator material | Aluminum |
| Number of fans | 3 fan(s) |
| Fan diameter | 12 cm |
Features
| Product colour | Black |
|---|---|
| Type | All-in-one liquid cooler |
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|
Power
| Fan current | 0.15 A |
|---|---|
| Fan power consumption | 1.8 W |
| Fan voltage | 12 V |
| Pump current | 340 mA |
| Pump power consumption | 4.08 W |
| Pump voltage | 12 V |
Processor
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM… |
|---|
Weight & dimensions
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
|---|---|
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Radiator width | 39.4 cm |
| Tube length | 40 cm |
| Waterblock depth | 6.68 cm |
| Waterblock height | 4.86 cm |
| Waterblock width | 8.06 cm |
General
| Brand | MSI |
|---|---|
| Manufacturer part number | MAG CORELIQUID 360R V2 |
Performance
| Bearing type | Ball bearing |
|---|---|
| Fan bearing technology | Ball bearing |
| Fan diameter 2 | 12 cm |
| Fan noise level (max) | 34.3 dB |
| Fan noise level (min) | 14.3 dB |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 500 RPM |
| Maximum air pressure | 2.39 mmH2O |
| Maximum airflow | 78.73 cfm |
| Minimum air pressure | 0.23 mmH2O |
| Minimum airflow (imperial) | 21.63 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Pump bearing technology | Ceramic bearing |
| Pump connector | 3-pin |
| Pump motor speed | 4200 RPM |
| Pump noise level | 18 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 500 RPM |
| Suitable location | Motherboard, Processor |
Ungrouped
| Gtin | 4526541039089 |
|---|
CONQUER THE BATTLEFIELD
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
LGA 1700 COMPATIBLE
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 360R V2's noise level is significantly lower than that of competitor's by 10%.
COOLING YOU CAN'T HEAR
For those who prefer a quieter environment, a bundled noise reducer cable changes the fans’ speed to produce less sound while still providing good airflow.
EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
