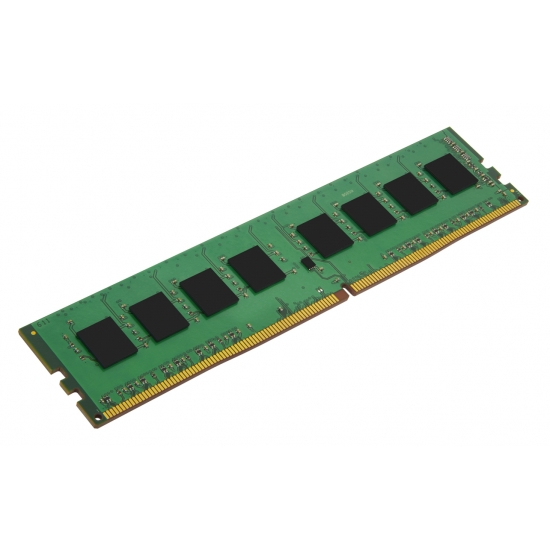

Kingston Technology ValueRAM 8 GB 1 x 8 GB DDR4 2666 MT/s 288-pin DIMM Kingston Technology ValueRAM memory module 8 GB 1 x 8 GB DDR4 2666 MT/s 288-pin DIMM

Kingston Technology ValueRAM 8 GB 1 x 8 GB DDR4 2666 MT/s 288-pin DIMM

Art. no. KINGSTON-KVR26N19S8/8 On request

Kingston Technology ValueRAM , 8 GB, 1 x 8 GB, DDR4, 288-pin DIMM, Green

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

Features

CAS latency 19
Internal memory 8 GB
Memory layout (modules x size) 1 x 8 GB
Internal memory type DDR4
Memory data transfer rate 2666 MT/s
Component for PC/Server
Memory form factor 288-pin DIMM
ECC No
Buffered memory type Unregistered (unbuffered)
Memory ranking 1
Memory voltage 1.2 V
Module configuration 1024M x 64
Row cycle time 45.75 ns
Row active time 32 ns
SPD profile Yes
Product colour Green
Cooling type Heatsink
Lead plating Gold
Refresh row cycle time 350 ns
Windows operating systems supported Yes

Logistics data

Harmonized System (HS) code 84733020

Operational conditions

Operating temperature (T-T) 0 - 85 °C
Storage temperature (T-T) -55 - 100 °C

Other features

Country of origin Taiwan
Doesn't contain Halogen

Software

Mac operating systems supported Yes
Linux operating systems supported Yes

Sustainability

Compliance certificates RoHS

Weight & dimensions

Width 133.3 mm
Height 31.2 mm

General

Brand Kingston Technology
Manufacturer part number KVR26N19S8/8

Ungrouped

Gtin 0740617270907

Description

This document describes ValueRAM's KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of
19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
