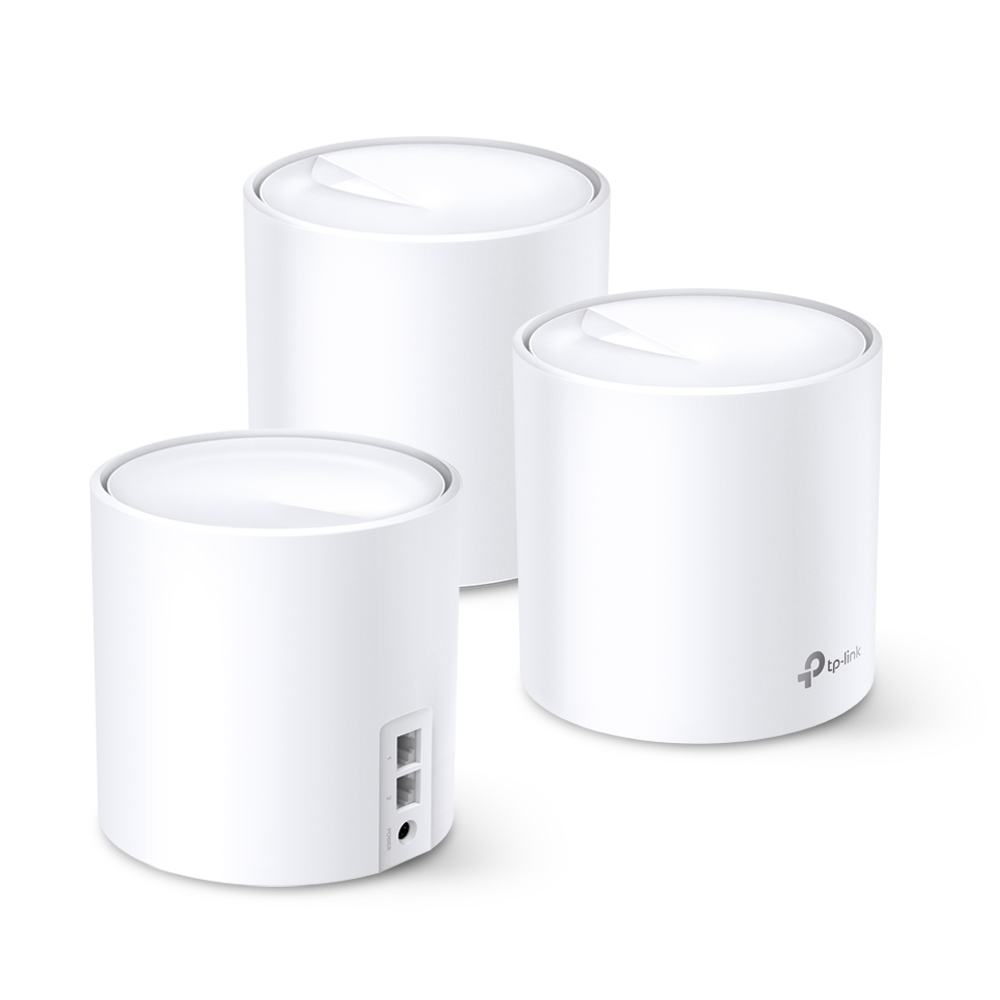

TP-Link AX1800 Whole Home Mesh Wi-Fi 6 System, 3-Pack, White, Internal, Mesh system, Power, FCC: <30 dBm, CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), Dual-band (2.4 GHz / 5 GHz)
Antenna
| Antenna type | Internal |
|---|---|
| Antennas quantity | 4 |
| Transmit power | FCC: <30 dBm, CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
Design
| Reset button | Yes |
|---|---|
| LED indicators | Power |
| Product type | Mesh system |
Features
| Product colour | White |
|---|---|
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3 |
| Certification | FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC |
| Built-in processor | Yes |
| Processor cores | 4 |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Management features
| Quality of Service (QoS) support | Yes |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Other features
| AC adapter included | Yes |
|---|
Packaging content
| Ethernet cable | Yes |
|---|---|
| Number of units included | 3 pc(s) |
| Number of products included | 3 pc(s) |
Packaging data
| Package width | 369 mm |
|---|---|
| Package depth | 276.5 mm |
| Package height | 125 mm |
| Package weight | 2.25 kg |
Ports & interfaces
| DC-in jack | Yes |
|---|
Power
| AC adapter input current | 0.4 A |
|---|---|
| AC adapter output current | 1 A |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| AC adapter output voltage | 12 V |
Protocols
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 2 |
|---|
Security
| Parental control | Yes |
|---|---|
| Firewall security | SPI |
| Guest access | Yes |
Sustainability
| Compliance certificates | CE, RoHS |
|---|---|
| Sustainability compliance | Yes |
WAN connection
| Ethernet WAN | Yes |
|---|
Weight & dimensions
| Width | 110 mm |
|---|---|
| Depth | 110 mm |
| Height | 114 mm |
Wireless LAN features
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 1775 Mbit/s |
| WLAN data transfer rate (first band) | 1201 Mbit/s |
| WLAN data transfer rate (second band) | 574 Mbit/s |
General
| Brand | TP-Link |
|---|---|
| Manufacturer part number | DECO X20(3-PACK) |
Ungrouped
| Gtin | 6935364086947 |
|---|
Advanced Mesh Powered by Wi-Fi 6
Armed with Wi-Fi 6 technology, Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.

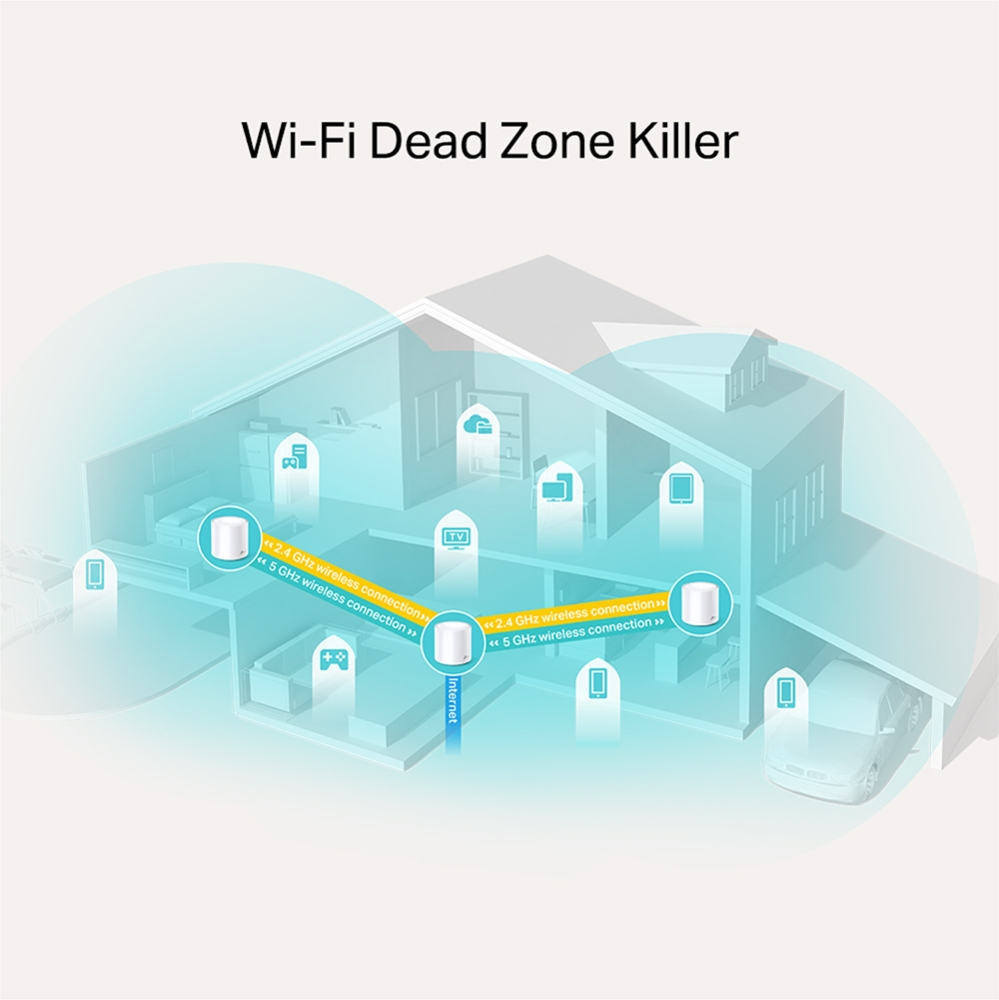

Wi-Fi Dead Zone Killer
With clearer and stronger signals enhanced by BSS Color and Beamforming, Deco X20 boosts broader whole home Wi-Fi up to 5,800 ft2 (3-pack).† Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another Deco.
True Seamless Roaming for Greater Experiences
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.
More Connections for Immersive Streaming
Enjoy a more efficient network with 4× the average throughput on connected devices in dense environments thanks to Wi-Fi 6 technology△. Deco X20 is tested to connect over 150 devices without dragging down performance.
Faster Wi-Fi 6 Speed = No Wait
The latest 1024-QAM and higher symbol rate combines to boost speeds up to 1.8 Gbps—ideal for bandwidth-intensive tasks like cloud gaming and 4K UHD video. Families will enjoy immersive live-streaming with flawless video and clear audio without buffering.
Greatly Reduced Lag, More Fun
Wi-Fi 6 brings stable and responsive Wi-Fi connections to tomorrow's hyper-connected home. Enjoy more responsive gaming and seamless video chatting even when multiple compatible devices are connected and transmitting data at the same time
Setup Just Got a Lot Easier
Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest, getting your network up and running in minutes.
