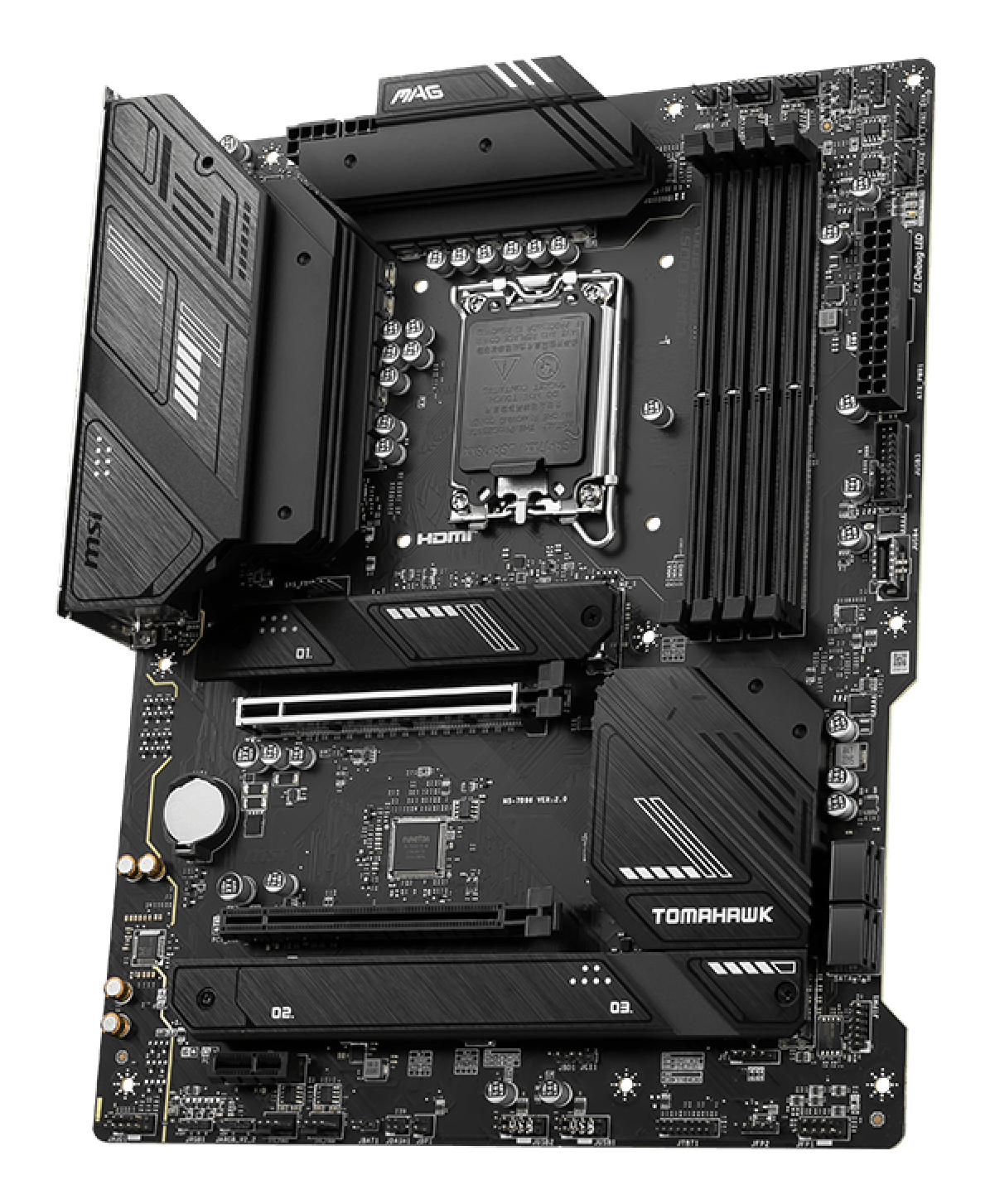

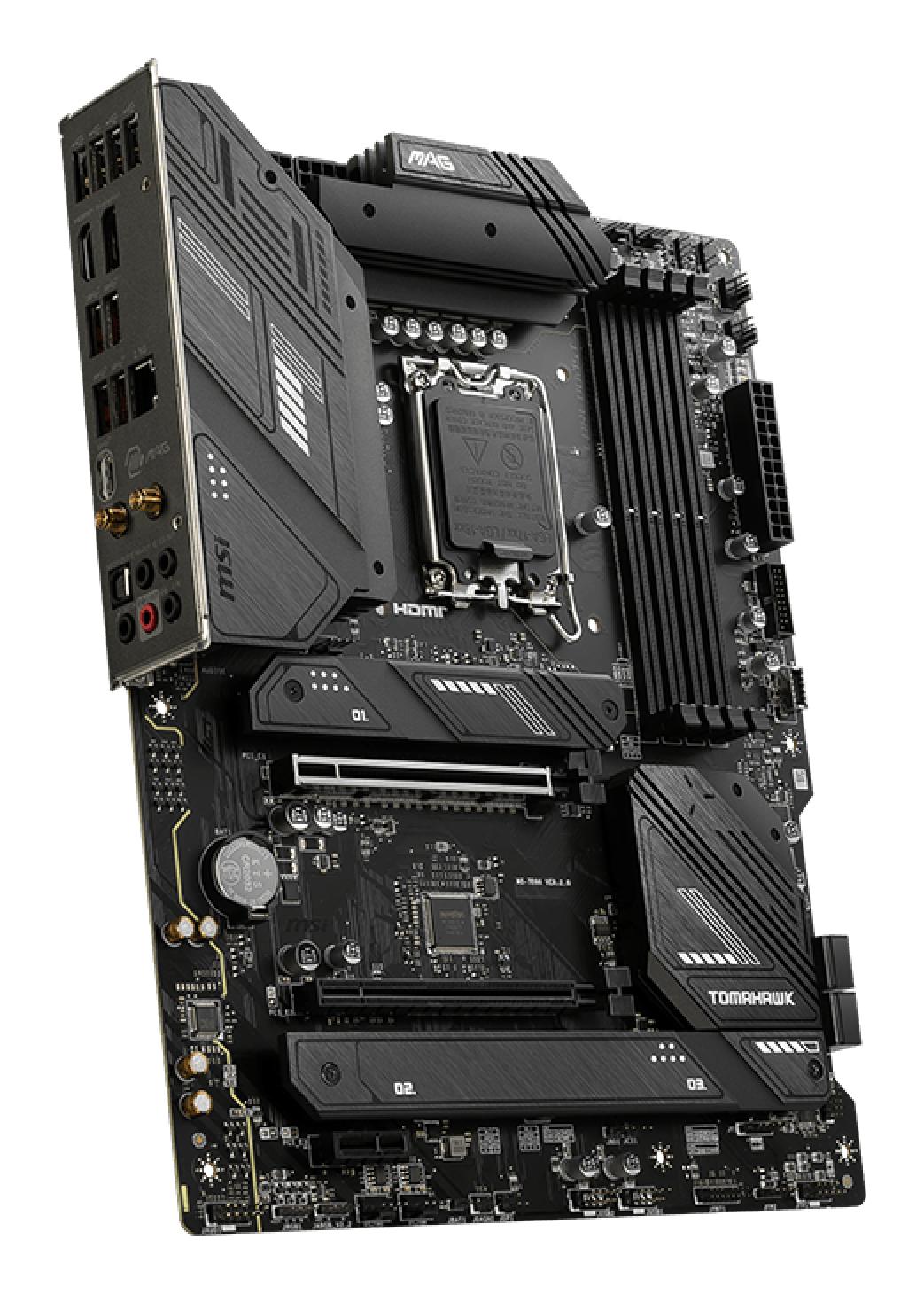

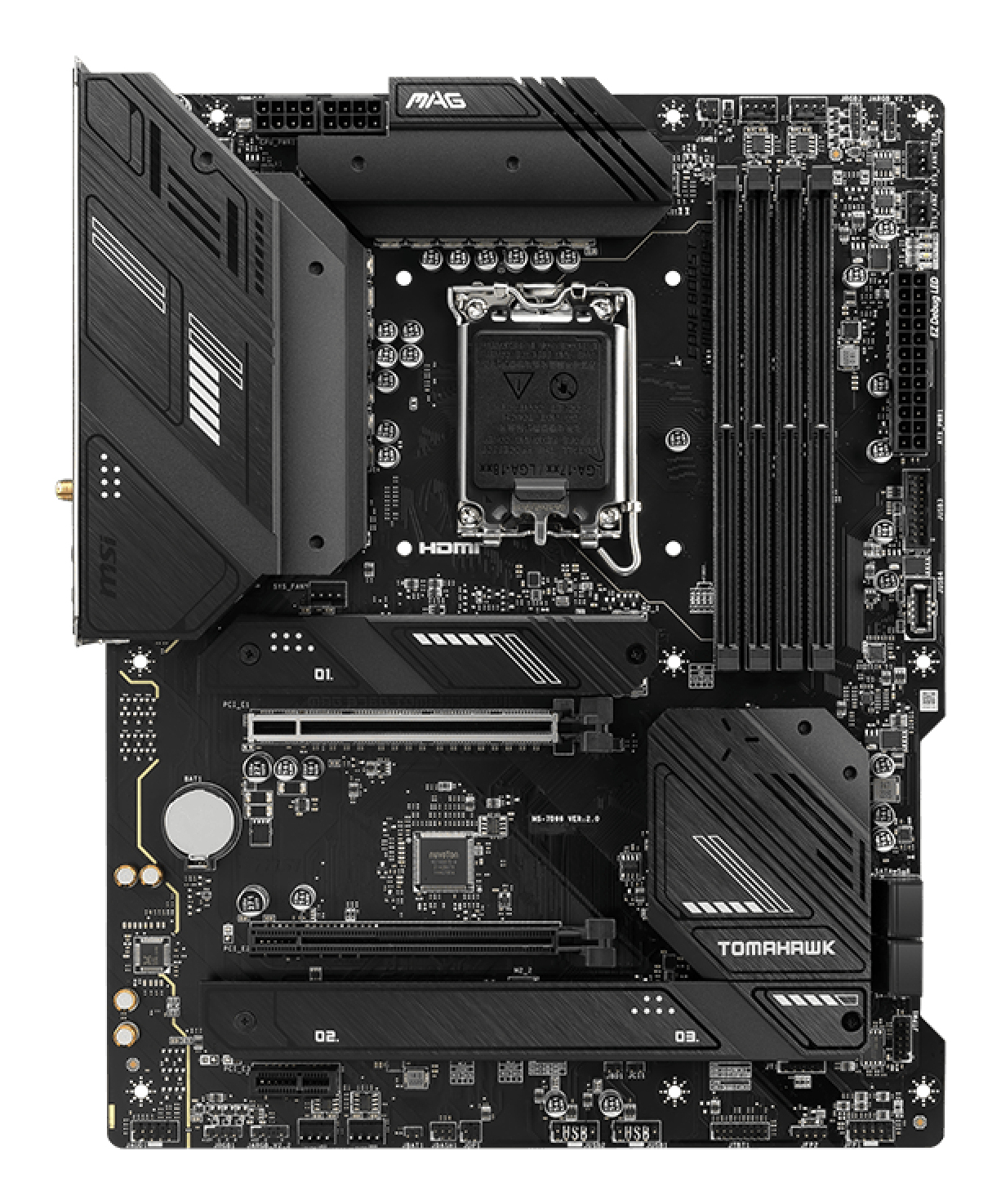

MSI MAG B760 TOMAHAWK WIFI Intel B760 LGA 1700 ATX

Art. no. MSI-MAG B760 TOMAHAWK WIFI On request

MSI MAG B760 TOMAHAWK WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 128 GB

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

BIOS

BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 6.4
System Management BIOS (SMBIOS) version 3.5

Expansion slots

PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 3
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 slots 2

Features

Component for PC
Product colour Black
Windows operating systems supported Windows 10, Windows 11
Motherboard chipset Intel B760
Audio output channels 7.1 channels
Motherboard form factor ATX
Motherboard chipset family Intel
Audio chip Realtek ALC897
Power source type ATX

Graphics

On-board graphics card No

Internal I/O

USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
S/PDIF out connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
TPM connector Yes
RGB LED pin header Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes

Memory

Memory channels Dual-channel
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
ECC сompatibility Non-ECC
Supported memory clock speeds 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max) 7000 MHz
Maximum internal memory 128 GB

Network

Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth Yes
Bluetooth version 5.3

Processor

Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets LGA 1700
Maximum number of SMP processors 1

Rear panel I/O ports

USB 2.0 ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
DisplayPorts quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
HDMI version 2.1
DisplayPort version 1.4

Storage controllers

Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 7
RAID support Yes
RAID levels 0, 1, 5, 10

Weight & dimensions

Width 243.8 mm
Depth 304.8 mm

General

Brand MSI
Manufacturer part number MAG B760 TOMAHAWK WIFI

Ungrouped

Gtin 4711377034210

Description

unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper
MOS and helps dissipate the heat.

7W/mK Thermal Pad &
Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
