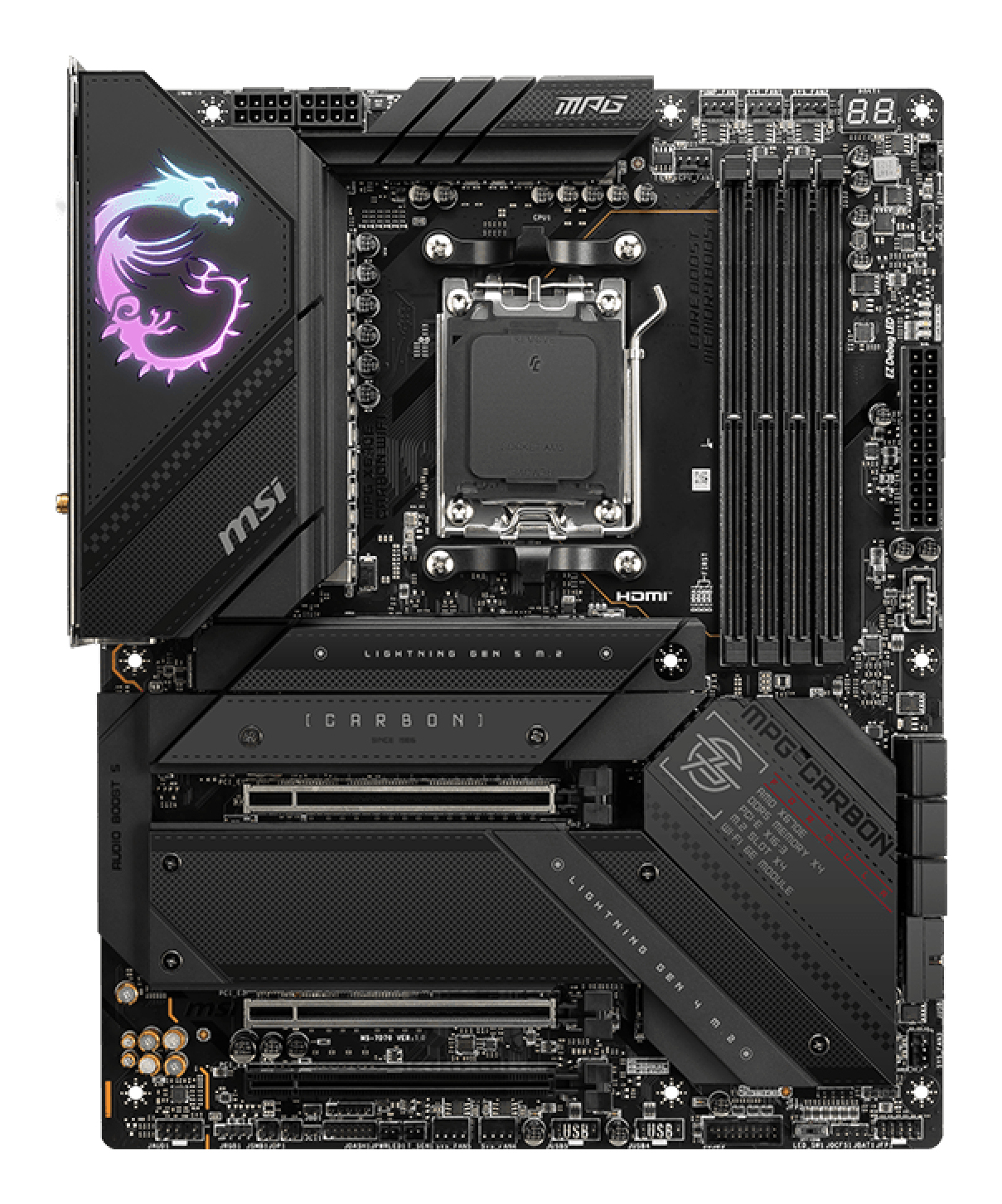

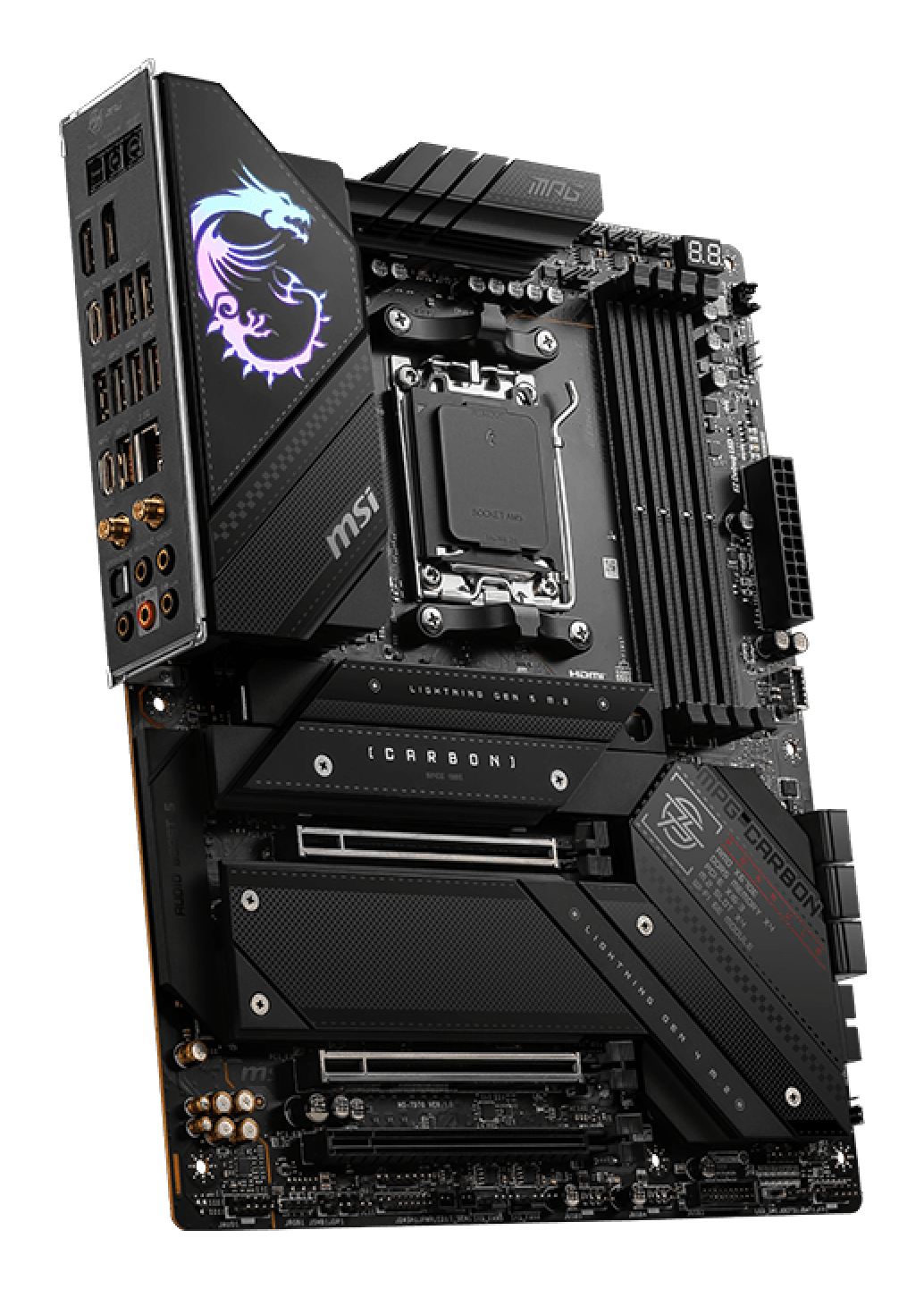

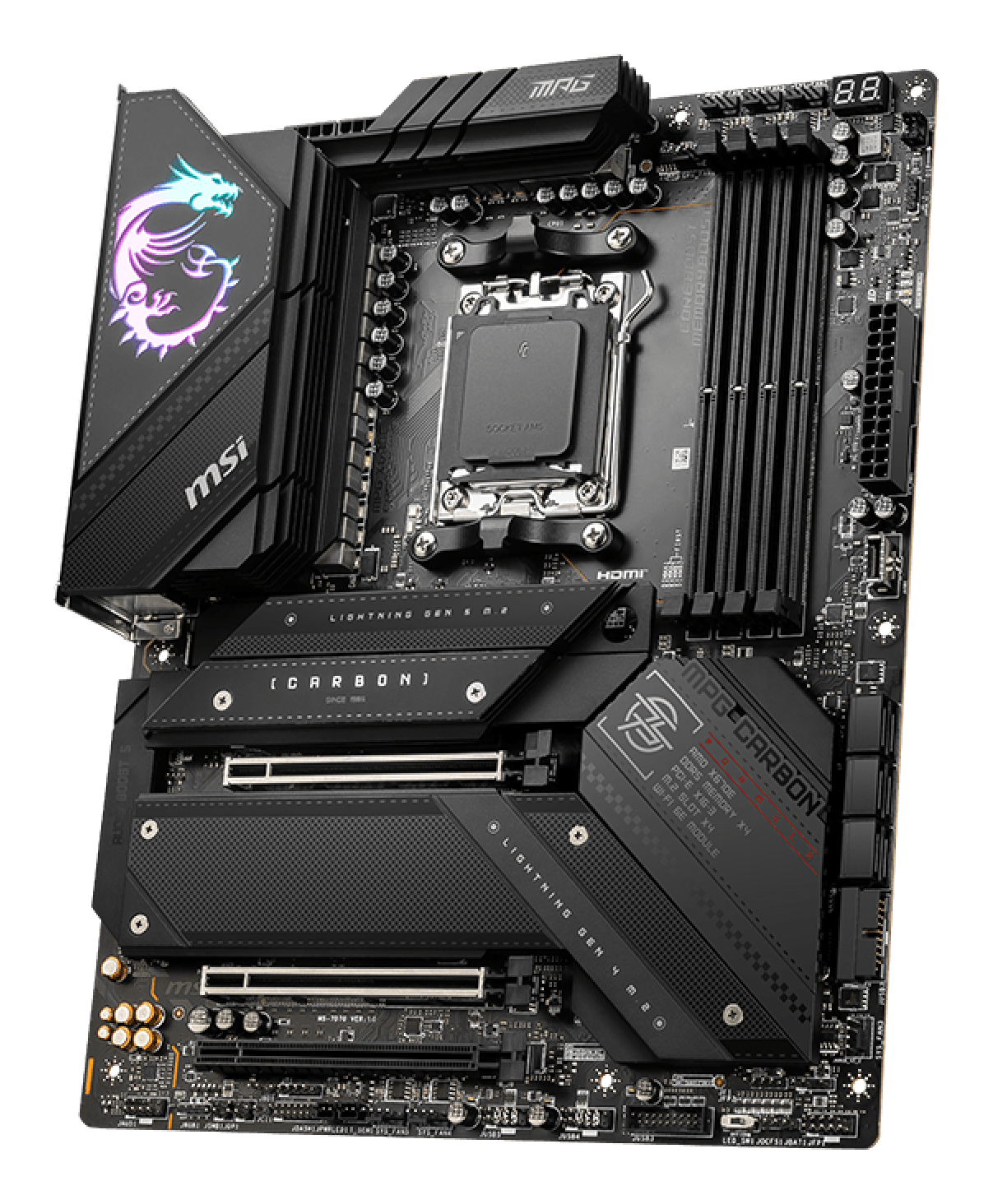

MSI MPG X670E CARBON WIFI AMD X670 Socket AM5 ATX MSI MPG X670E CARBON WIFI motherboard AMD X670 Socket AM5 ATX MSI MPG X670E CARBON WIFI motherboard AMD X670 Socket AM5 ATX MSI MPG X670E CARBON WIFI motherboard AMD X670 Socket AM5 ATX

MSI MPG X670E CARBON WIFI AMD X670 Socket AM5 ATX

Art. no. MSI-MPG X670E CARBON WIFI On request

MSI MPG X670E CARBON WIFI, AMD, Socket AM5, AMD Ryzen™ 7, DDR5-SDRAM, 128 GB, DIMM

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

Expansion slots

PCI Express x16 slots 3

Features

Component for PC
Product colour Black
Windows operating systems supported Windows 10 Home x64, Windows 11 x64
Motherboard chipset AMD X670
Audio output channels 7.1 channels
Motherboard form factor ATX
Motherboard chipset family AMD
Audio chip Realtek ALC4080

Graphics

On-board graphics card No

Internal I/O

USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 4
Audio connector Yes
Front panel connector Yes
CPU fan connector Yes
RGB LED pin header Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 4
Number of SATA III connectors 6
Chassis intrusion connector Yes

Memory

Memory channels Dual-channel
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
ECC сompatibility Non-ECC
Maximum internal memory 128 GB

Network

Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Yes
LAN controller Realtek RTL8125-BG
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth Yes
Bluetooth version 5.2

Packaging content

Cables included SATA
Drivers included Yes

Processor

Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen™ 7
Maximum number of SMP processors 1

Rear panel I/O ports

USB 2.0 ports quantity 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 6
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
DisplayPorts quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
USB 3.2 Gen 2x2 Type-C ports quantity 1
HDMI version 2.1
DisplayPort version 1.4
S/PDIF out port Yes

Storage controllers

Supported storage drive interfaces M.2, SATA II
RAID levels 0, 1, 10
Supported storage drive types HDD & SSD

Weight & dimensions

Width 304.8 mm
Depth 243.8 mm

General

Brand MSI
Manufacturer part number MPG X670E CARBON WIFI

Ungrouped

Gtin 4711377004879

Description

BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MPG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
