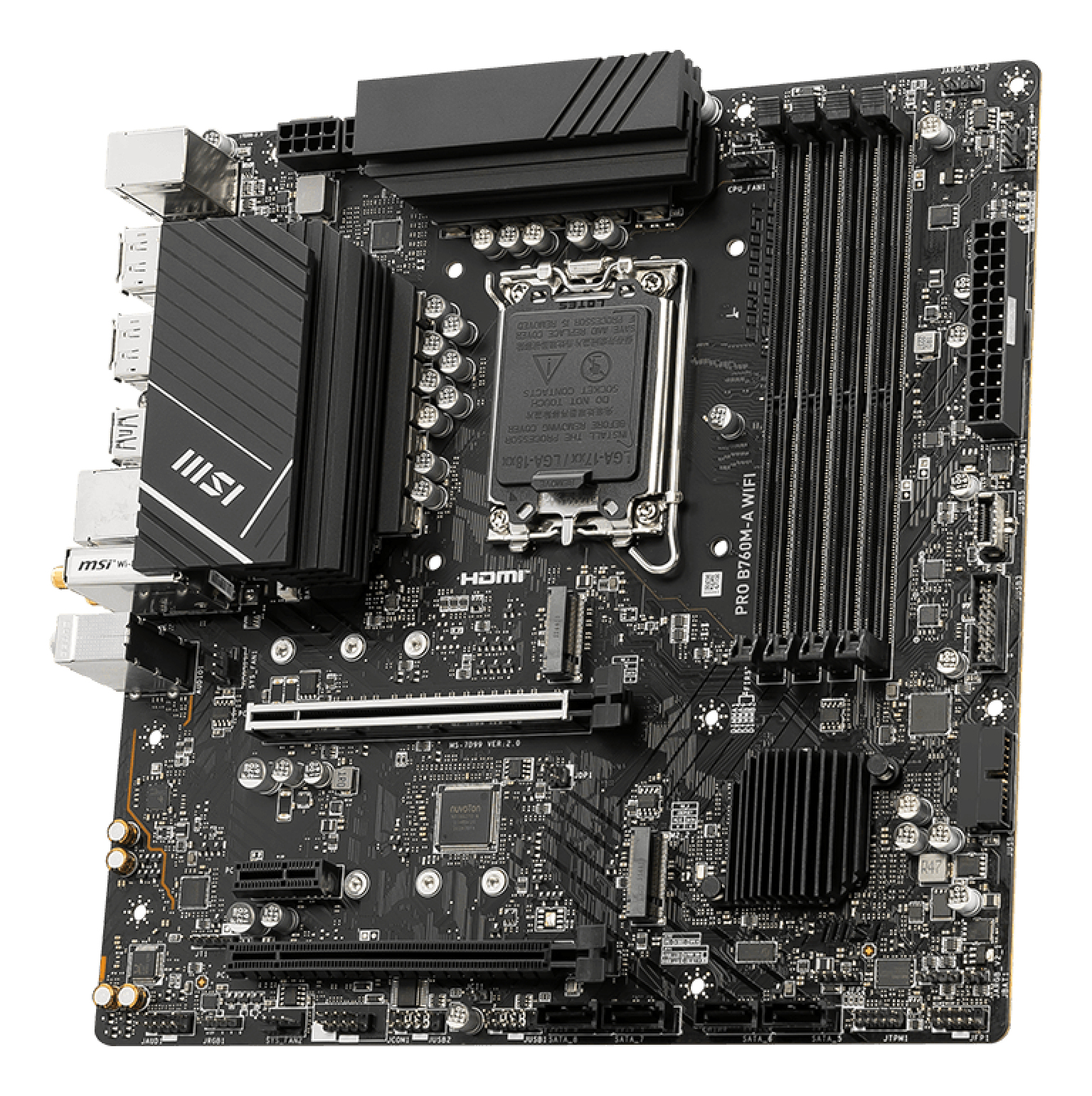

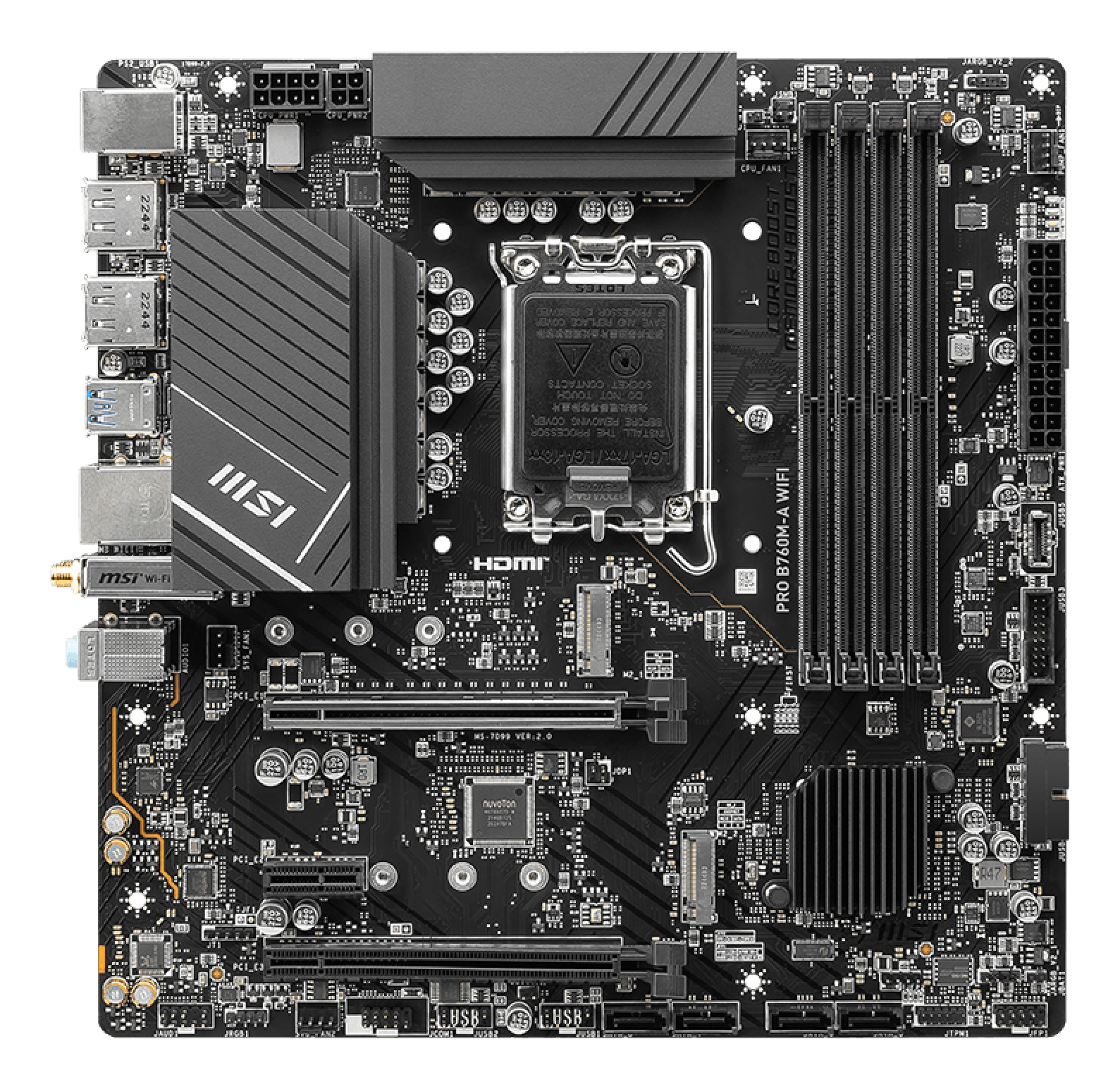

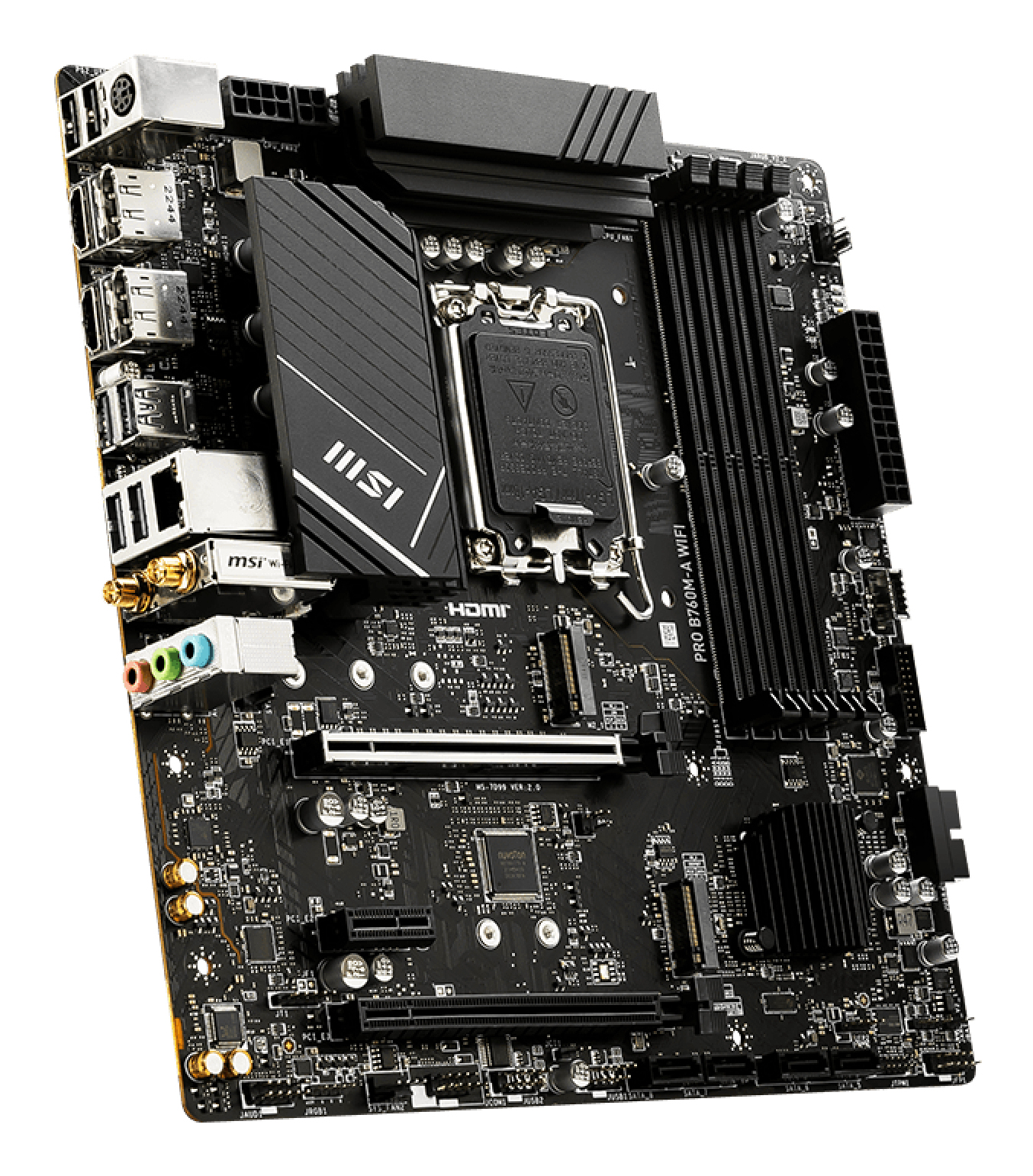

MSI PRO B760M-A WIFI Intel B760 LGA 1700 micro ATX MSI PRO B760M-A WIFI motherboard Intel B760 LGA 1700 micro ATX MSI PRO B760M-A WIFI motherboard Intel B760 LGA 1700 micro ATX MSI PRO B760M-A WIFI motherboard Intel B760 LGA 1700 micro ATX

MSI PRO B760M-A WIFI Intel B760 LGA 1700 micro ATX

Art. no. MSI-PRO B760M-A WIFI On request

MSI PRO B760M-A WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 192 GB

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

BIOS

BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 6.4
Clear CMOS jumper Yes
System Management BIOS (SMBIOS) version 3.5

Expansion slots

PCI Express x1 (Gen 3.x) slots 2

Features

Component for PC
Windows operating systems supported Windows 10, Windows 11
Motherboard chipset Intel B760
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Motherboard chipset family Intel
Audio chip Realtek ALC897
Power source type ATX

Internal I/O

USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 4
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
TPM connector Yes
RGB LED pin header Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes

Memory

Memory channels Dual-channel
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
ECC сompatibility Non-ECC
Supported memory clock speeds 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max) 6800 MHz
Maximum internal memory 192 GB

Network

Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth Yes
Bluetooth version 5.3

Processor

Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets LGA 1700
Maximum number of SMP processors 1

Rear panel I/O ports

USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 2
DisplayPorts quantity 2

Storage controllers

Supported storage drive interfaces M.2, SATA III
RAID support Yes
RAID levels 0, 1, 5, 10

Weight & dimensions

Width 243.8 mm
Depth 243.8 mm

General

Brand MSI
Manufacturer part number PRO B760M-A WIFI

Ungrouped

Gtin 4711377059572

Description

PRO B790M-A WIFI
PRO B760M-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
