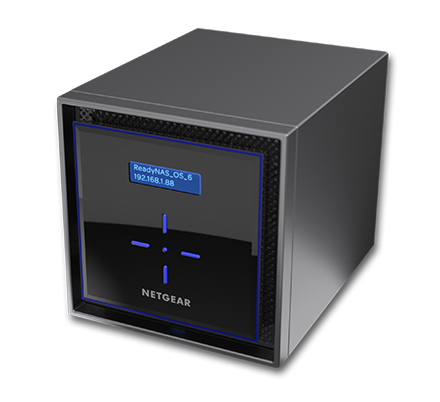

NETGEAR ReadyNAS 424 NAS Desktop Intel Atom® C3338 2 GB DDR4 16 TB HDD ReadyNAS OS Black
Art. no. NETGEAR-RN424E4-100NES
On request
NETGEAR ReadyNAS 424, NAS, Desktop, Intel Atom®, C3338, 2 GB, DDR4
Specifications
Data transmission
| Jumbo frames support | Yes |
|---|
Design
| Chassis type | Desktop |
|---|---|
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| LED indicators | Yes |
Features
| Number of users | 8192 user(s) |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR4 |
| Product colour | Black |
| Cooling type | Active |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Hom… |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2012 R2 |
| Certification | FCC, CE, VCCI |
| Type | NAS |
| Processor cores | 2 |
| Operating system installed | ReadyNAS OS |
Logistics data
| Harmonized System (HS) code | 84714100 |
|---|
Memory
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
|---|
Network
| iSCSI support | Yes |
|---|---|
| Link aggregation | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
Other features
| Built-in display | Yes |
|---|---|
| Digital Living Network Alliance (DLNA) certified | Yes |
| Display type | LCD |
| Processor ARK ID | 97928 |
| Weight | 3.95 kg |
Ports & interfaces
| eSATA ports quantity | 1 |
|---|---|
| USB port | Yes |
Power
| Power consumption (sleep) | 4.4 W |
|---|---|
| Power supply unit (PSU) capacity | 90 W |
| Thermal Design Power (TDP) | 9 W |
| Power consumption (typical) | 43.09 W |
| Power consumption (off) | 0.4 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Processor
| Conflict-Free processor | Yes |
|---|---|
| CPU configuration (max) | 1 |
| ECC supported by processor | Yes |
| Maximum internal memory supported by processor | 64 GB |
| On-board graphics card model | Not available |
| PCI Express configurations | 1x2, 1x4, 1x8 |
| PCI Express slots version | 3.0 |
| Processor boost frequency | 2.2 GHz |
| Processor cache | 4 MB |
| Processor code | SR36E |
| Processor codename | Denverton |
| Processor family | Intel Atom® |
| Processor lithography | 14 nm |
| Processor model | C3338 |
| Processor operating modes | 64-bit |
| Processor package size | 34 x 28 mm |
| Processor threads | 2 |
| Stepping | B0 |
| Tcase | 89 °C |
| Tjunction | 100 °C |
| Processor manufacturer | Intel |
| Processor socket | BGA 1310 |
| Processor frequency | 1.5 GHz |
Processor special features
| Embedded options available | Yes |
|---|---|
| Execute Disable Bit | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® OS Guard | Yes |
| Intel QuickAssist Technology | No |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel® Secure Key | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Maximum number of PCI Express lanes | 10 |
| Memory channels supported by processor | Single |
| Memory types supported by processor | DDR3L, DDR4-SDRAM |
Protocols
| DHCP client | Yes |
|---|

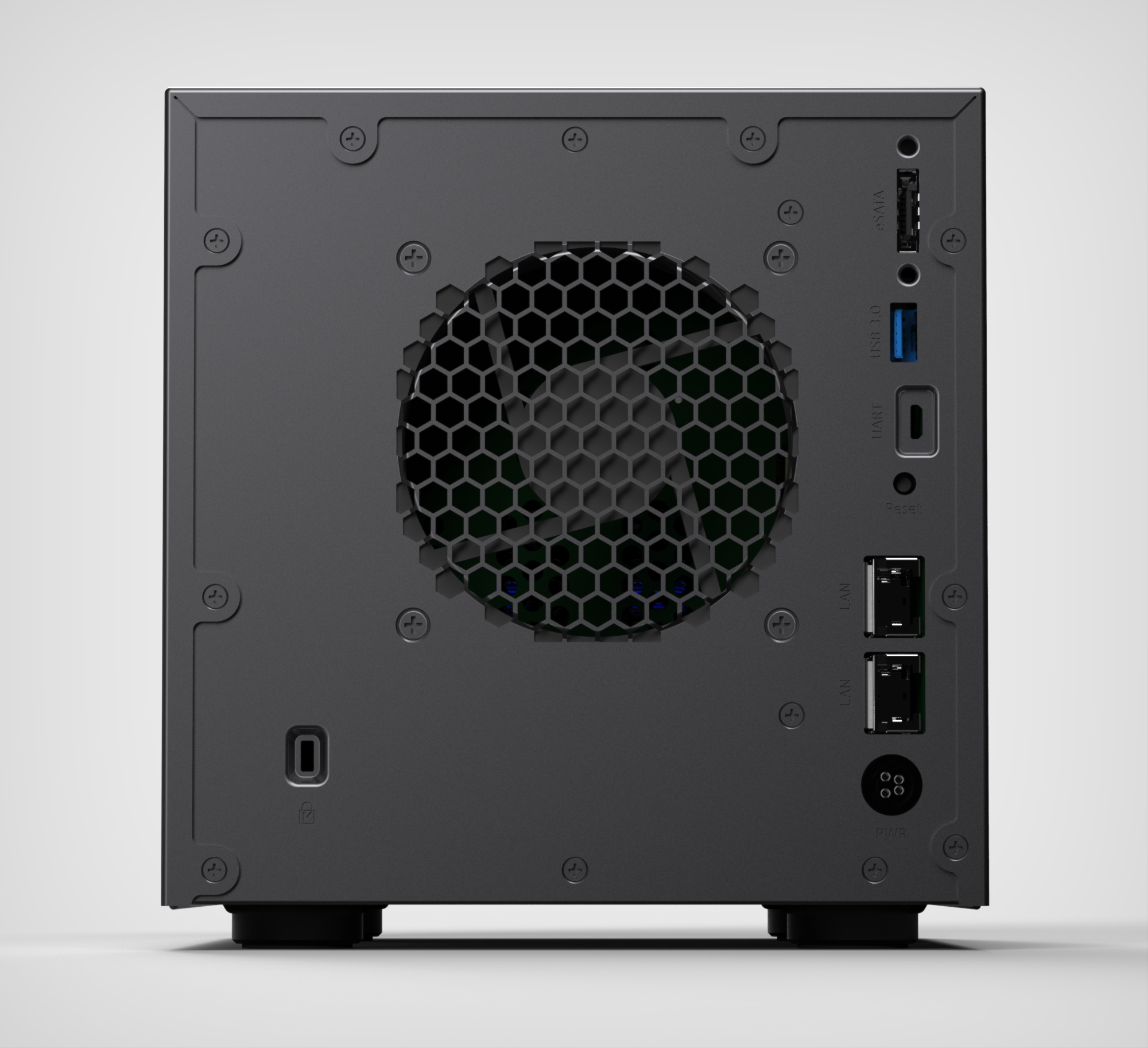

Rear panel I/O ports
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Software
| Operating system version | 6 |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Storage
| Hot-swap drive bays | Yes |
|---|---|
| Installed storage drive type | HDD |
| Number of storage drives installed | 4 |
| Storage drive capacity | 4 TB |
| Storage drive size | 2.5/3.5" |
| Storage drives installed | Yes |
| Total installed storage capacity | 16 TB |
Storage controllers
| Number of storage drives supported | 4 |
|---|---|
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Supported storage drive types | HDD & SSD |
Sustainability
| Compliance certificates | RoHS |
|---|
System requirements
| Browser supported | Microsoft Internet Explorer 9+, Microsoft Edge, Mozilla Firefox 14+, Google Chrome 20+, Apple Safari 5+ |
|---|---|
| Mac compatibility | Yes |
Weight & dimensions
| Width | 185 mm |
|---|---|
| Depth | 239 mm |
| Height | 194 mm |
General
| Brand | NETGEAR |
|---|---|
| Manufacturer part number | RN424E4-100NES |
Performance
| Backup features | Cloud, iSCSI LUN |
|---|---|
| Backup function | Yes |
| Built-in UPnP AV media server | Yes |
| Device class | Small & Medium Business |
| Network Time Protocol (NTP) client | Yes |
Ungrouped
| Gtin | 0606449127805 |
|---|
Description
High-performance Business Data Storage
4 Bays with up to 40 TB total storage
ReadyNAS 424 enables all the features a smart and modern business is looking for in a single, compact solution: file storage, file sharing, automatic on-premise, off-premise or cloud backup and recovery and full data protection. ReadyNAS 424 is built around the next generation Intel Atom Processor C3338 (1.5 GHz, 2 core) for high levels of networking throughput enabling enterprise-grade file sharing and data backup for offices up to 40 employees.
File Sharing
These days, running a successful business often depends on successful file sharing—application data, virtual images, client files, email, all the digital files that make your business go. With ReadyNAS you finally have an advanced and easy-to use solution for centralizing, securing, and sharing those critical assets. Fasters processors mean more simultaneous users can access unified storage—across PC, Mac and Linux environments. Full Dropbox integration makes it easier than ever to sync your important files, photos or videos across all of your web-connected devices.
Backup
Industry’s most advanced data protection solution for SMB. Businesses depend on data – customer information, transaction records, pay roll, product development and marketing data. ReadyNAS helps businesses protect their data against physical and human errors, malicious attacks, and natural disasters. Business continuity is part of any business plan. Make ReadyNAS part of your business plan with a combination of backup solutions:
- ReadyDR – Block level replication for businesses
- ReadyNAS Replicate – File replication to any ReadyNAS anywhere
- Backup to cloud storage (Dropbox, Amazon)
Disaster Recovery
The custom-built ReadyNAS OS protects stored data with automatic RAID configuration, the continuous security of Unlimited Snapshots, and easy to manage Cloud Replication. By maintaining multiple copies of vital data through cloud replication, it makes it easy for you to move data off-site to protect against natural disasters and theft.
Virtualization
ReadyNAS is VMWare vSphere ESXi 6.0 certified for high-performance virtualized storage with workload-heavy VM support. Build your own Private Cloud for data compliance and privacy which might not be compatible with public cloud solutions.
