MSI MAG FORGE 100R Mid Tower Gaming 'Black, 2x 120mm ARGB PWM Fan, 1x 120mm Fan, 1-6 ARGB Hub, Mystic Light S…

Art. no. MSI-MAG FORGE 100R On request

MSI MAG FORGE 100R Mid Tower Gaming Computer Case 'Black, 2x 120mm ARGB PWM Fan, 1x 120mm Fan, 1-6 ARGB Hub, Mystic Light Sync, Tempered Glass Panel, ATX, mATX, mini-ITX', Midi Tower, PC, Black, Transparent, ATX, micro…

Trade price on request

Wholesale supply only

Specifications

Cooling

Front fans installed 2x 120 mm
Number of front fans supported (max) 3
Front fans diameters supported 120,140 mm
Front fans supported description addressable RGB LED
Rear fans installed 1x 120 mm
Number of rear fans supported (max) 1
Rear fans diameters supported 120 mm
Number of top fans supported (max) 2
Top fans diameters supported 120,140 mm
Liquid cooling capability Yes

Design

Illumination Yes
Illumination colour Multi
Material Tempered glass
Supported motherboard form factors ATX, micro ATX, Mini-ITX
Number of 3.5" bays 2
Number of 2.5" bays 3
Number of internal 3.5" bays 2
Number of expansion slots 7
Side window Yes
Suitable for Gaming
Illumination location Case fans
Tempered glass panel(s) Yes
Anti-dust filter Yes
Reset button Yes
On/off button Yes
LED indicators Yes
Maximum CPU cooler height 16 cm
Maximum graphics card length 33 cm
Maximum PSU length 20 cm

Features

Product colour Black, Transparent
Type PC

Logistics data

Harmonized System (HS) code 84733080

Other features

Weight 5.64 kg

Ports & interfaces

Audio input Yes
Audio output Yes

Power

Power supply location Bottom

Power supply

Power supply included No

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

Storage

Supported HDD sizes 2.5,3.5"
HDD/SSD combo cage Yes

Weight & dimensions

Width 210 mm
Depth 421 mm
Height 499 mm

General

Brand MSI
Manufacturer part number MAG FORGE 100R

Interface & form factor

Form factor Midi Tower

Ungrouped

Gtin 4719072676407

Description

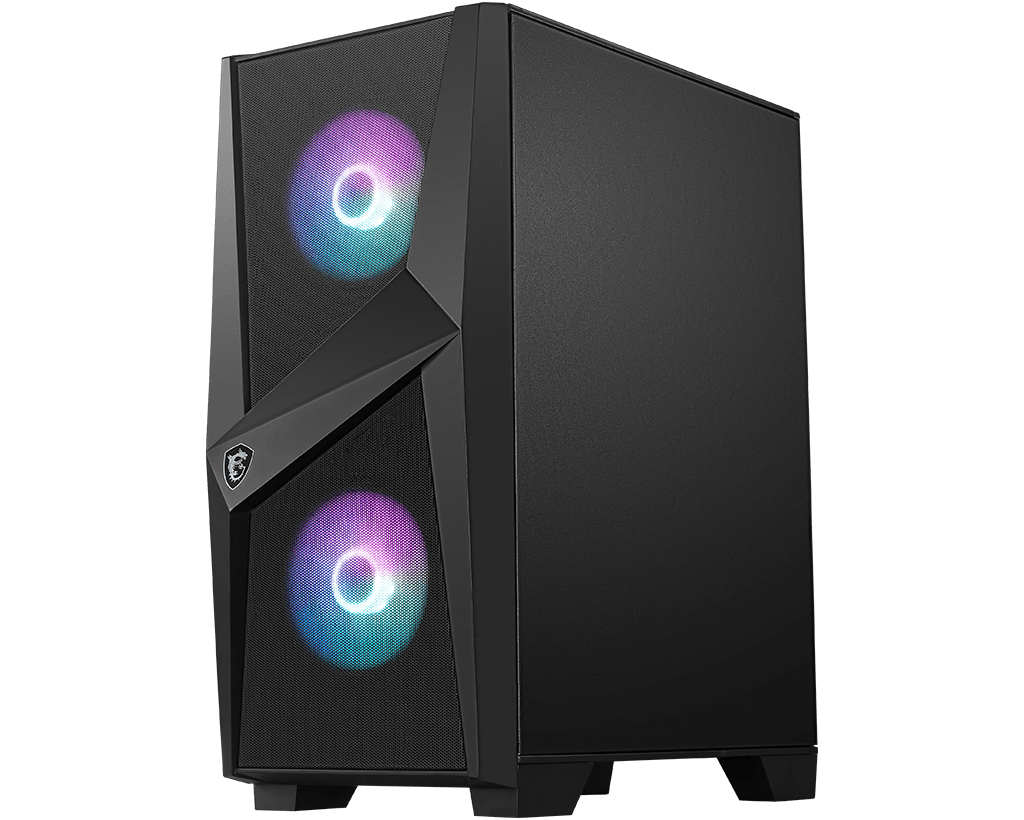

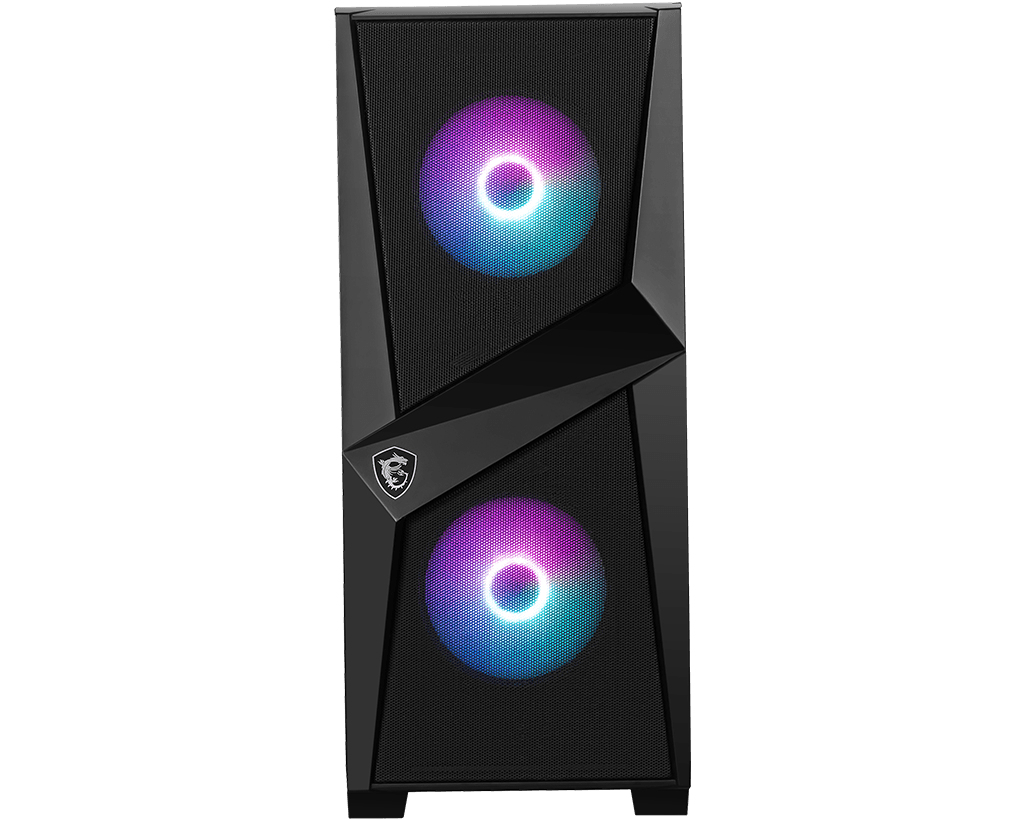

OPTIMIZED AIR FLOW
Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.

READY FOR OPTIMIZED MOTHERBOARD
Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.

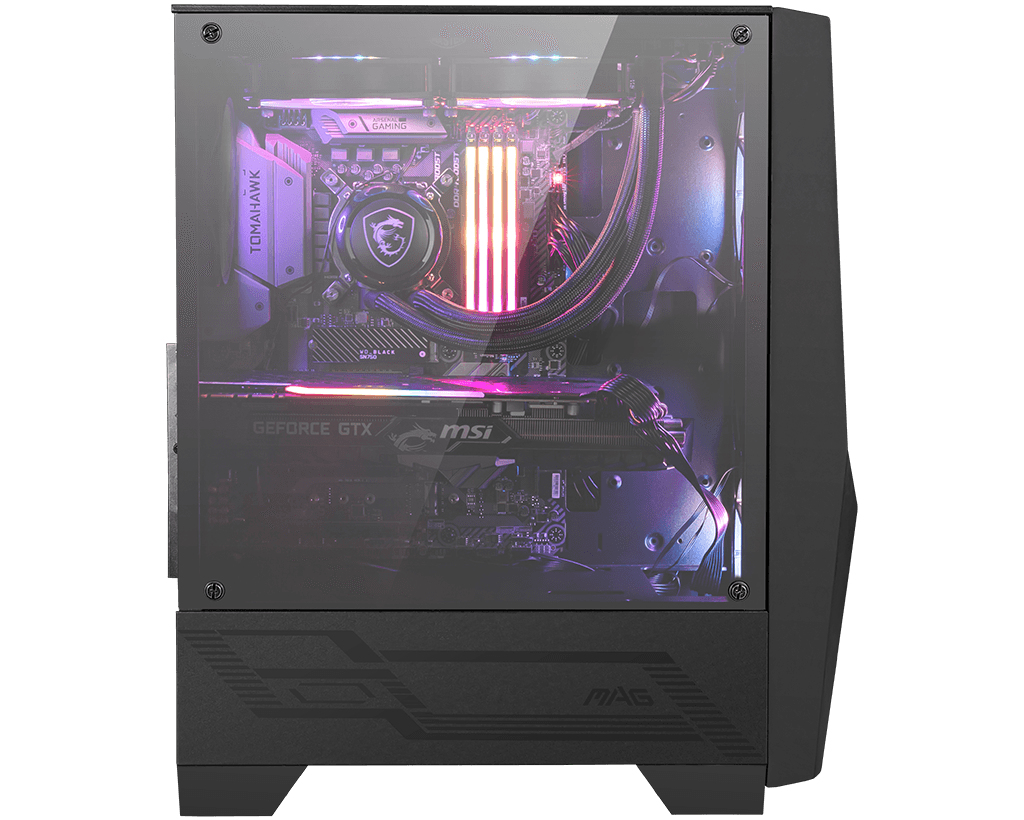

TOOL-LESS TEMPERED GLASS
The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.

The Forge 100 Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.

PERSONALIZE YOUR GAMING RIG
ustomizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build.

1 to 6 ARGB LED Control Board
User can intuitively control & switch 9 lighting effects through the LED switch button.

LED Switch Button
Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.
