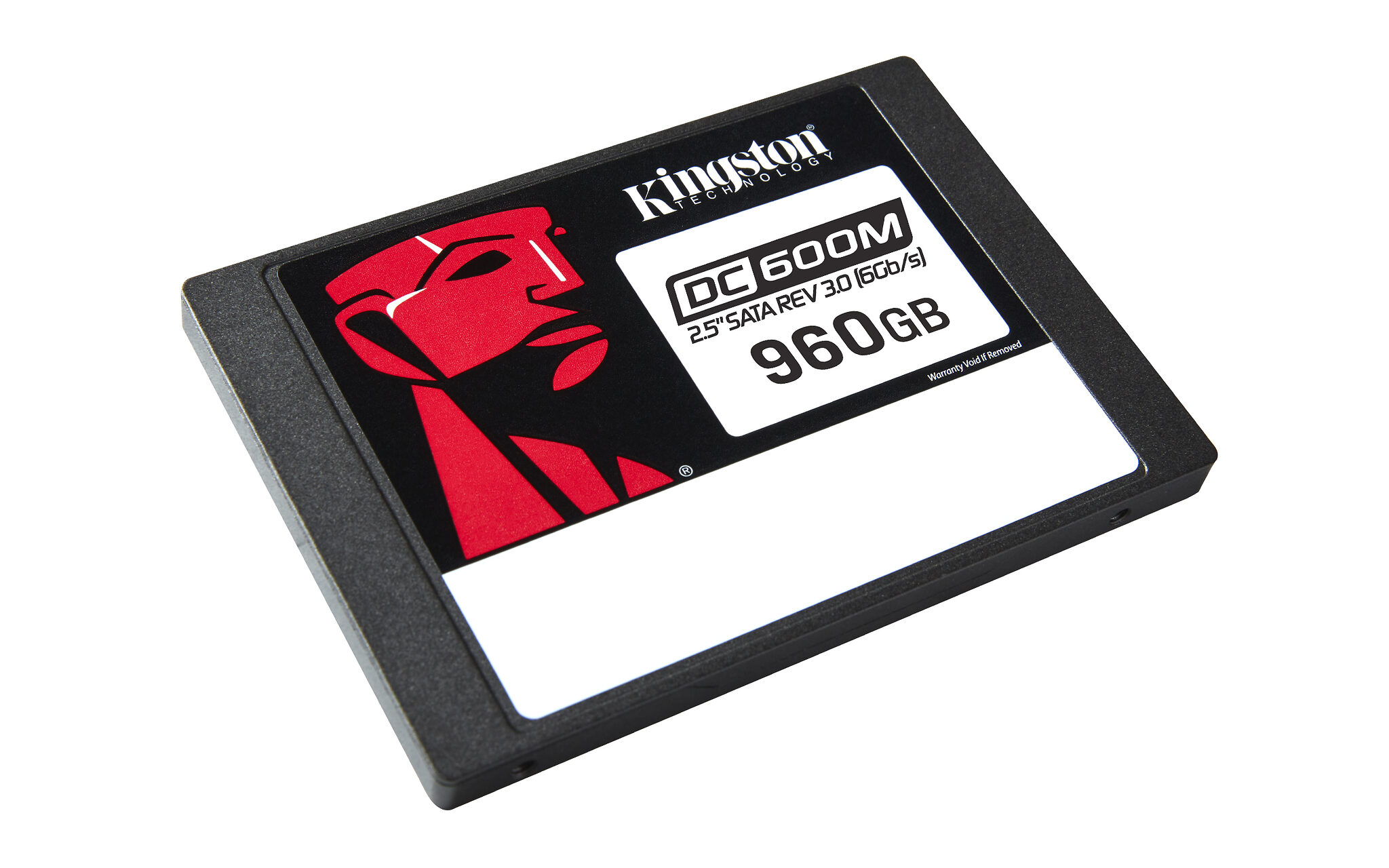

Kingston Technology 960G DC600M (Mixed-Use) 2.5” Enterprise SATA SSD
Art. no. KINGSTON-SEDC600M/960G
On request
Kingston Technology 960G DC600M (Mixed-Use) 2.5” Enterprise SATA SSD, 960 GB, 2.5", 560 MB/s, 6 Gbit/s
Specifications
Features
| Component for | Server/workstation |
|---|---|
| SSD capacity | 960 GB |
| SSD form factor | 2.5" |
| Memory type | 3D TLC NAND |
| Hardware encryption | No |
| Random read (4KB) | 94000 IOPS |
| Random write (4KB) | 65000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 1752 |
| Target workload | Mixed Use (MU) |
| Read latency | 200 µs |
| Write latency | 30 µs |
| Hot-Plug support | Yes |
| H/W PLP function | Yes |
| Use conditions | Server/Enterprise |
Logistics data
| Products per master (outer) case | 10 pc(s) |
|---|---|
| Master (outer) case width | 135.9 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case height | 69.8 mm |
| Master (outer) case gross weight | 989.98 g |
Memory
| Data transfer rate | 6 Gbit/s |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 20 G |
Other features
| Weight | 69 g |
|---|---|
| Country of origin | China, Taiwan |
Packaging data
| Package width | 129.5 mm |
|---|---|
| Package depth | 9.14 mm |
| Package height | 184.2 mm |
| Package weight | 91.2 g |
Power
| Power consumption (average) | 1.45 W |
|---|---|
| Power consumption (idle) | 1.3 W |
| Power consumption (write) | 3.6 W |
| Power consumption (read) | 1.6 W |
Weight & dimensions
| Width | 69.8 mm |
|---|---|
| Depth | 100.1 mm |
| Height | 7 mm |
General
| Brand | Kingston Technology |
|---|---|
| Manufacturer part number | SEDC600M/960G |
Performance
| Sequential read | 560 MB/s |
|---|---|
| Sequential write | 530 MB/s |
Interface & form factor
| Interface | Serial ATA III |
|---|
Ungrouped
| Gtin | 0740617334913 |
|---|
Description
Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers.
DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards.
Capacities available from 480GB–7.68TB* to meet your data storage requirements.
Designed for data center environments
Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.
Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.
Delivers excellent quality of service (QoS)*
Optimised performance predictability to meet
service-level agreements (SLAs).
AES 256-bit Encryption with DC600ME
Protect sensitive data with support for AES 256-bit hardware-based encryption and TCG Opal 2.0 security standards with DC600ME.
Capacities up to 7.68TB
Upgrade and manage storage with capacities up to 7.68TB.*
