TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE) TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE) TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE) TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)

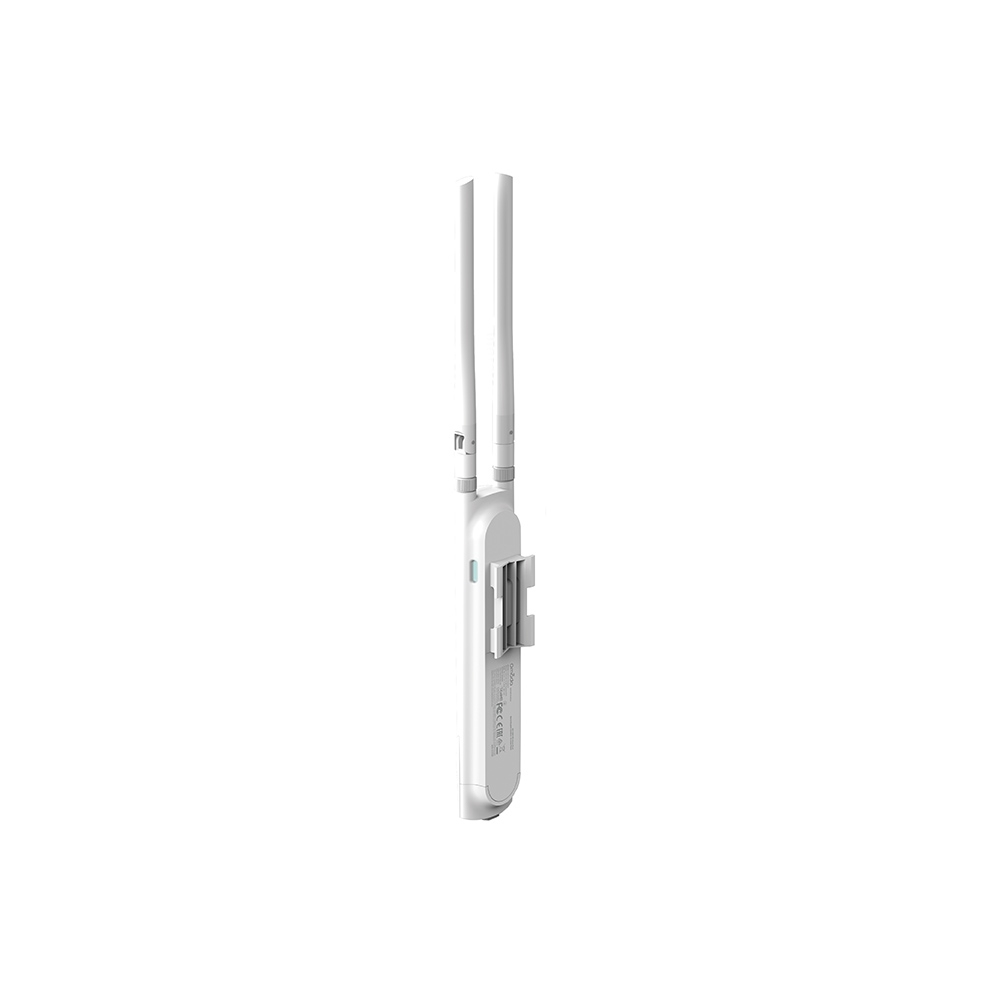

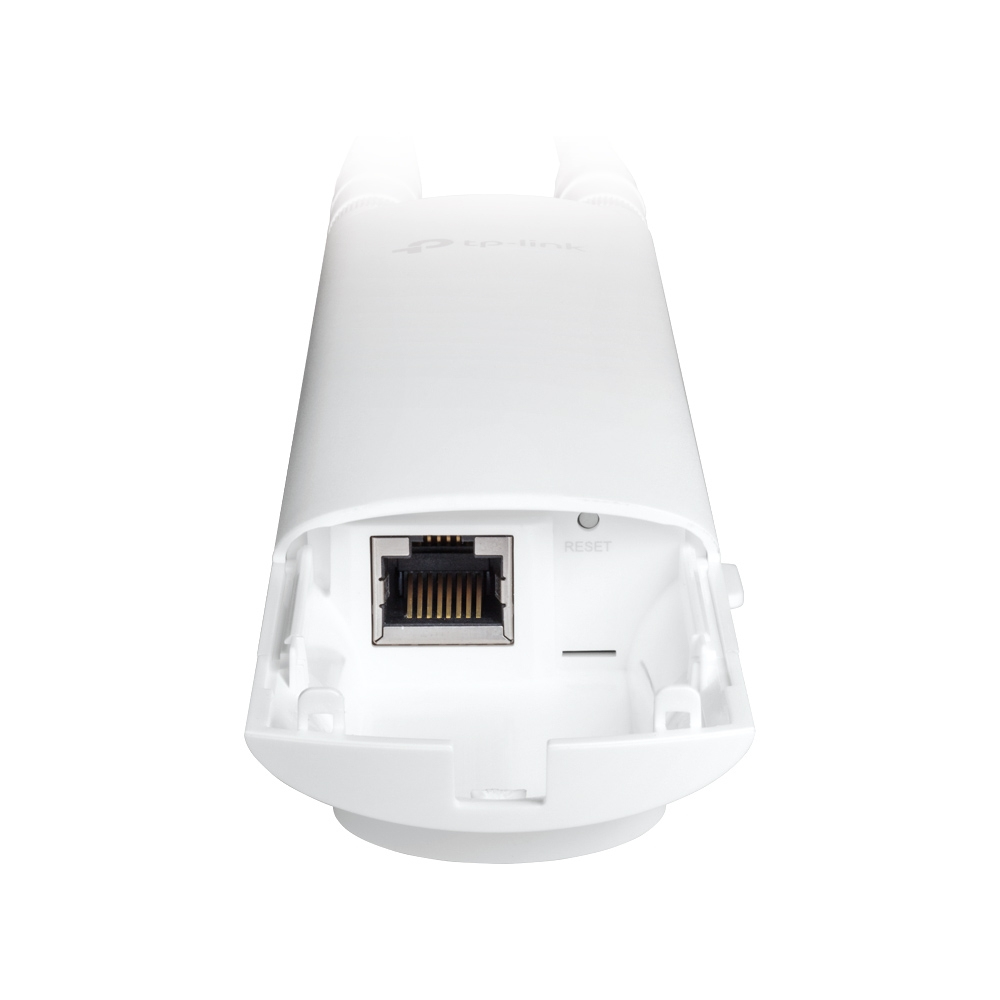

TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)

Art. no. TP-LINK-EAP225-OUTDOOR On request

TP-Link Omada EAP225-Outdoor, 2.4 GHz, 5 GHz, 1200 Mbit/s, 802.1x RADIUS, 10,100,1000 Mbit/s

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

Antenna

Antenna direction type Omni-directional
Antenna features Detachable antenna
Antenna gain level (max) 4 dBi
Antenna type External
Antennas quantity 2

Design

Placement Pole, Wall
Reset button Yes

Endurance

International Protection (IP) code IP65

Features

2.4 GHz Yes
5 GHz Yes
6 GHz No
Airtime Fairness (ATF) Yes
Band steering Yes
BeamForming Yes
Maximum data transfer rate 1200 Mbit/s
Maximum data transfer rate (2.4 GHz) 300 Mbit/s
Maximum data transfer rate (5 GHz) 867 Mbit/s
MIMO type Multi User MIMO
Transmitting power (CE) 27 dBm
Transmitting power (FCC) 22 dBm
Wi-Fi Multimedia (WMM)/(WME) Yes
Product colour White
Security algorithms 802.1x RADIUS

Logistics data

Harmonized System (HS) code 85176990

Management features

Syslog Yes
Quality of Service (QoS) support Yes
Web-based management Yes
MIMO Yes

Mouse

Frequency band 2.4 - 5 GHz

Network

Rate limiting Yes
Virtual LAN features VLAN mapping
VLAN support Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u

Operational conditions

Operating temperature (T-T) -30 - 70 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%

Other features

Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
AC adapter included Yes

Packaging content

Mounting kit Yes
Quick start guide Yes

Packaging data

Package width 140 mm
Package depth 270 mm
Package height 100 mm
Package weight 640 g
Quantity per pack 1 pc(s)

Power

Power over Ethernet (PoE) type supported Passive PoE
Power consumption (typical) 10.5 W
Output voltage 24 V

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Rear panel I/O ports

Ethernet LAN (RJ-45) ports 1

Security

Number of SSID supported 16
Service Set Identifier (SSID) features Multiple SSIDs
Access Control List (ACL) Yes
MAC address filtering Yes

Sustainability

Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance Yes

Weight & dimensions

Width 215 mm
Depth 46 mm
Height 27 mm

General

Brand TP-Link
Manufacturer part number EAP225-OUTDOOR

Ungrouped

Gtin 6935364083571

Description

Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.

Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
