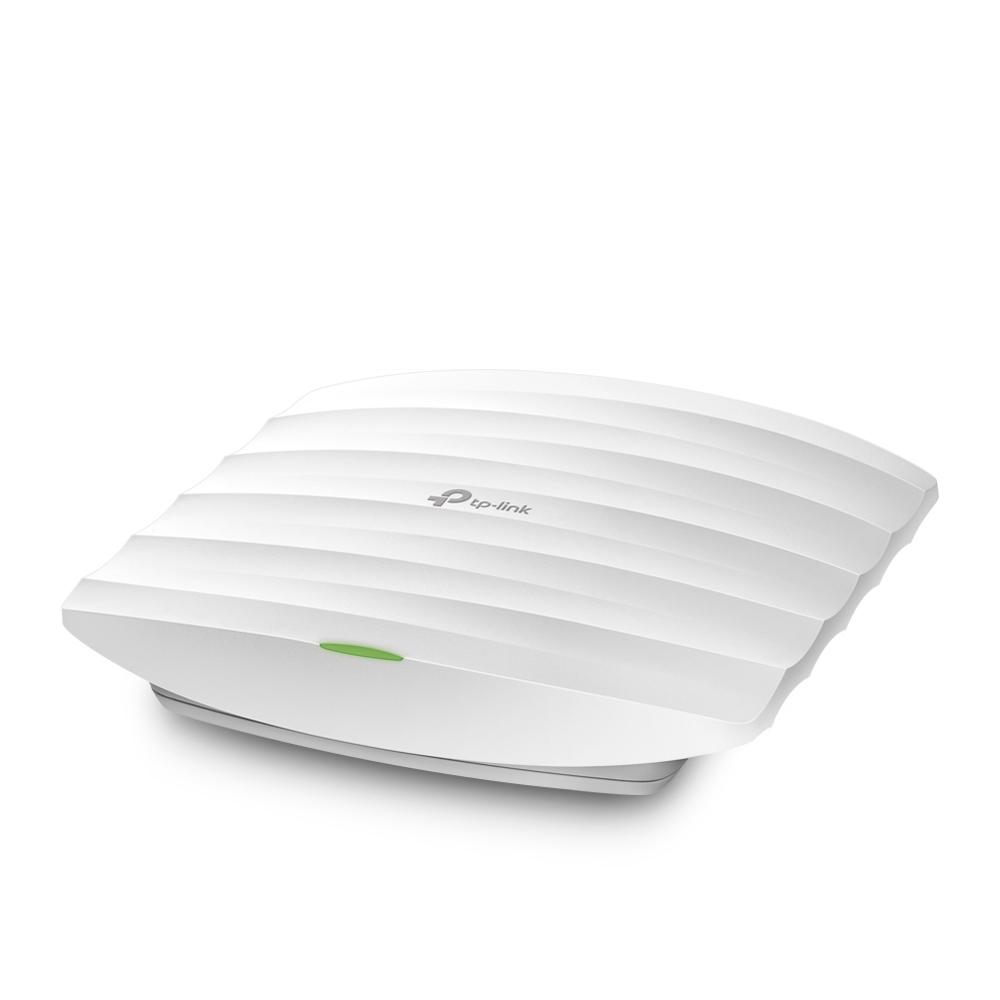

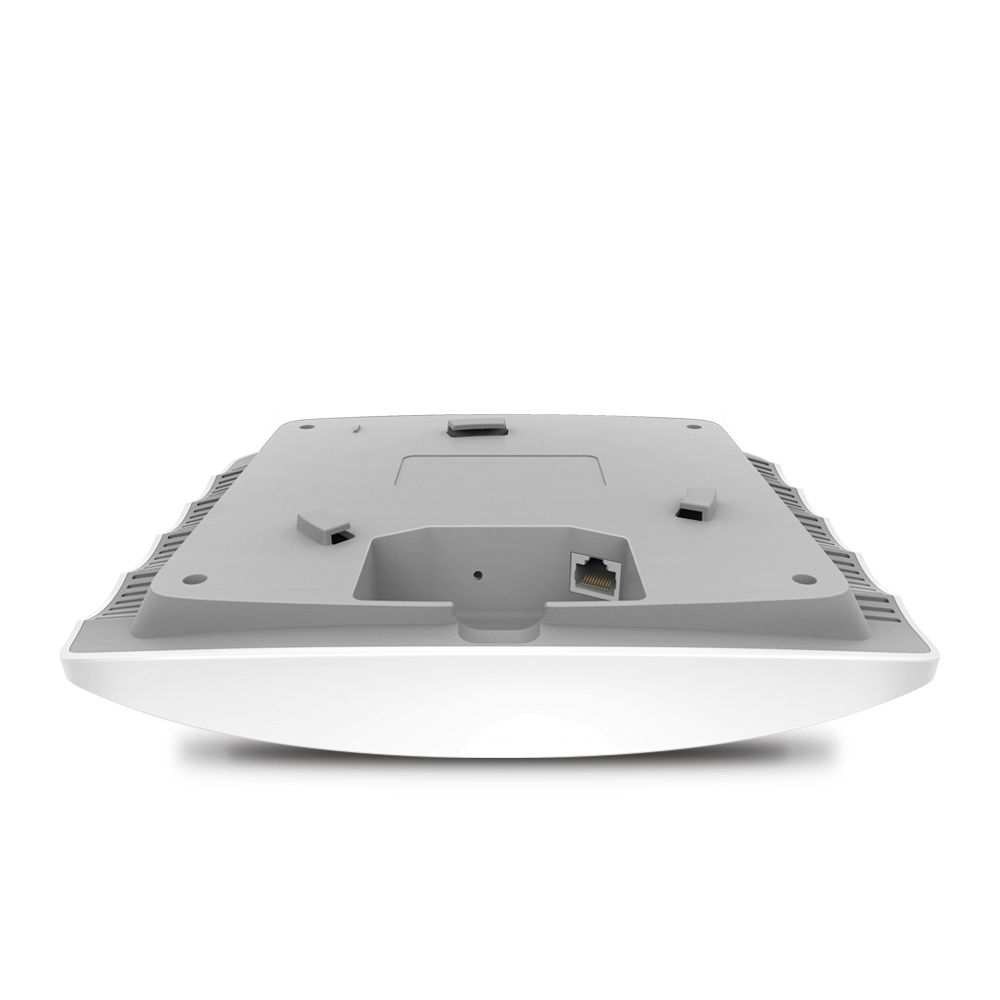

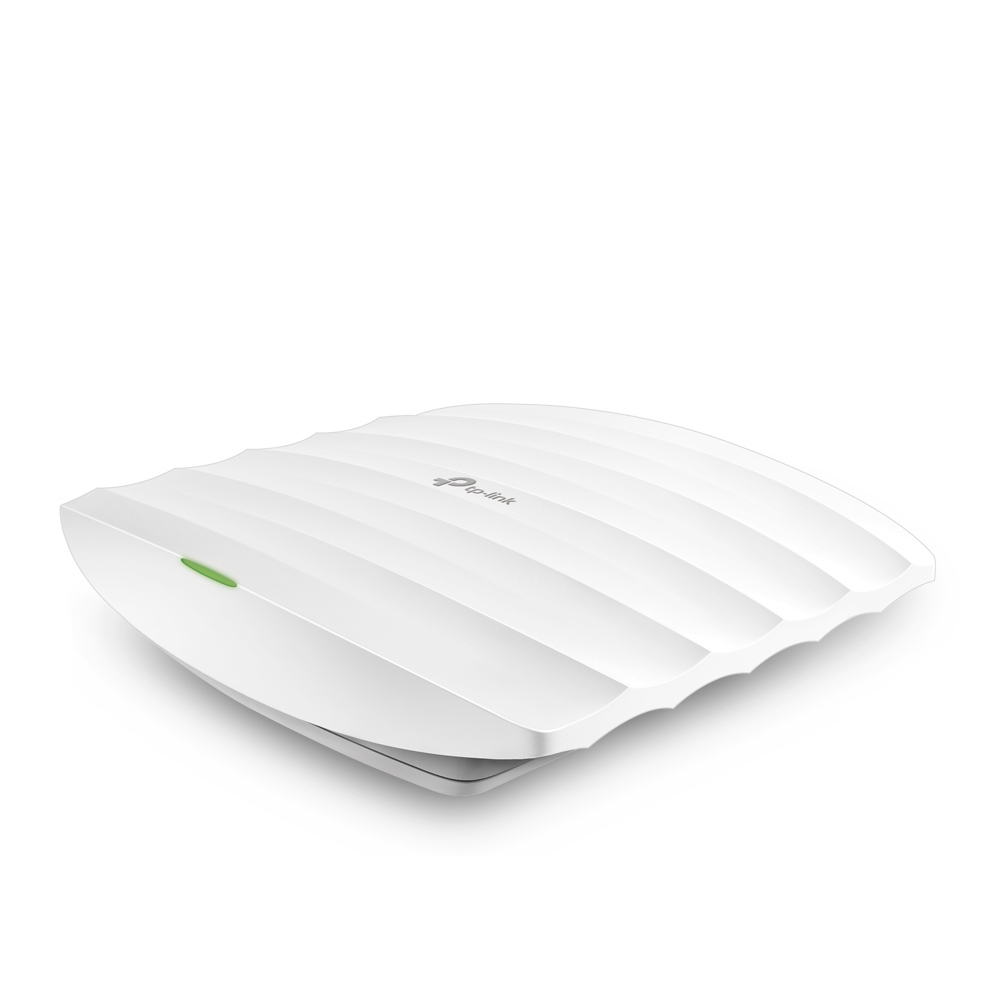

TP-Link Omada EAP225, 2.4 GHz, 5 GHz, 1350 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100,1000 Mbit/s
Antenna
| Antenna direction type | Omni-directional |
|---|---|
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 5 dBi |
| Antenna type | Internal |
| Antennas quantity | 5 |
Design
| Placement | Ceiling, Wall |
|---|---|
| On/off switch | Yes |
| Reset button | Yes |
| LED indicators | Power, WLAN |
Ergonomics
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
Features
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Airtime Fairness (ATF) | Yes |
| Band steering | Yes |
| BeamForming | Yes |
| Maximum data transfer rate | 1350 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| MIMO type | Multi User MIMO |
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 24 dBm |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Product colour | White |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Management features
| Syslog | Yes |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIMO | Yes |
Network
| Rate limiting | Yes |
|---|---|
| Virtual LAN features | VLAN mapping |
| VLAN support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Other features
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
|---|---|
| AC adapter included | Yes |
Packaging content
| Mounting kit | Yes |
|---|---|
| PoE adapter included | Yes |
| Quick start guide | Yes |
Packaging data
| Package width | 228 mm |
|---|---|
| Package depth | 340 mm |
| Package height | 65 mm |
| Package weight | 910 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
Ports & interfaces
| DC-in jack | Yes |
|---|
Power
| Power over Ethernet (PoE) type supported | Passive PoE |
|---|---|
| Power consumption (typical) | 10.15 W |
| Output voltage | 12 V |
| Output current | 1.5 A |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Security
| Number of SSID supported | 16 |
|---|---|
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
Sustainability
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Sustainability compliance | Yes |
WAN connection
| SIM card slot | No |
|---|
Weight & dimensions
| Width | 205.5 mm |
|---|---|
| Depth | 181.5 mm |
| Height | 37.1 mm |
General
| Brand | TP-Link |
|---|---|
| Manufacturer part number | EAP225 |
Ungrouped
| Gtin | 6935364096915 |
|---|
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
