be quiet! SilentWings 3 PWM Fan 14 cm Black
Art. no. BE-QUIET-BL067
On request
be quiet! SilentWings 3 PWM, Fan, 14 cm, 1000 RPM, 101.09 m³/h, Black
Specifications
Design
| Fan connector | 4-pin |
|---|---|
| Number of fans | 1 fan(s) |
| Fan diameter | 14 cm |
Features
| Product colour | Black |
|---|---|
| Mean time between failures (MTBF) | 300000 h |
| Certification | CE, WEEE, RU, Tüv |
| Type | Fan |
| Cable length | 0.5 m |
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|
Other features
| Voltage | 5 - 13.2 V |
|---|
Packaging content
| Screws included | Yes |
|---|
Packaging data
| Package width | 155.4 mm |
|---|---|
| Package depth | 32.1 mm |
| Package height | 205.3 mm |
| Package weight | 350 g |
Power
| Rated current | 0.3 A |
|---|---|
| Power consumption (typical) | 3.6 W |
Sustainability
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 140 mm |
|---|---|
| Depth | 140 mm |
| Height | 25 mm |
General
| Brand | be quiet! |
|---|---|
| Manufacturer part number | BL067 |
Performance
| Airflow | 101.09 m³/h |
|---|---|
| Maximum air pressure | 1.08 mmH2O |
| Maximum airflow | 59.5 cfm |
| Noise level (high speed) | 15.5 dB |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 1000 RPM |
| Suitable location | Computer case |
Ungrouped
| Gtin | 4260052184271 |
|---|
Description

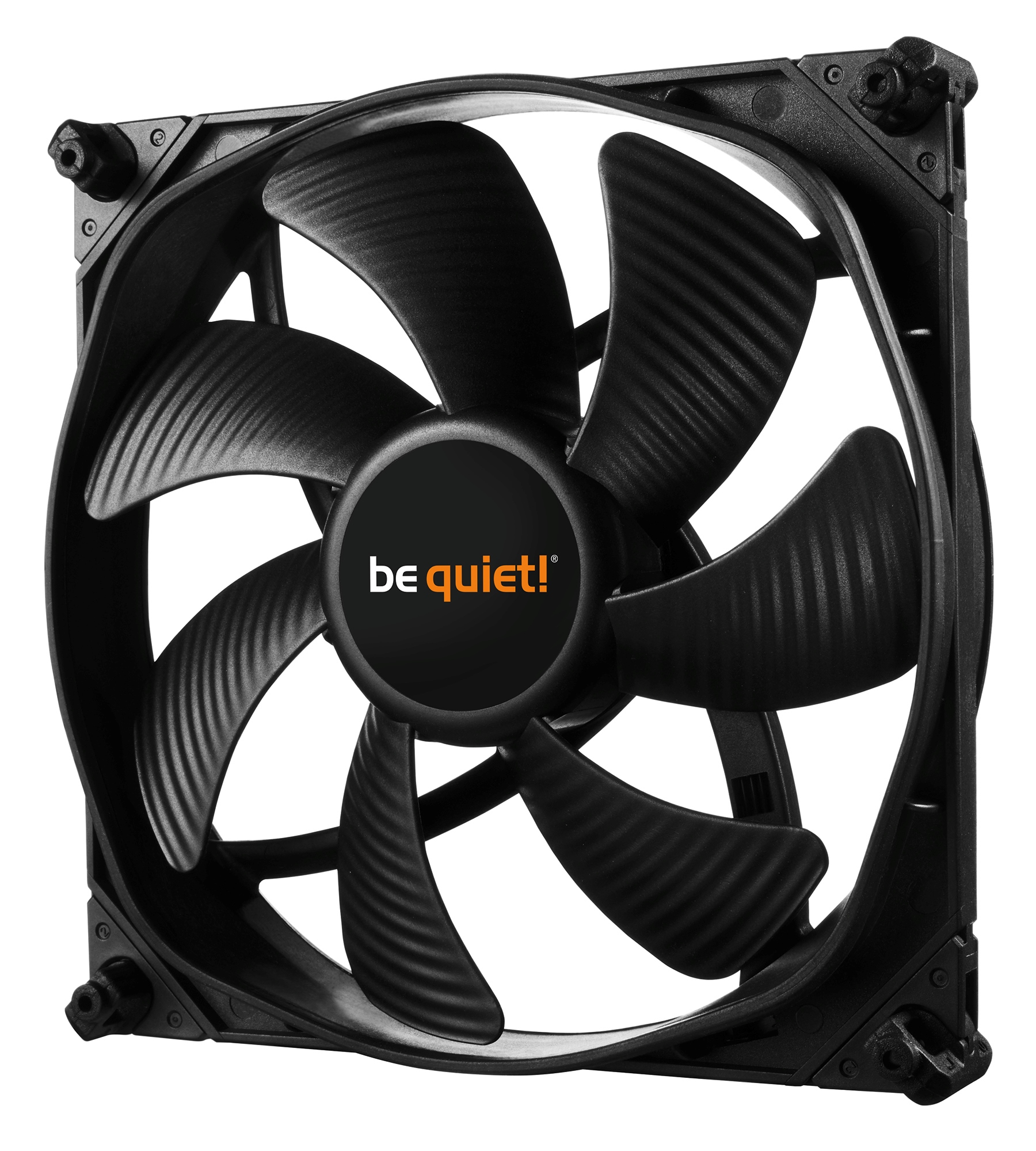

No Compromise Silence and Performance
be quiet! SilentWings® 3 140mm PWM stands for state-of-the-art technology, virtually inaudible operation and superior cooling. It meets all the requirements to be a perfect choice for heat sinks, PC cases and radiators.
- Virtually inaudible operation at max. 15.5dB(A)
- 6-pole fan motor with three phases giving very low power consumption and less vibration
- Advanced fluid-dynamic bearing enables super-long life span up to 300,000h

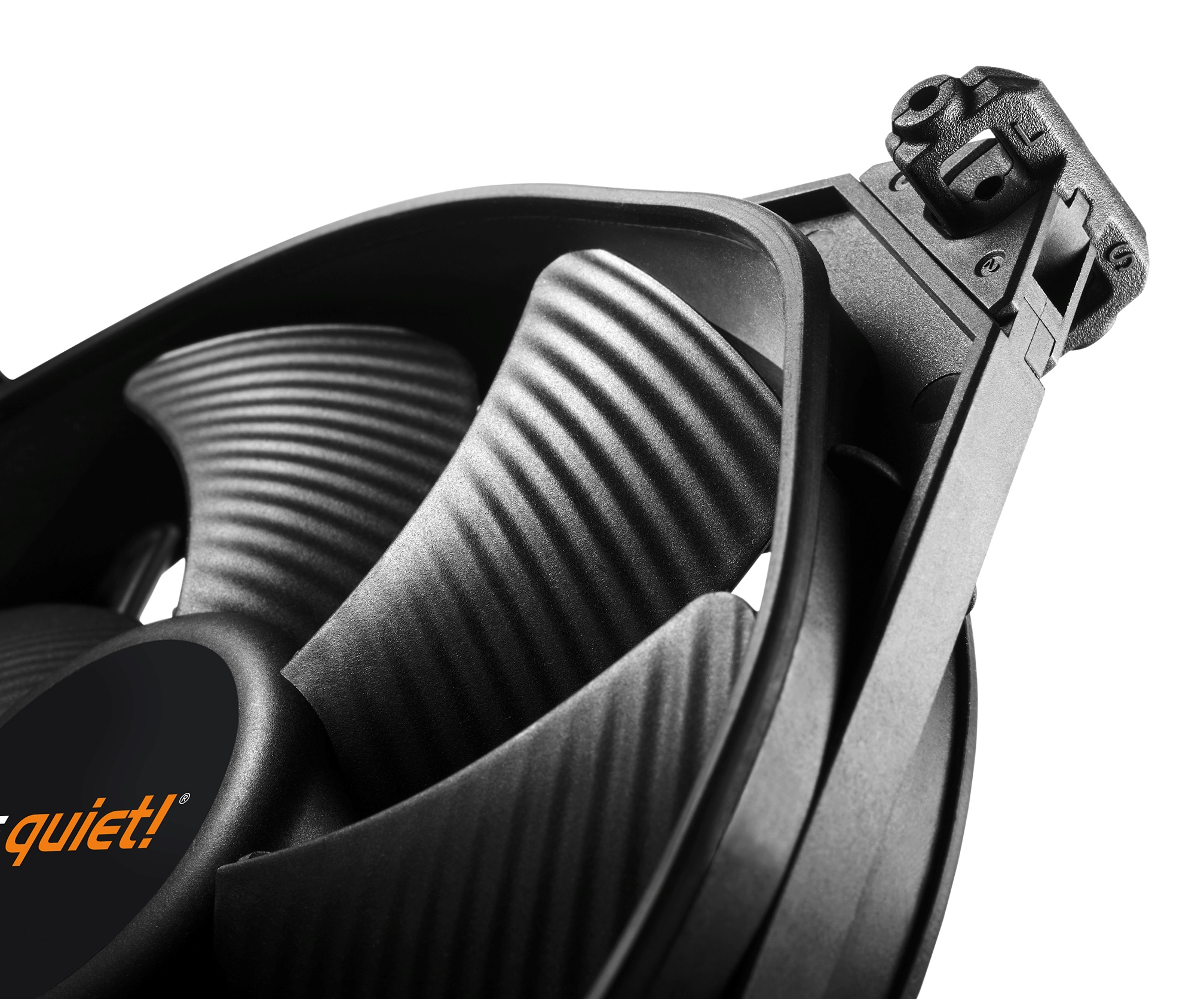

- Rubberized fan frame with funnel-shaped air inlets for extremely high air pressure
- Seven fan blades with optimized surface structures ensure excellent airflow

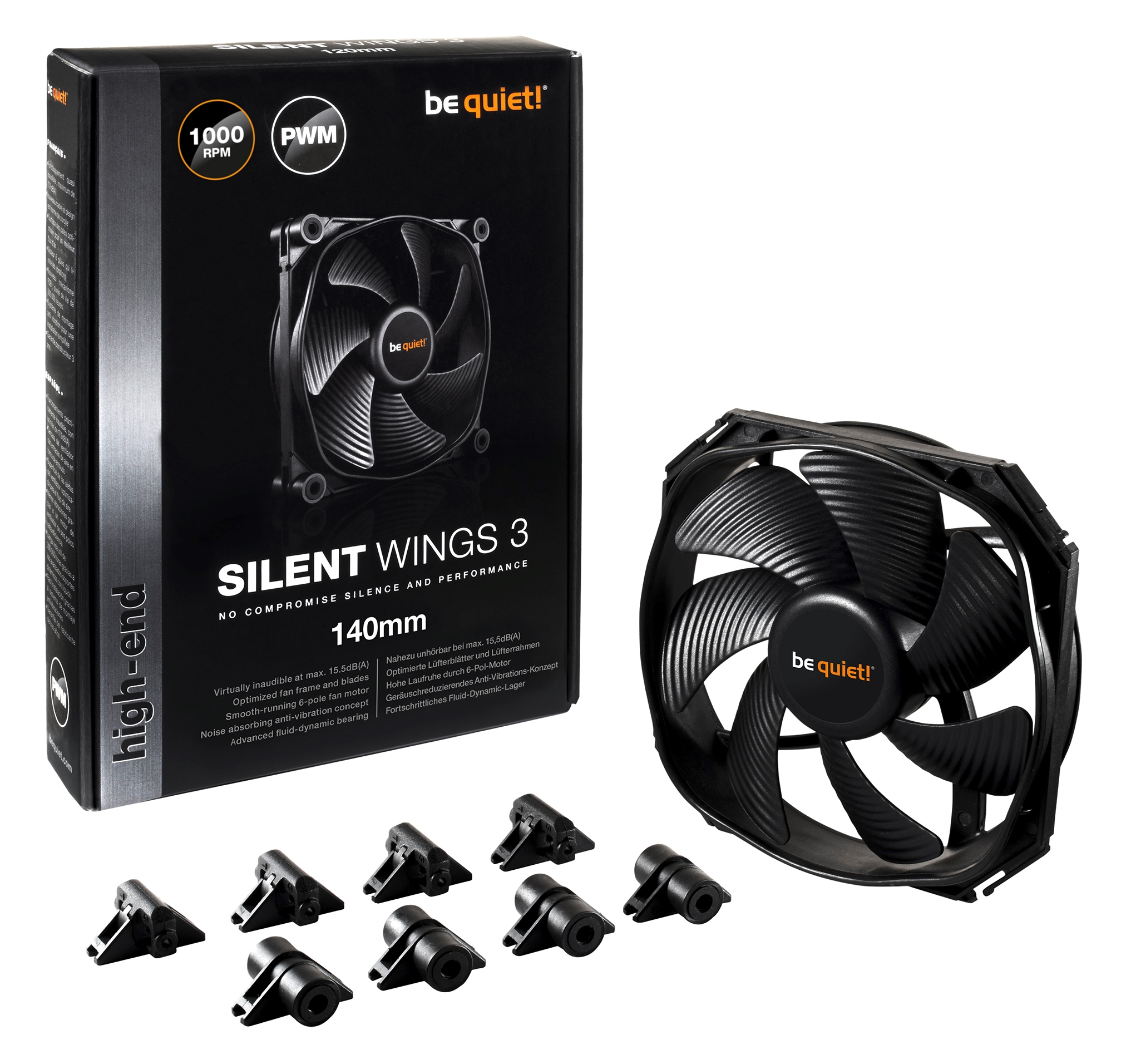

- Removable anti-vibration mountings reduce transmission of vibrations
- PWM controlled fan speed by the motherboard
- German product conception, design and quality control
- Three years manufacturer’s warranty
SilentWings® 3 PWM fans are your best choice for any application that requires the ultimate in quiet operation and uncompromised performance.
