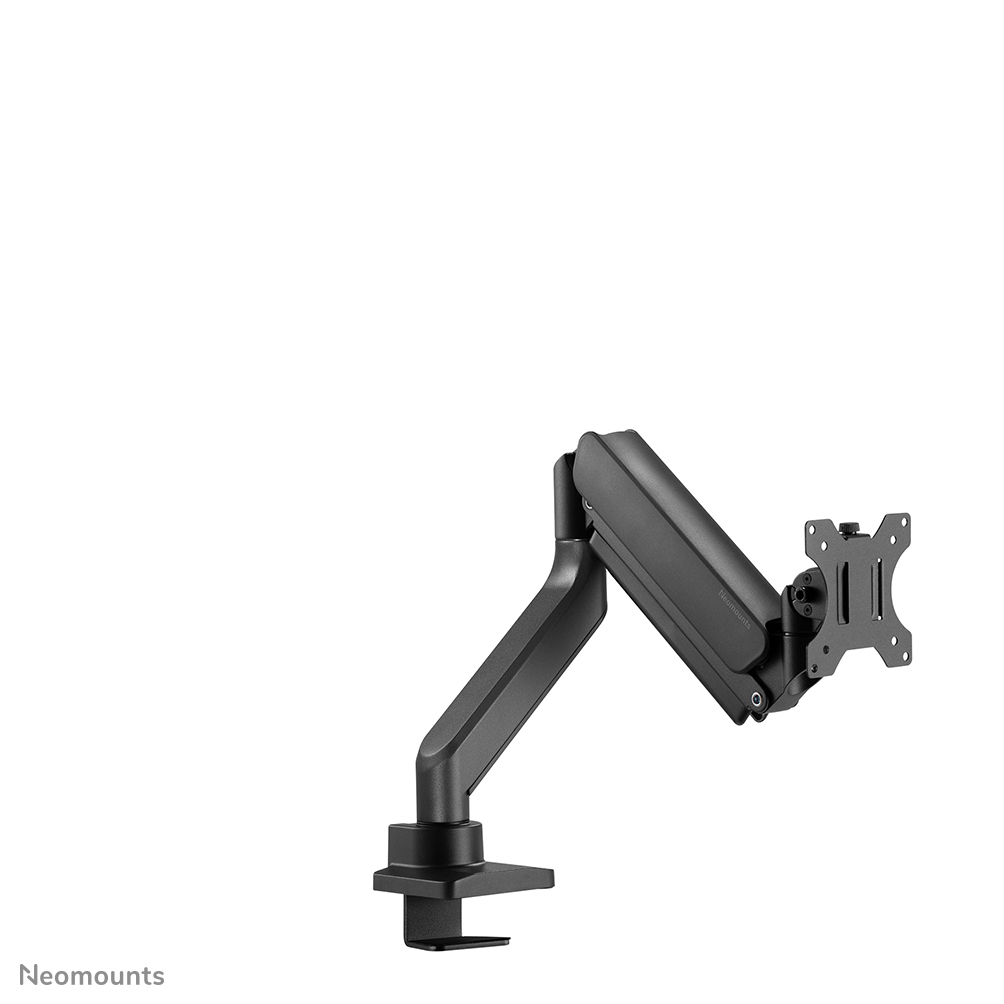

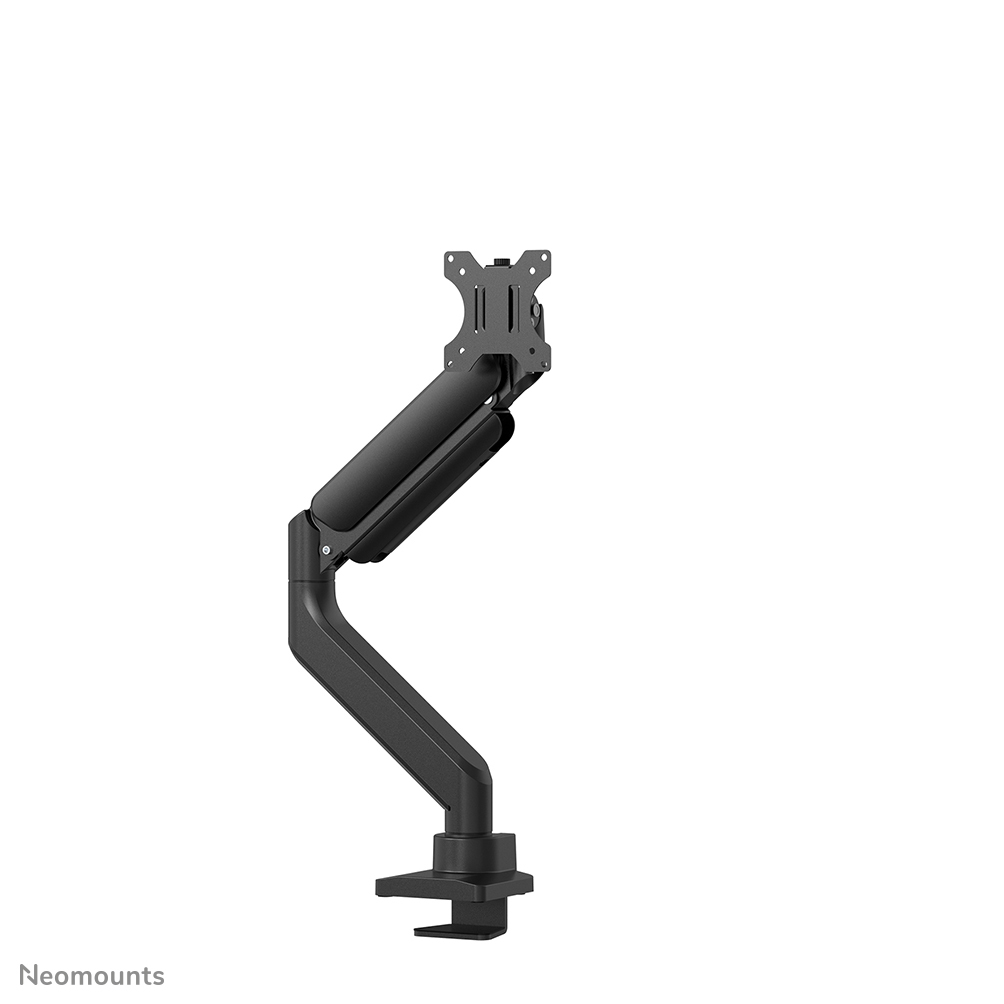

Neomounts DS70-450BL1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop Neomounts DS70-450BL1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop Neomounts DS70-450BL1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop Neomounts DS70-450BL1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop

Neomounts DS70-450BL1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop

Art. no. NEOMOUNT-DS70-450BL1 On request

Neomounts DS70-450BL1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop, Clamp/Grommet, 15 kg, 43.2 cm (17"), 106.7 cm (42"), 100 x 100 mm, Black

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

Design

Housing material Steel
Cable management Yes

Ergonomics

Adjustable depth Yes
Angle of rotation 360°
Depth adjustment range 54 - 511 mm
Height adjustment range 261 - 555 mm
Height adjustment type Gas spring
Rotating Yes
Swivel angle 180°
Width adjustment 92 cm
Panel mounting interface 100 x 100,75 x 75 mm
Height adjustment Yes
Tilt adjustment Yes
Tilt angle range -45 - 45°
Pivot angle -180 - 180°
Swivelling Yes
Swivel angle range -90 - 90°

Features

Product colour Black

Logistics data

Master (outer) case net weight 18.4 kg
Products per pallet (EU) 64 pc(s)
Harmonized System (HS) code 7326909890
Products per master (outer) case 4 pc(s)
Master (outer) case width 460 mm
Master (outer) case length 275 mm
Master (outer) case height 580 mm
Master (outer) case gross weight 20.5 kg
Warranty period 5 year(s)

Mounting

Desk thickness (max) 4.5 cm
Desk thickness (min) 1 cm
Distance to the wall (max) 56.8 cm
Distance to the wall (min) 10.8 cm
Maximum screen size 106.7 cm (42")
Maximum VESA mount 100 x 100 mm
Maximum weight capacity 15 kg
Maximum weight capacity (per curved/ultra-wide display) 11 kg
Maximum weight capacity (per display) 15 kg
Minimum screen size 43.2 cm (17")
Minimum VESA mount 75 x 75 mm
Mounting Clamp/Grommet
Mounting type Desk
Number of displays supported 1

Other features

Minimum weight 1 kg
Width adjustment range 0 - 920 mm
Weight 3.98 kg
Country of origin China
Doesn't contain Plastic

Packaging content

Mounting kit Yes

Packaging data

Package net weight 5.4 kg
Package width 280 mm
Package depth 127 mm
Package height 445 mm
Package weight 5.1 kg

Weight & dimensions

Width 120 mm
Depth 568 mm
Height 653 mm

General

Brand Neomounts
Manufacturer part number DS70-450BL1

Ungrouped

Gtin 8717371449469

Description

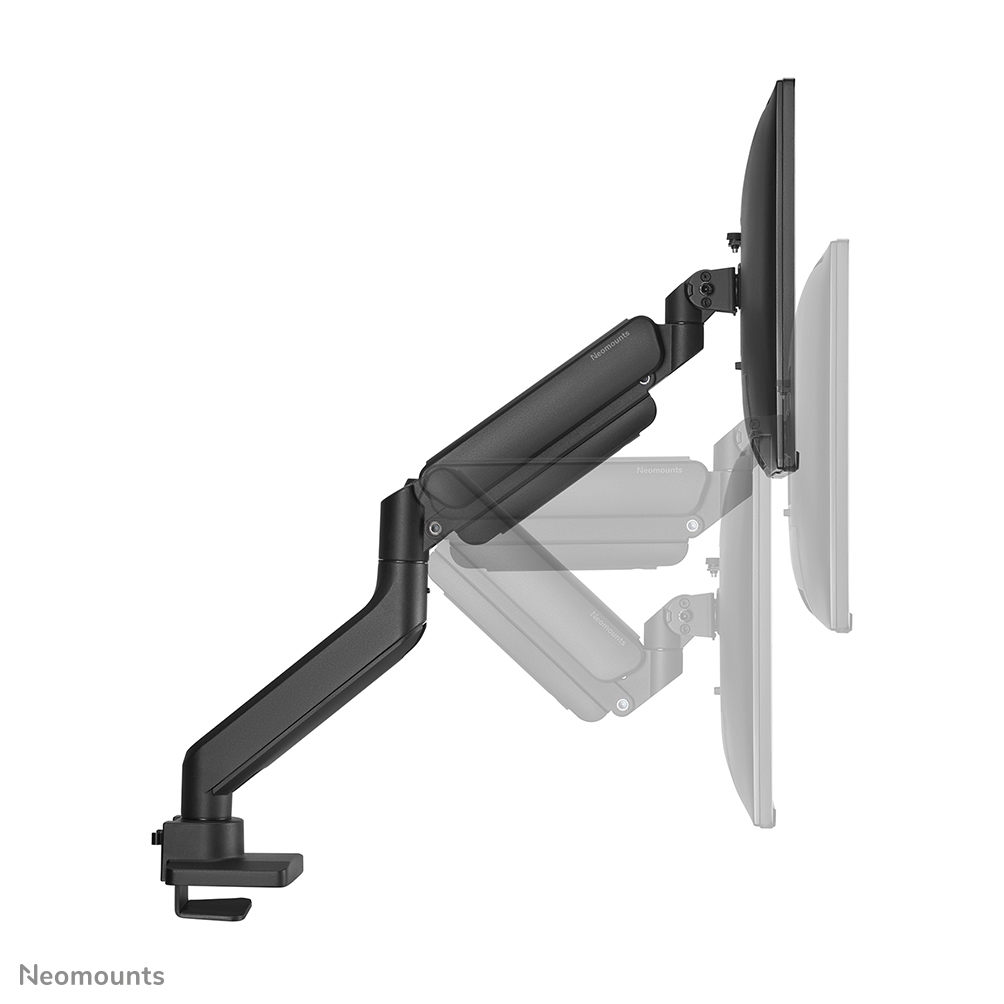

The Neomounts DS70-450BL1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.

The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.

For wall installation, the AWL75-450BL wall adapter is optionally available.
