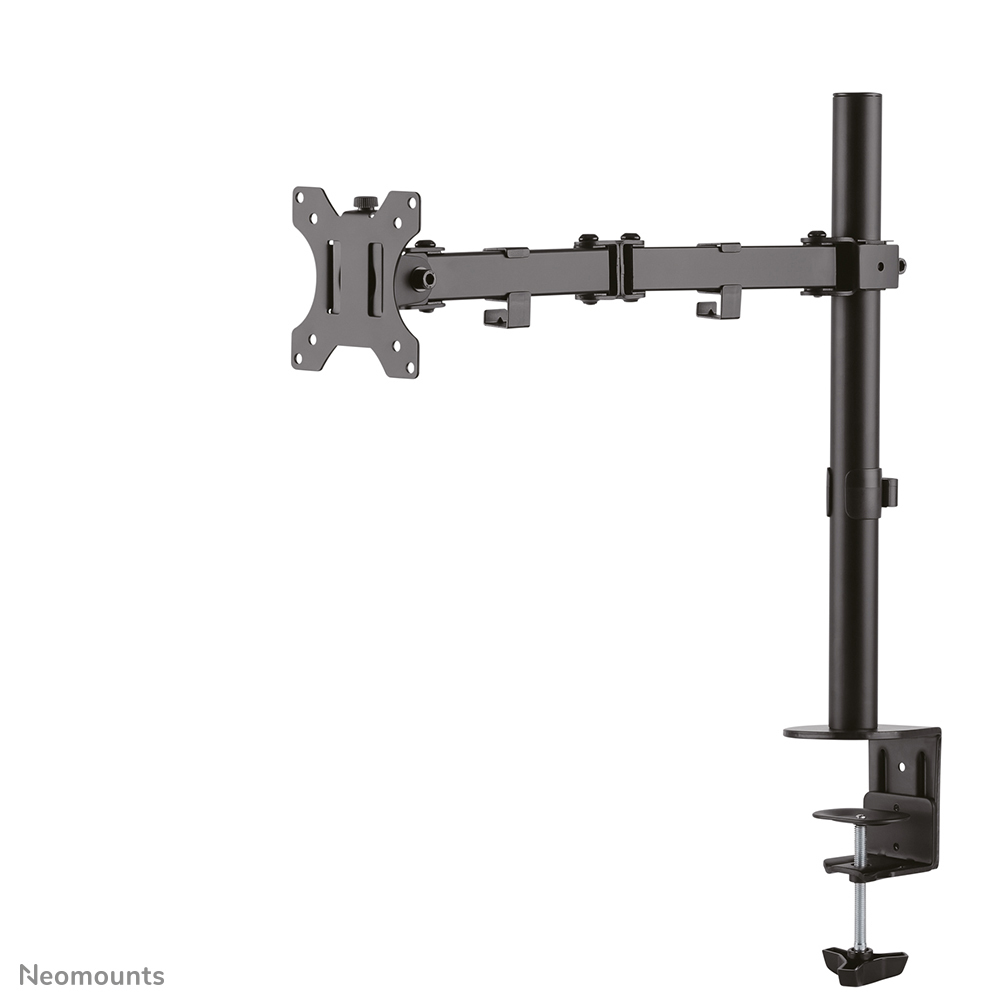

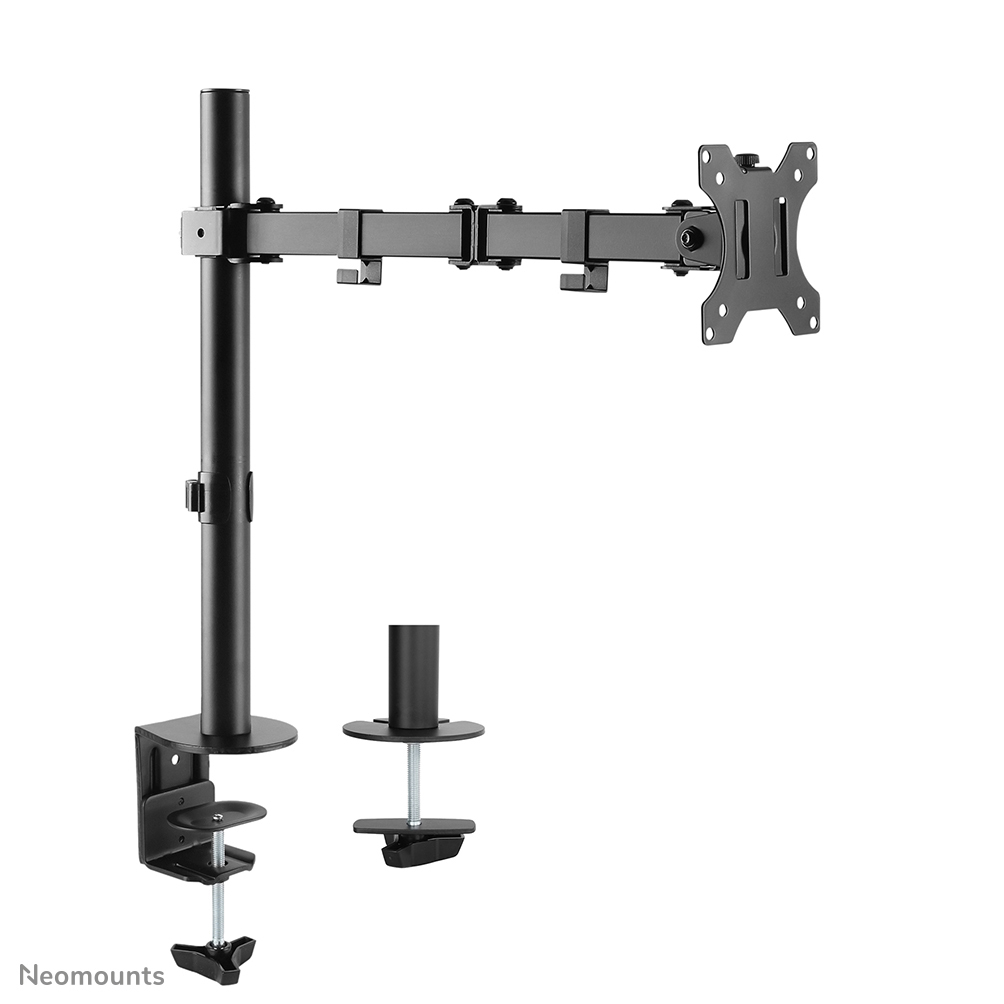

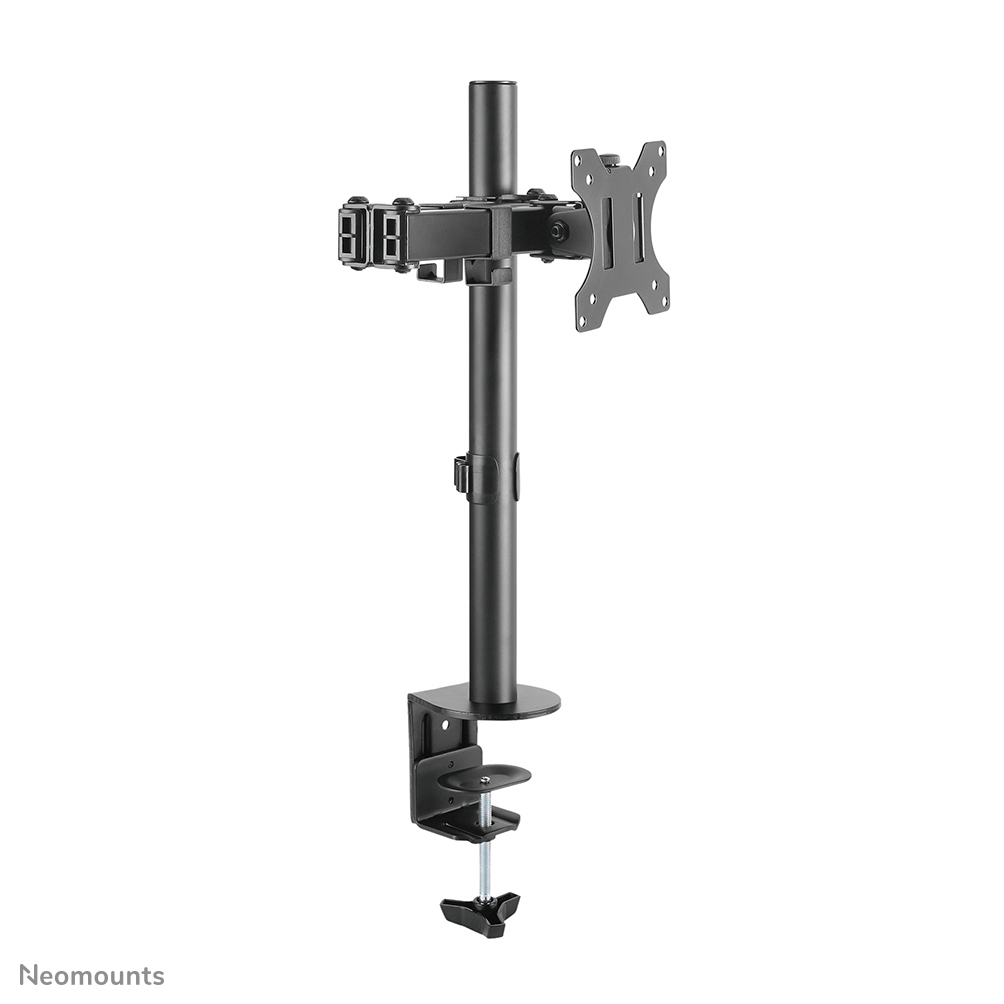

Neomounts FPMA-D550BLACK Monitor arm 10-32", Clamp/Grommet, 8 kg, 25.4 cm (10"), 81.3 cm (32"), 100 x 100 mm, Black
Design
| Housing material | Steel |
|---|---|
| Cable management | Yes |
Ergonomics
| Adjustable depth | Yes |
|---|---|
| Angle of rotation | 360° |
| Depth adjustment range | 40 - 460 mm |
| Height adjustment range | 0 - 440 mm |
| Swivel angle | 180° |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Height adjustment | Yes |
| Tilt angle range | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | 0 - 180° |
Features
| Product colour | Black |
|---|
Logistics data
| Master (outer) case net weight | 2.8 kg |
|---|---|
| Products per pallet (EU) | 96 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case height | 505 mm |
| Master (outer) case gross weight | 15.2 kg |
Mounting
| Desk thickness (max) | 8.8 cm |
|---|---|
| Desk thickness (min) | 1 cm |
| Distance to the wall (max) | 46 cm |
| Distance to the wall (min) | 4 cm |
| Maximum screen size | 81.3 cm (32") |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 25.4 cm (10") |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
Other features
| Weight | 3.32 kg |
|---|---|
| Country of origin | China |
Packaging data
| Package width | 180 mm |
|---|---|
| Package depth | 120 mm |
| Package height | 489 mm |
| Package weight | 3.8 kg |
Weight & dimensions
| Depth | 40 mm |
|---|---|
| Height | 548 mm |
General
| Brand | Neomounts |
|---|---|
| Manufacturer part number | FPMA-D550BLACK |
Ungrouped
| Gtin | 8717371446390 |
|---|
The Neomounts desk mount, model FPMA-D550BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts' versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 46 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D550BLACK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
