D-Link DGE-528T, Internal, Wired, PCI, Ethernet, 2000 Mbit/s, Green
Design
| Internal | Yes |
|---|---|
| LED indicators | Yes |
Features
| Maximum data transfer rate | 2000 Mbit/s |
|---|---|
| Product colour | Green |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64,… |
| Certification | FCC Class B, CE, ICES-003 |
Keyboard
| Connectivity technology | Wired |
|---|
Logistics data
| Master (outer) cases per pallet (air) | 36 pc(s) |
|---|---|
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 344.5 kg |
| Pallet gross weight (sea) | 344.5 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 193.5 cm |
| Pallet height (sea) | 193.5 cm |
| Products per pallet (air) | 1440 pc(s) |
| Products per pallet (sea) | 1440 pc(s) |
| Products per shipping (inner) case | 40 pc(s) |
| Shipping (inner) case gross weight | 8.98 kg |
| Shipping (inner) case height | 43.5 cm |
| Shipping (inner) case length | 39.5 cm |
| Shipping (inner) case net weight | 7.6 kg |
| Shipping (inner) case width | 29 cm |
| Harmonized System (HS) code | 85176990 |
Network
| Data link protocols | CSMA/CD |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Other features
| Weight | 46.6 g |
|---|
Packaging data
| Package width | 208 mm |
|---|---|
| Package depth | 137 mm |
| Package height | 36 mm |
| Package weight | 150 g |
Ports & interfaces
| Host interface | PCI |
|---|
Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Software
| Mac operating systems supported | Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger |
|---|---|
| Linux operating systems supported | Yes |
General
| Brand | D-Link |
|---|---|
| Manufacturer part number | DGE-528T |
Performance
| Other operating systems supported | DOS, Novell NetWare 5.x, Novell NetWare 6.x |
|---|---|
| Plug and Play | Yes |
Interface & form factor
| Interface | Ethernet |
|---|
Ungrouped
| Gtin | 0790069263552 |
|---|

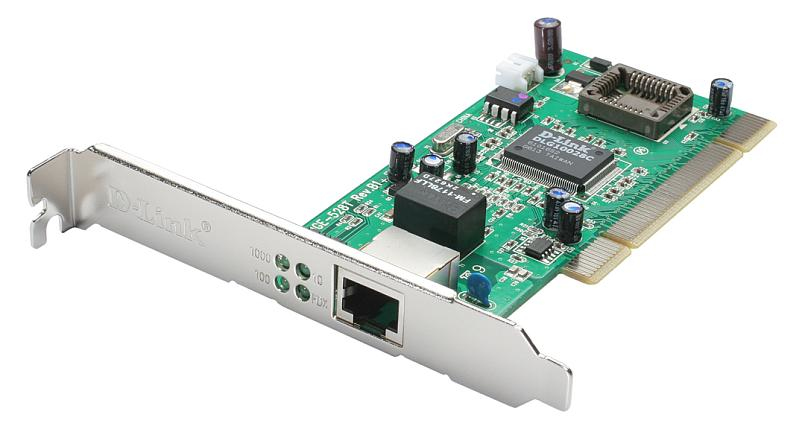

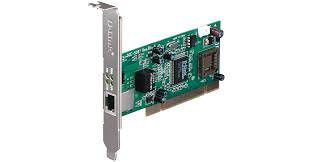

The D-Link DGE-528T is a high-performance 10/100/1000Mbps copper Gigabit PCI card for desktop PC. Installable in a PC equipped with PCI expansion slots, this card turns a desktop computer into a high-bandwidth Gigabit workstation or a server running at 2000Mbps full-duplex speed..
High-performance Gigabit Speed
Capable of running at full-duplex Gigabit speed, this card gives your PC 2000Mbps data transmission on your existing Cat. 5 twisted-pair network cable. As an inexpensive alternative solution to fiber-optic, the card allows you to instantly upgrade to Gigabit without requiring you to install new, expensive fiber cables. The card supports 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation.
VLAN to Improve Performance and Security
The card provides on-board screening of VLANs Tagged Ethernet frames, allowing your PC to be configured with VLAN-supported switch. Your PC can be part of a VLAN network, where domains are segmented up to enhance performance and security.
Wake-On-LAN for Power Management
Wake-On-LAN (WOL) is an Advanced Configuration Power Interface (ACPI) function allowing a powered OFF computer to be powered ON from a remote station. This function allows the administrator to send wake-up signals to a computer. The WOL function provides a great utility for power management of the PC and allows users to initiate action at irregular times and from distant locations.
Flow Control to Minimize Packet Loss
The card's embedded flow control and independent FIFO provide a means to protect against possible data loss during transmission on the network. When connected to a Gigabit switch supporting flow control, the card receives signals from the switch regarding buffer overrun during peak usage periods. The card then delays transmission until the switch is ready again to accept new data.
Small Form Factor, Lower Power Requirement
Using a single chip solution, this card is very small in size and consumes very little power of your computer system.
