StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile

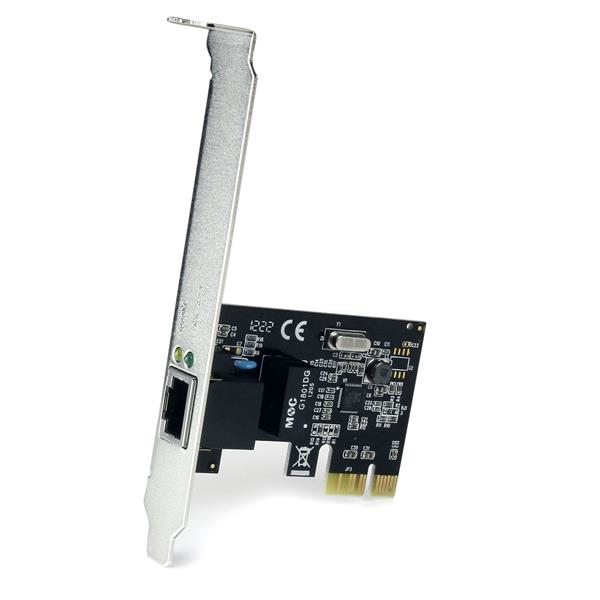

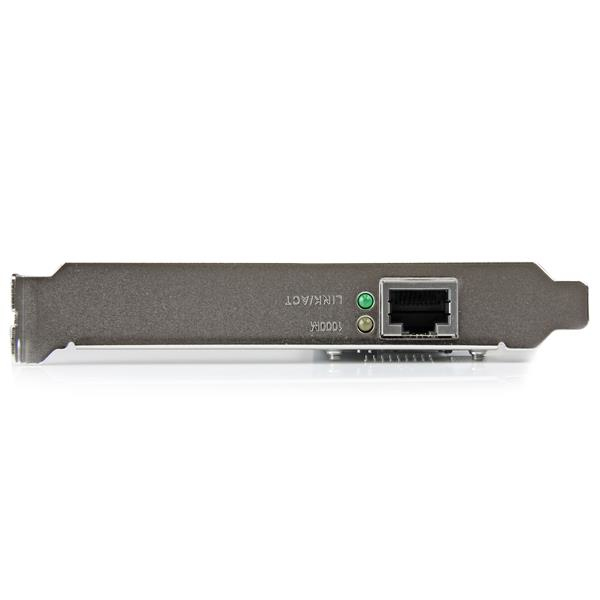

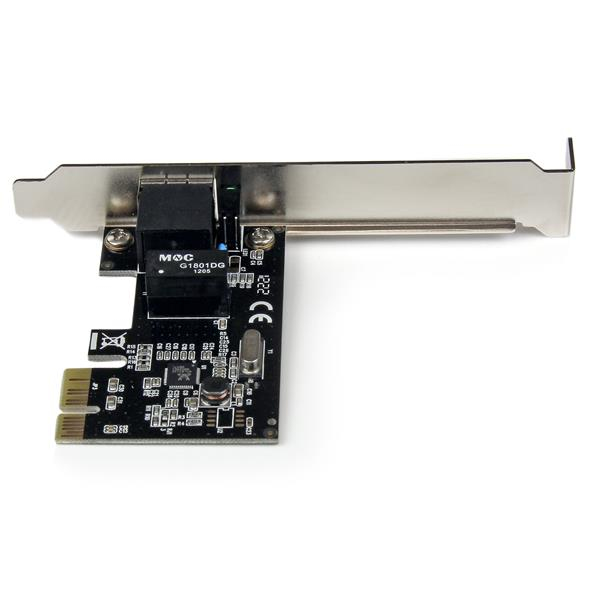

StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile

Art. no. STARTECH-ST1000SPEX2 On request

StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile, Internal, Wired, PCI Express, Ethernet, 1000 Mbit/s

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

Data transmission

Jumbo frames 9000
Jumbo frames support Yes

Design

Internal Yes
LED indicators Activity, Link

Features

Maximum data transfer rate 1000 Mbit/s
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterpri…
Mean time between failures (MTBF) 376212 h
Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Certification CE, FCC

Keyboard

Connectivity technology Wired

Logistics data

Harmonized System (HS) code 85176990

Management features

Wake-on-LAN ready Yes

Network

Auto MDIX IEEE Yes
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Wi-Fi No
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000BaseT(X)
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex Yes

Operational conditions

Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) 0 - 100 °C
Operating relative humidity (H-H) 10 - 90%

Other features

Chipset Realtek RTL8111E
Supported data transfer rates 10/100/1000 Mbit/s
Weight 40 g

Packaging content

Drivers included Yes
Manual Yes

Packaging data

Low-profile bracket Yes
Package width 142 mm
Package depth 171 mm
Package height 32 mm
Package weight 126 g

Ports & interfaces

Host interface PCI Express

Protocols

Supported network protocols CSMA/CD

Rear panel I/O ports

Ethernet LAN (RJ-45) ports 1

Software

Mac operating systems supported Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard
Linux operating systems supported Yes

Sustainability

Compliance certificates RoHS

Weight & dimensions

Width 120.3 mm
Depth 67.9 mm
Height 18 mm

General

Brand StarTech.com
Manufacturer part number ST1000SPEX2

Interface & form factor

Interface Ethernet

Ungrouped

Gtin 0065030849265

Description

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.

Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.

The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage
- Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
- Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
