TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port

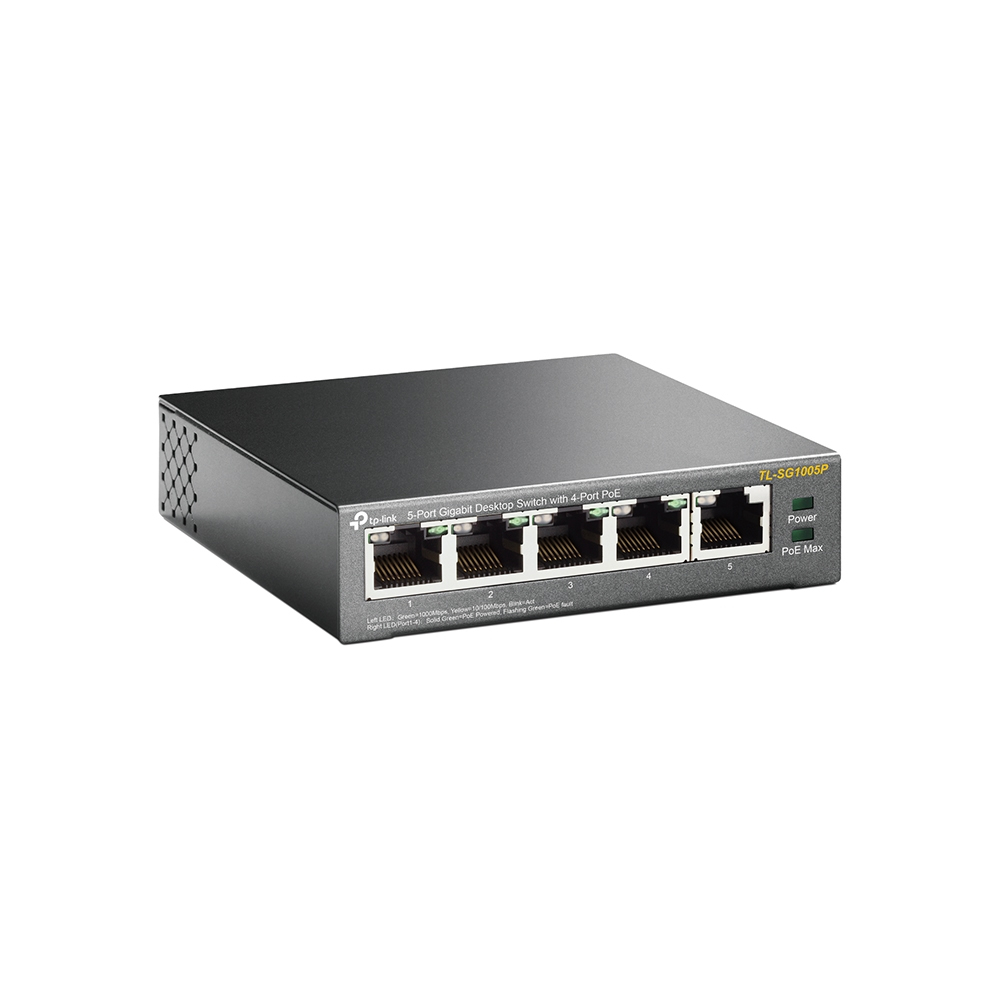

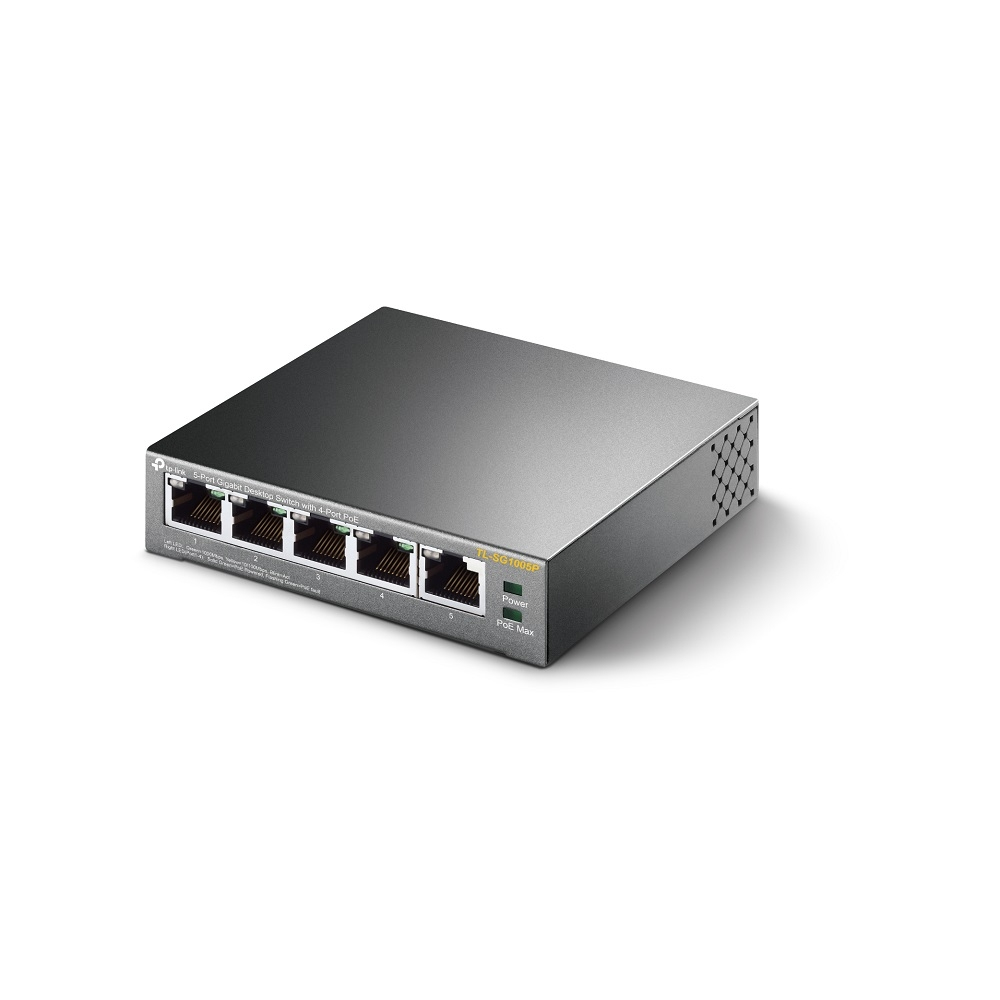

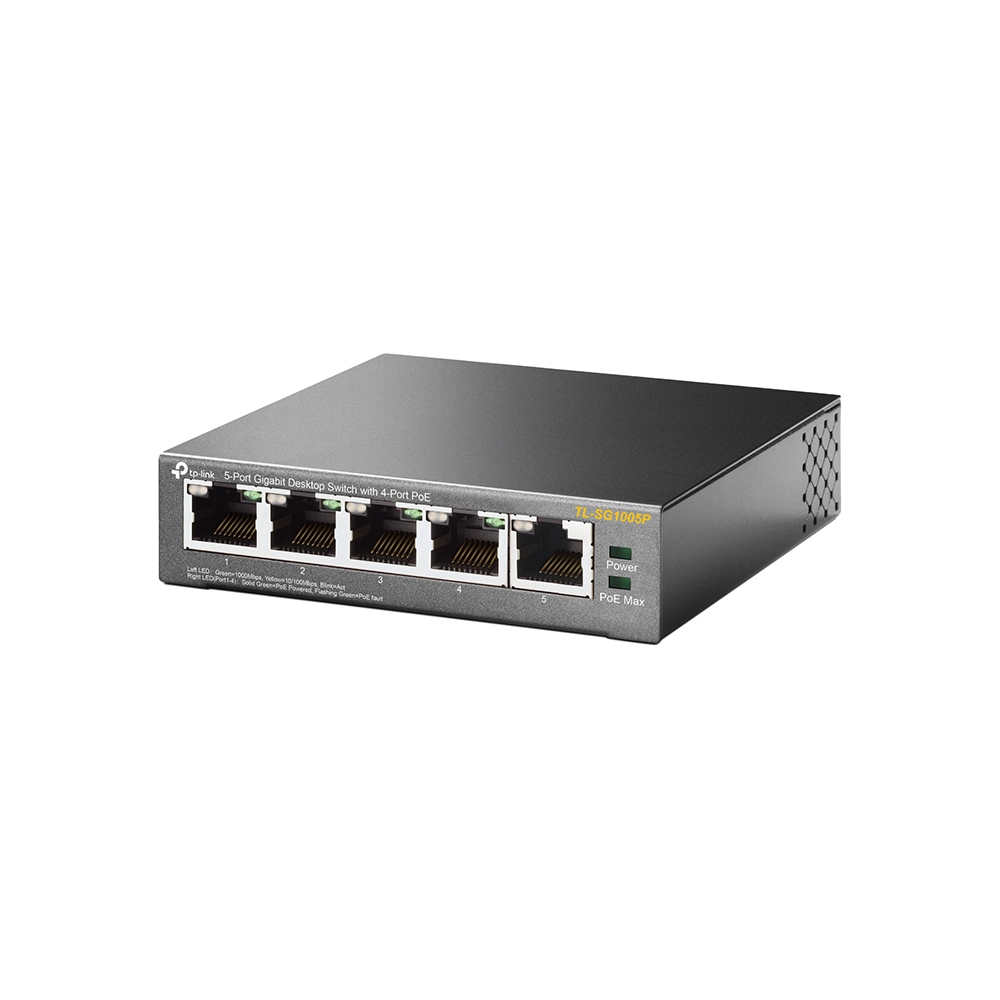

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port

Art. no. TP-LINK-TL-SG1005P V1 On request

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

Data transmission

Forwarding rate 7.44 Mpps
Store-and-forward Yes
Switching capacity 10 Gbit/s

Design

Stackable No
LED indicators Yes
Rack mounting No

Features

Product colour Black
Certification FCC, CE, RoHS

Logistics data

Harmonized System (HS) code 85176990

Management features

Switch type Unmanaged
Quality of Service (QoS) support Yes

Network

10G support No
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
MAC address auto-aging supported Yes
MAC address auto-learning supported Yes
VLAN support Yes
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Flow control support Yes

Operational conditions

Heat dissipation 219.87 BTU/h
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%

Other features

AC adapter included Yes

Packaging content

Cables included AC
User guide Yes
Manual Yes
Quick start guide Yes

Packaging data

Package width 131 mm
Package depth 196 mm
Package height 121 mm
Package weight 761 g
Package type Box

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 5

Power

DC input voltage 48 V
Power consumption (max) 64.44 W
AC input voltage 100 - 220 V
Input current 1.25 A
AC input frequency 50 Hz
Power source DC/PoE

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Total Power over Ethernet (PoE) budget 56 W

Power supply

Power supply included Yes

Security

IGMP snooping Yes
MAC address table 2000 entries

Sustainability

Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance Yes

Weight & dimensions

Width 99.8 mm
Depth 98 mm
Height 25 mm

General

Brand TP-Link
Manufacturer part number TL-SG1005P V1

Performance

Fanless Yes
Maximum cable length 100 m

Ungrouped

Gtin 6935364083212

Description

PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
