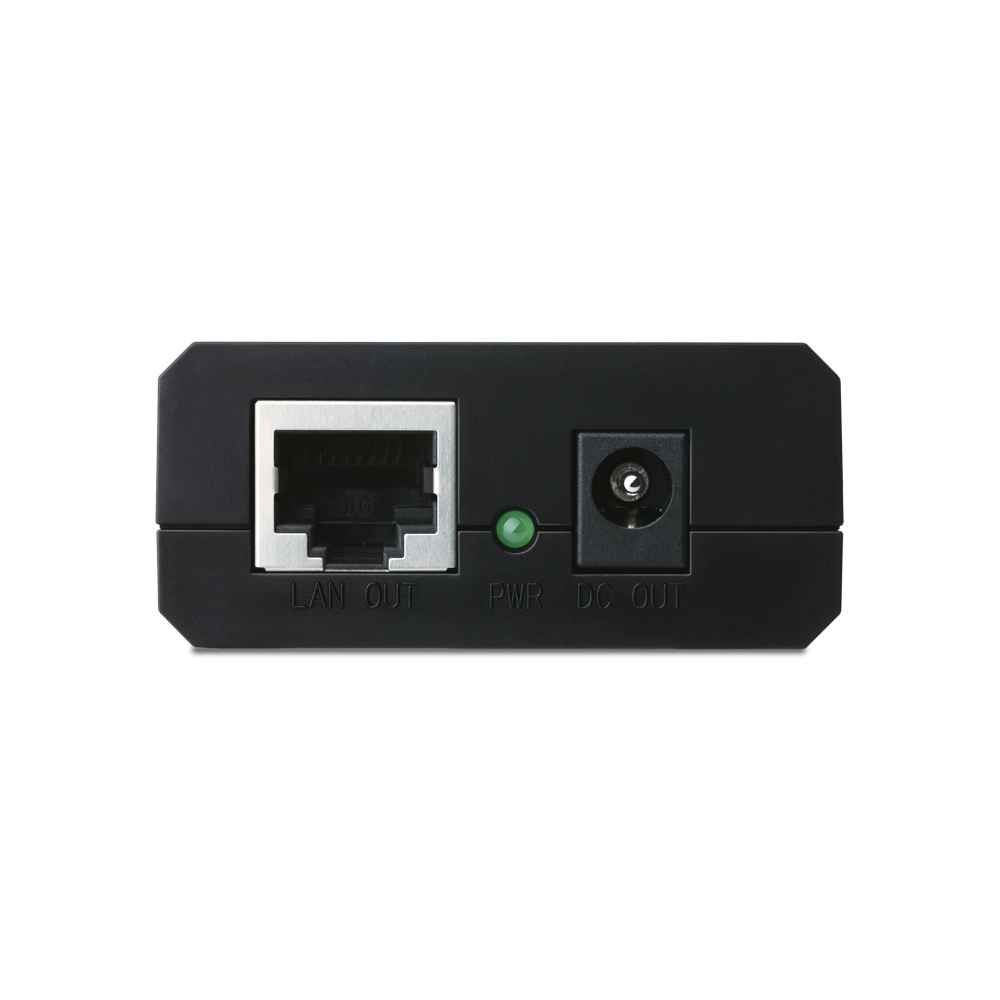

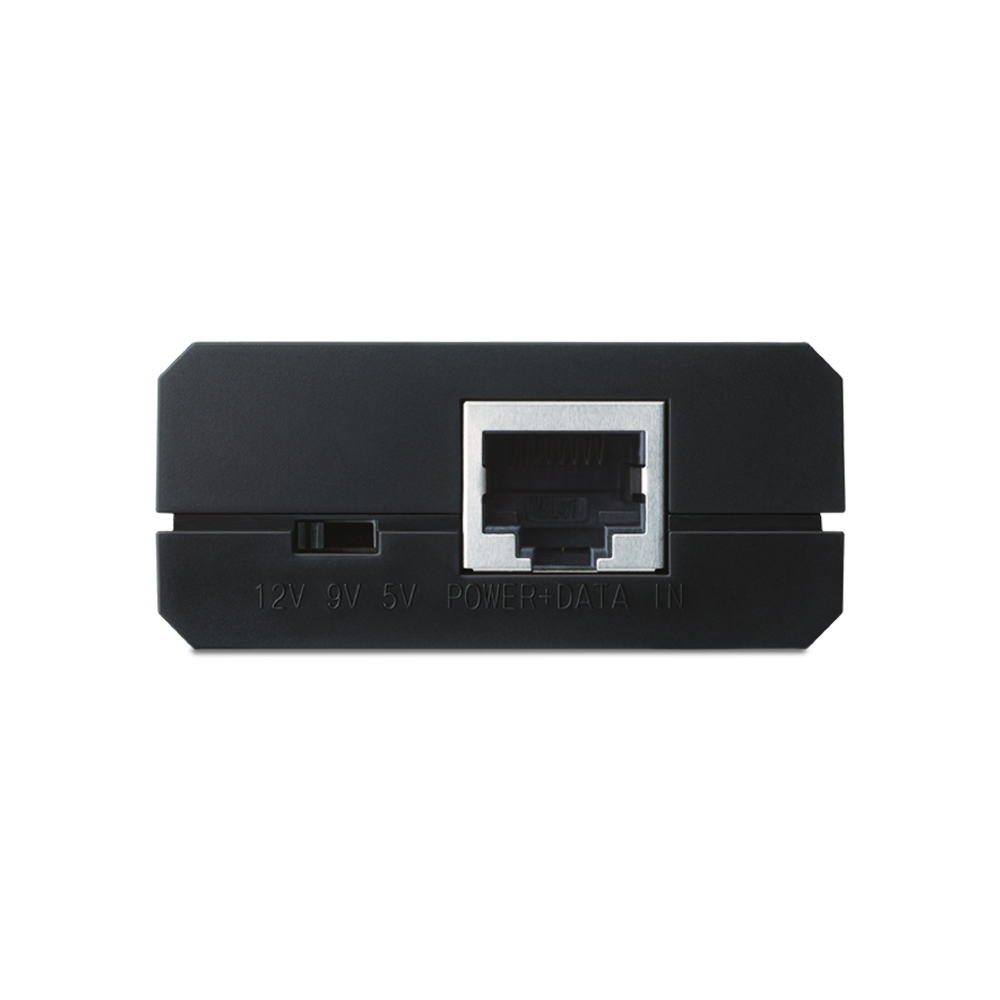

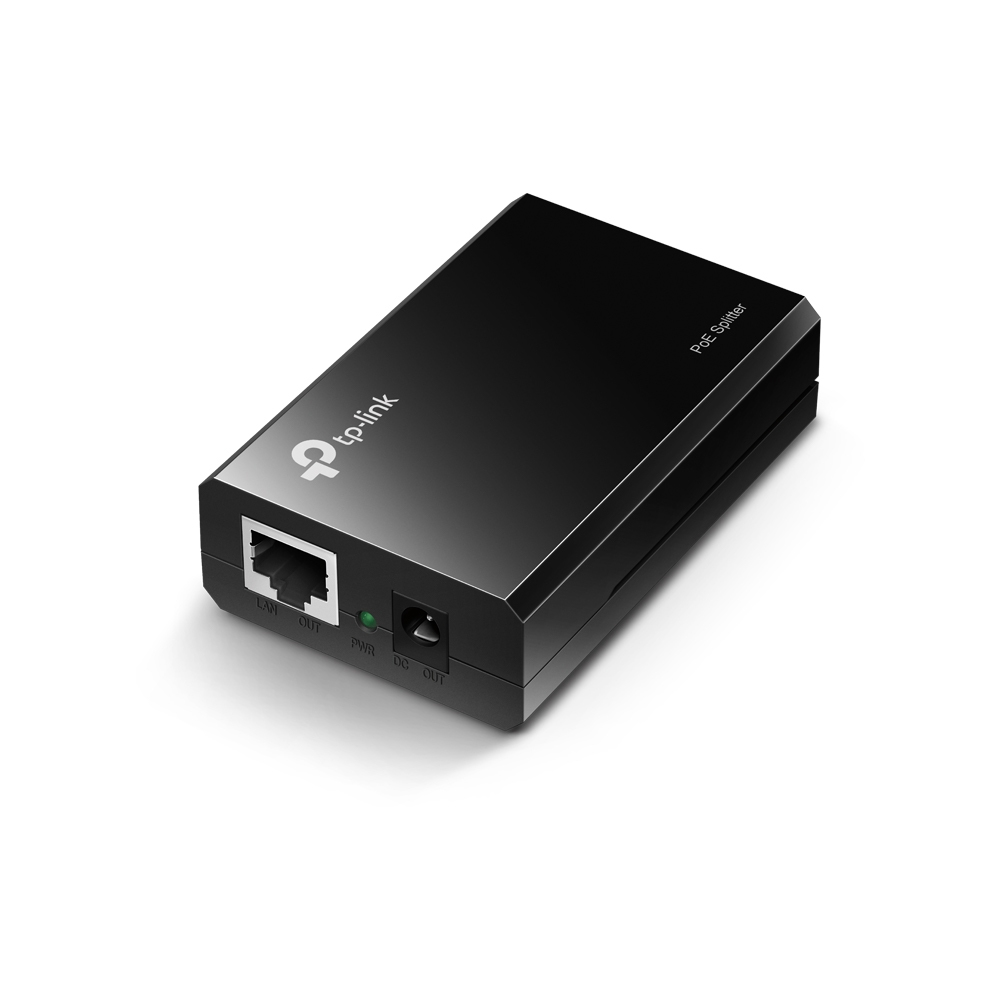

TP-Link TL-POE10R, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, Black, Power, 0 - 40 °C, -40 - 70 °C, 10 - 90%
Design
| LED indicators | Power |
|---|
Features
| Product colour | Black |
|---|---|
| Certification | FCC, CE |
Network
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Ports & interfaces
| DC-out jack | Yes |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Input voltage | 5, 9, 12 V |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 2 |
|---|
Weight & dimensions
| Width | 80.8 mm |
|---|---|
| Depth | 54 mm |
| Height | 24 mm |
General
| Brand | TP-Link |
|---|---|
| Manufacturer part number | TL-POE10R |
Performance
| Plug and Play | Yes |
|---|
Ungrouped
| Gtin | 7429500897898 |
|---|
TP-LINK’s PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard. It can receive power and data from all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Injector, such as TP-LINK's TL-SG3424P, TL-SF1008P, TL-POE150S or other equivalent products, then split electric power and data into two cables, so you can install the non-PoE devices like Wireless Access Points, IP Cameras or IP Phones, in remote location where there are no power lines or outlets, where you wish to fix these devices.
