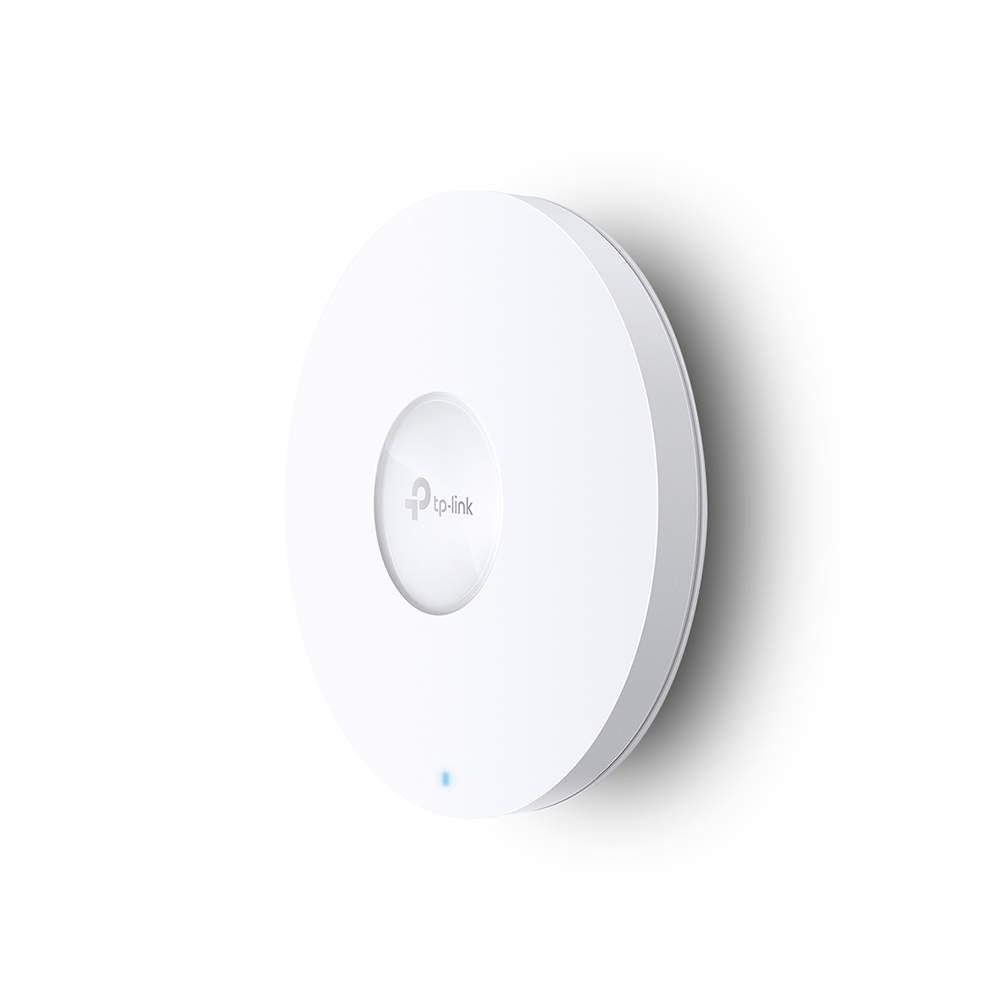

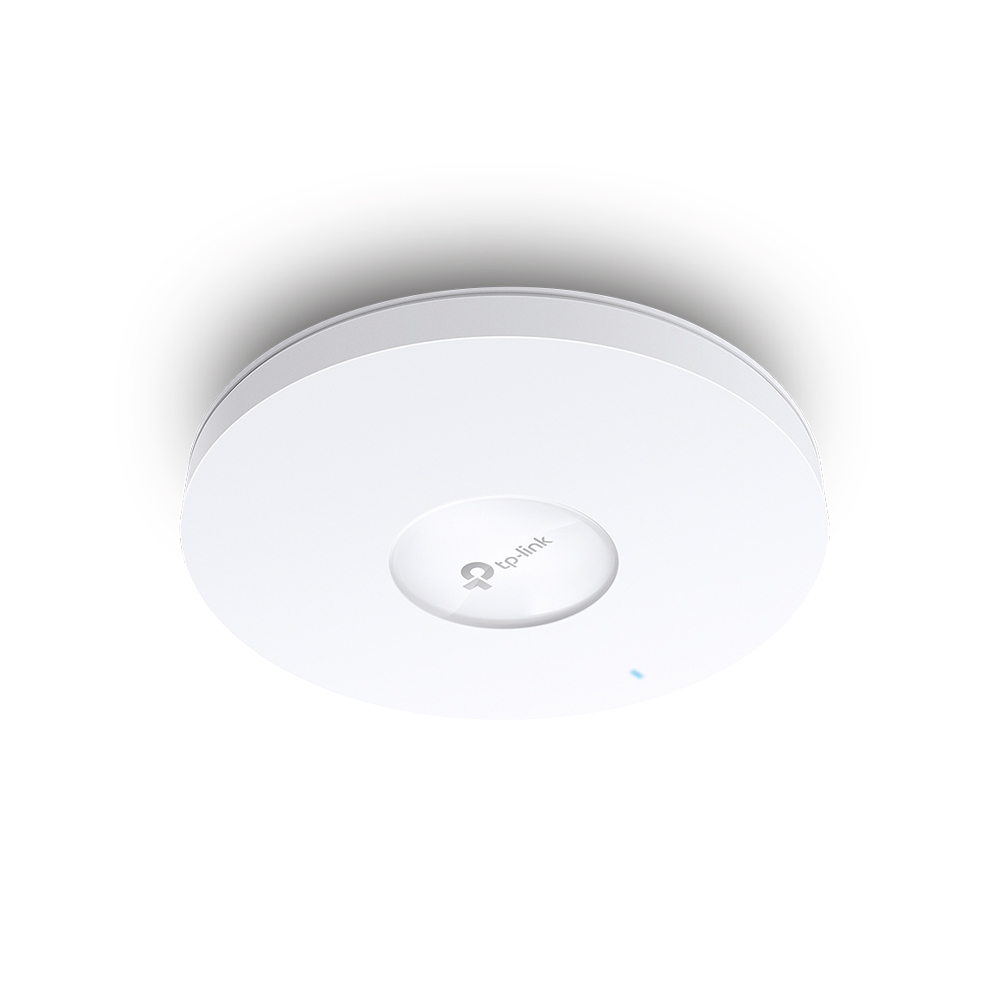

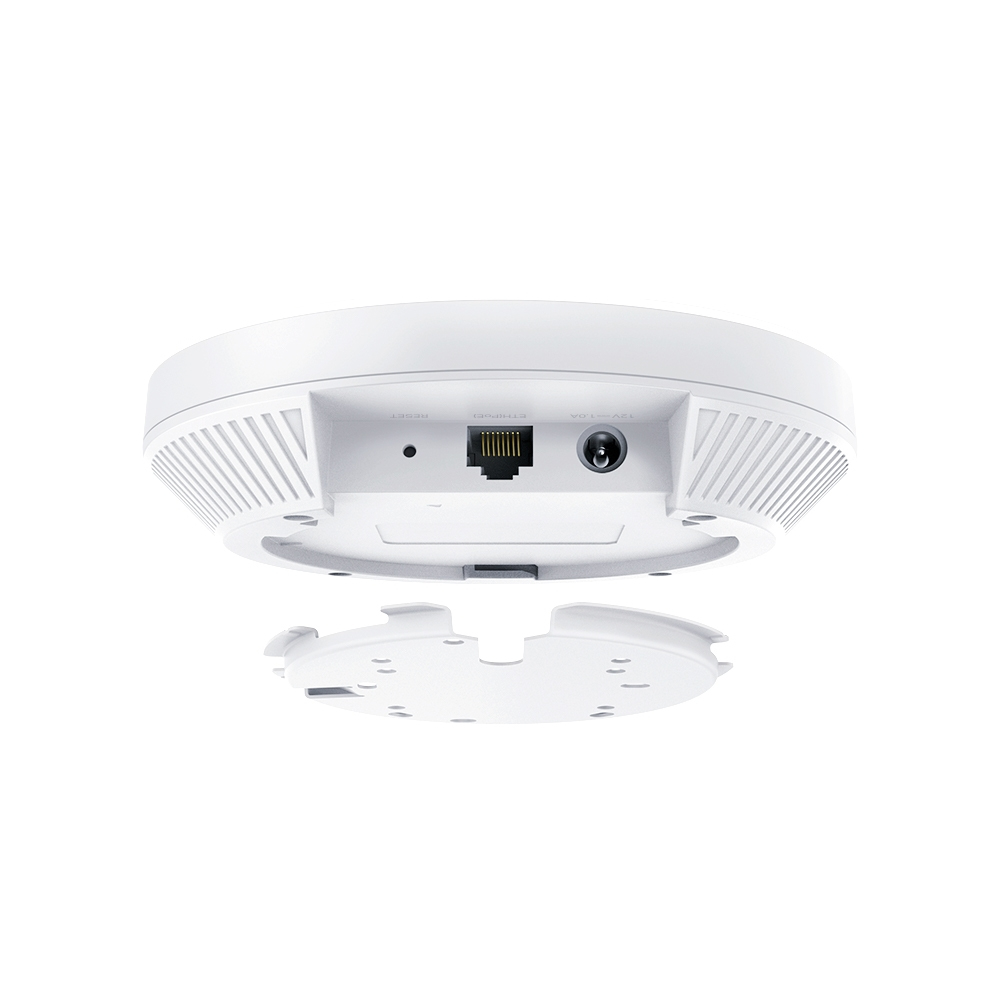

TP-Link Omada AX3000 Ceiling Mount WiFi 6 Access Point, 2.4 GHz, 5 GHz, 2976 Mbit/s, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise,..., 10,100,1000 Mbit/s
Antenna
| Antenna type | Internal |
|---|
Design
| Placement | Ceiling, Wall |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |
Features
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Airtime Fairness (ATF) | Yes |
| Automatic channel scanning | Yes |
| Band steering | Yes |
| BeamForming | Yes |
| Fit AP mode features | Mesh networking |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| MIMO type | Multi User MIMO |
| Number of users | 250 user(s) |
| Spread spectrum method | OFDMA |
| Transmitting power (CE) | <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP) |
| Transmitting power (FCC) | <25 dBm (2.4 GHz) <25 dBm (5 GHz) |
| Product colour | White |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK |
| Certification | CE, FCC, RoHS |
| Firmware upgradeable | Yes |
Management features
| Syslog | Yes |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIMO | Yes |
Mouse
| Frequency band | 2.4 - 5 GHz |
|---|
Network
| Rate limiting | Yes |
|---|---|
| VLAN support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at |
| Automatic channel selection | Yes |
| Flow control support | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging content
| Mounting kit | Yes |
|---|---|
| Quick start guide | Yes |
Packaging data
| Package type | Box |
|---|---|
| Quantity per pack | 1 pc(s) |
Ports & interfaces
| DC-in jack | Yes |
|---|
Power
| DC voltage range | 12 V |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Security
| Access Control List (ACL) | Yes |
|---|---|
| MAC address filtering | Yes |
Weight & dimensions
| Width | 160 mm |
|---|---|
| Depth | 160 mm |
| Height | 33.6 mm |
General
| Brand | TP-Link |
|---|---|
| Manufacturer part number | EAP650 |
Ungrouped
| Gtin | 4897098683545 |
|---|
The New Slimline Business WiFi 6
AX3000 Ceiling Mount WiFi 6 Access Point
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160‡
Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference
Omada Mesh Technology
More flexible and convenient wireless deployment
Seamless Roaming
Uninterrupted streaming when moving between APs
Ultra-Slim Design
Φ160 mm × 33.6 mm elegant design brings more agility
PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.
