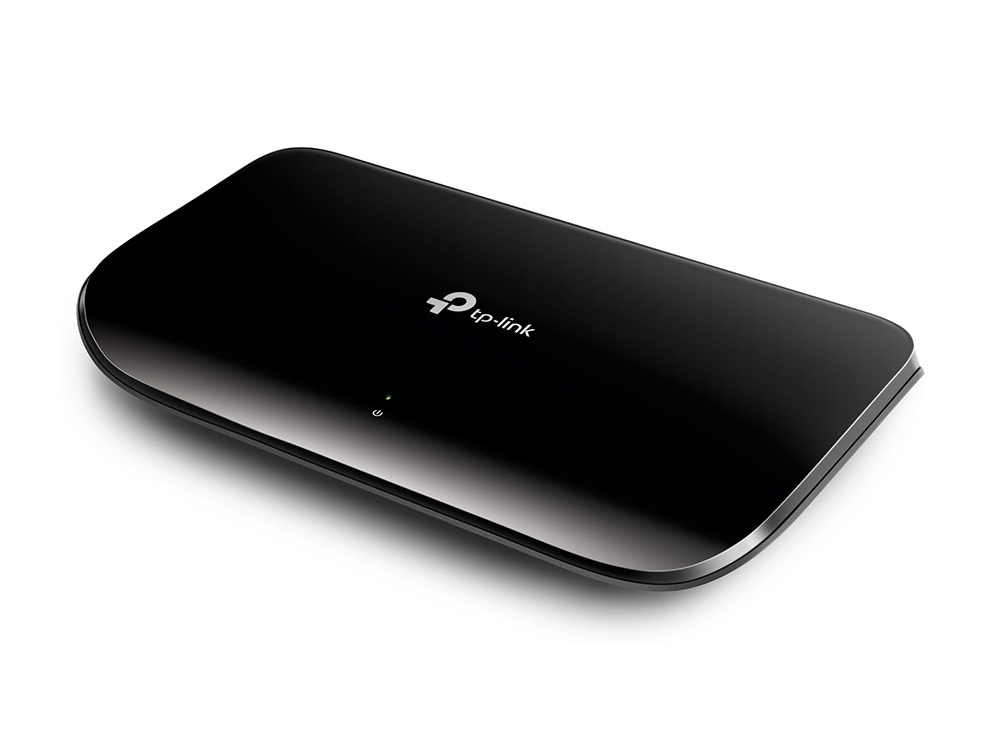

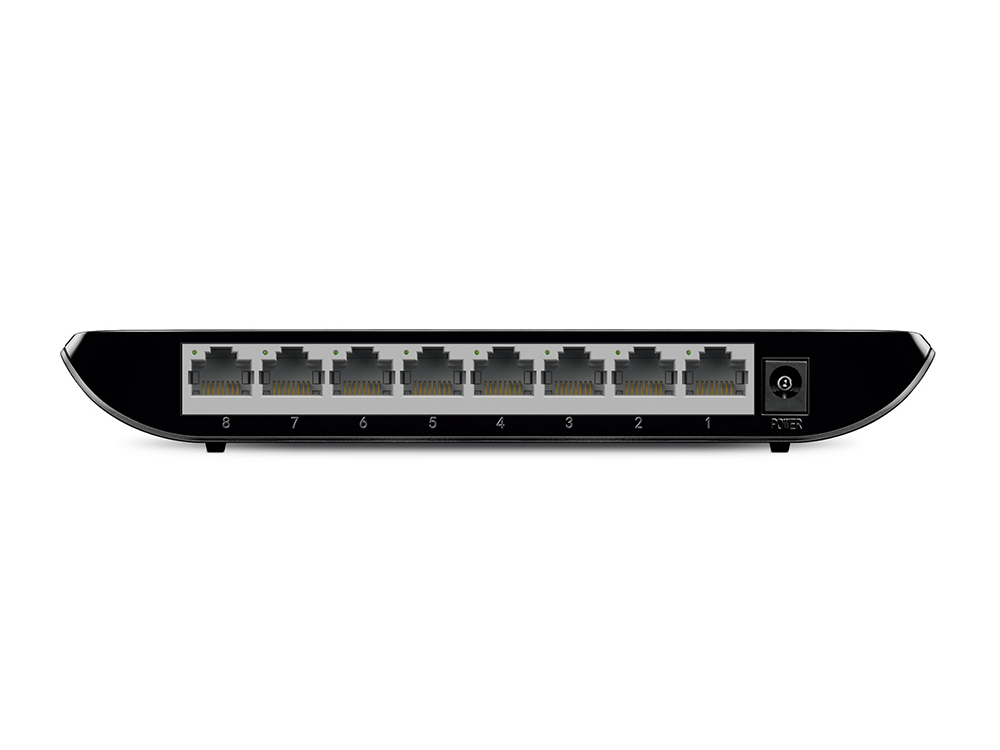

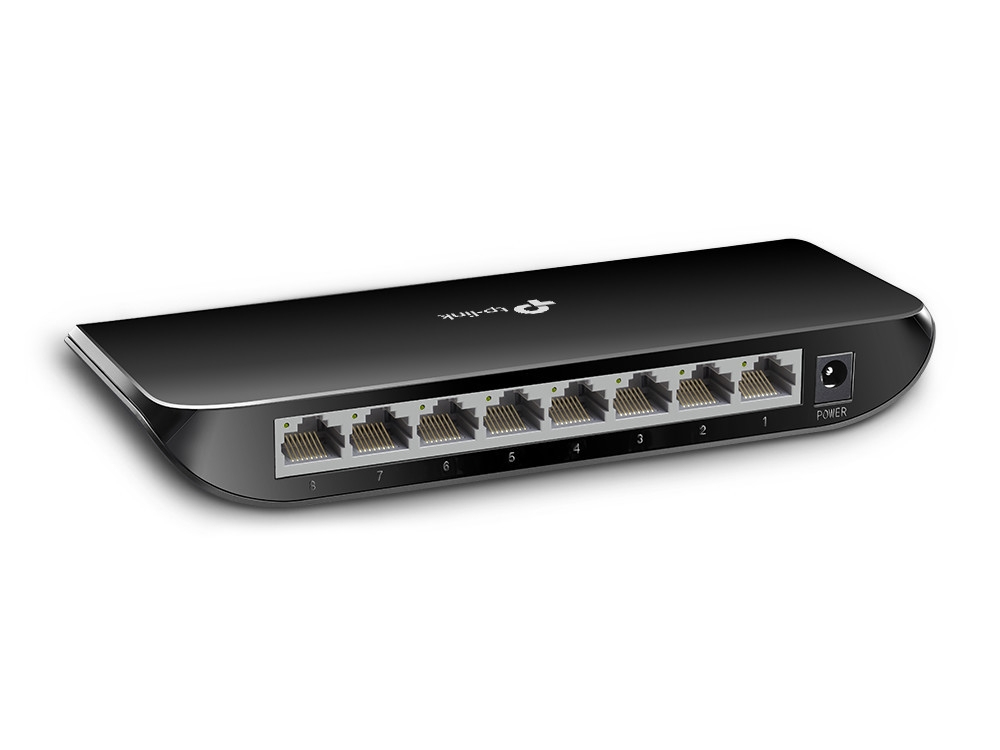

TP-Link 8-Port Gigabit Desktop Network Switch

Art. no. TP-LINK-TL-SG1008D V8 On request

TP-Link 8-Port Gigabit Desktop Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

Data transmission

Jumbo frames 15000
Jumbo frames support Yes
Packet buffer memory 2 MB
Packet forwarding rate (100 Mbps) 148800 pps
Packet forwarding rate (10 Mbps) 1488000 pps
Packet forwarding rate (1 Gbps) 14880 pps
Store-and-forward Yes
Switching capacity 16 Gbit/s

Design

Housing material Plastic
Stackable No
LED indicators Yes
Rack mounting No

Ergonomics

Wall mountable Yes

Features

Product colour Black
Certification CE, FCC, RoHS

Logistics data

Harmonized System (HS) code 85176990

Management features

Switch type Unmanaged

Network

10G support No
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates 10,100,480,800,1000 Mbit/s
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex Yes
Flow control support Yes

Operational conditions

Heat dissipation 15.8 BTU/h
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%

Other features

AC adapter included Yes

Packaging content

Cables included AC
User guide Yes

Packaging data

Package width 110 mm
Package depth 185 mm
Package height 85 mm
Package weight 300 g
Package type Box

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 8
Power connector DC-in jack

Power

DC input voltage 9 V
Power consumption (typical) 4.63 W
Power consumption (max) 3.53 W
AC input voltage 100 - 240 V
Input current 0.6 A
AC input frequency 50/60 Hz
Power source DC

Power over Ethernet (PoE)

Power over Ethernet (PoE) No

Power supply

Power supply included Yes

Security

MAC address table 4000 entries

Sustainability

Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance Yes

Weight & dimensions

Width 180 mm
Depth 90 mm
Height 25.5 mm

General

Brand TP-Link
Manufacturer part number TL-SG1008D V8

Performance

Fanless Yes
Maximum cable length 100 m

Ungrouped

Gtin 6935364092320

Description

The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.

Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
