TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE

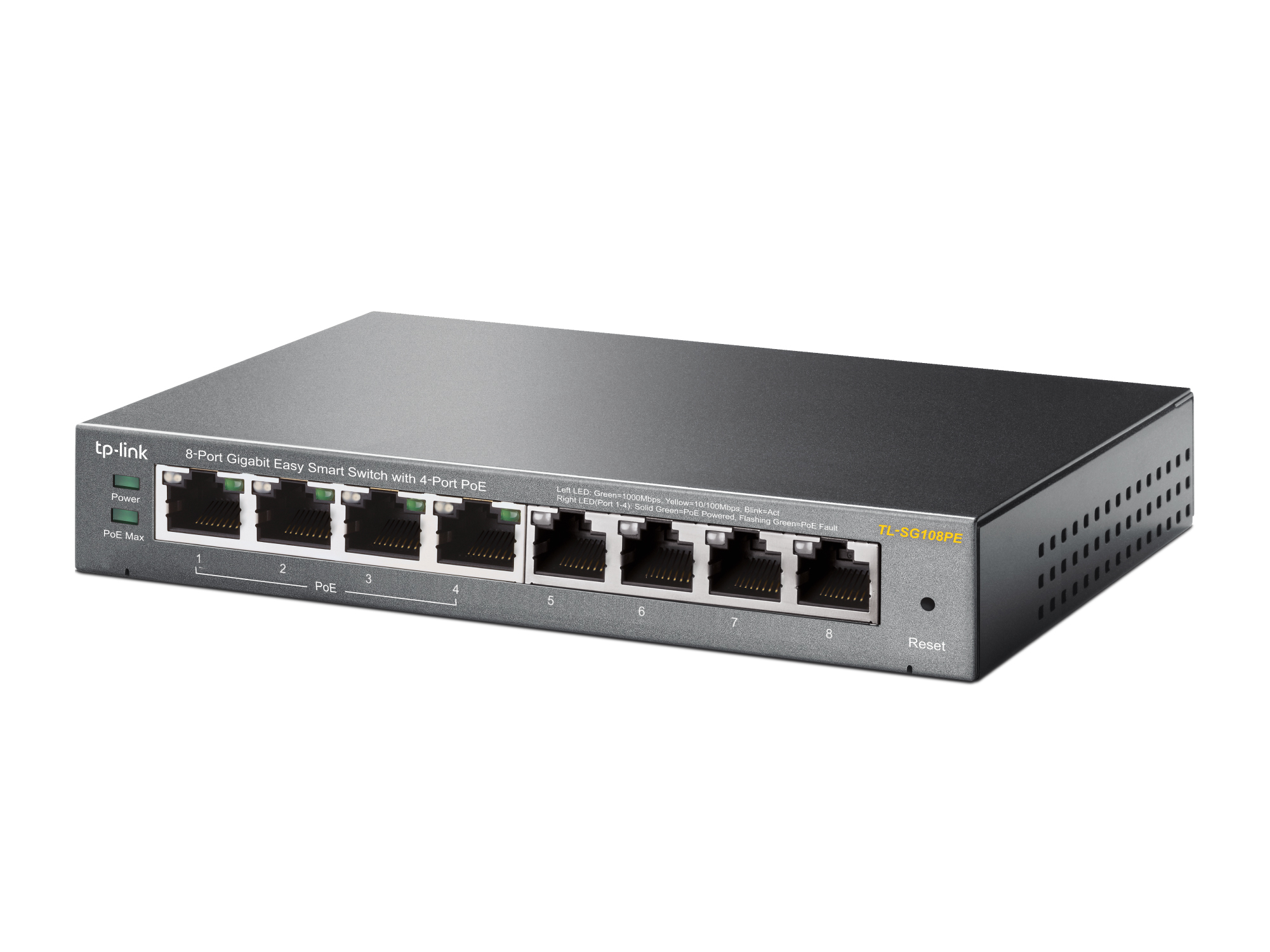

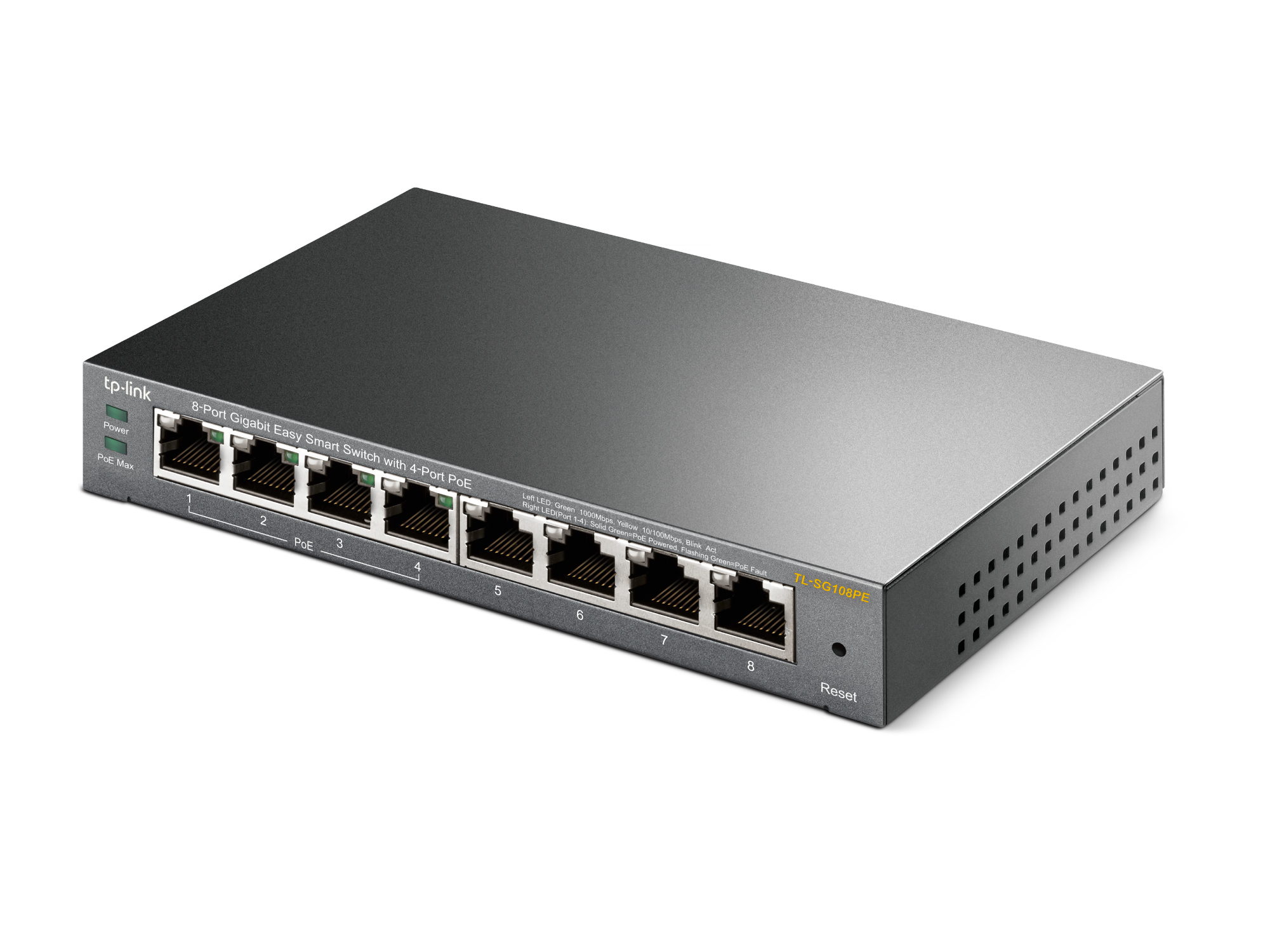

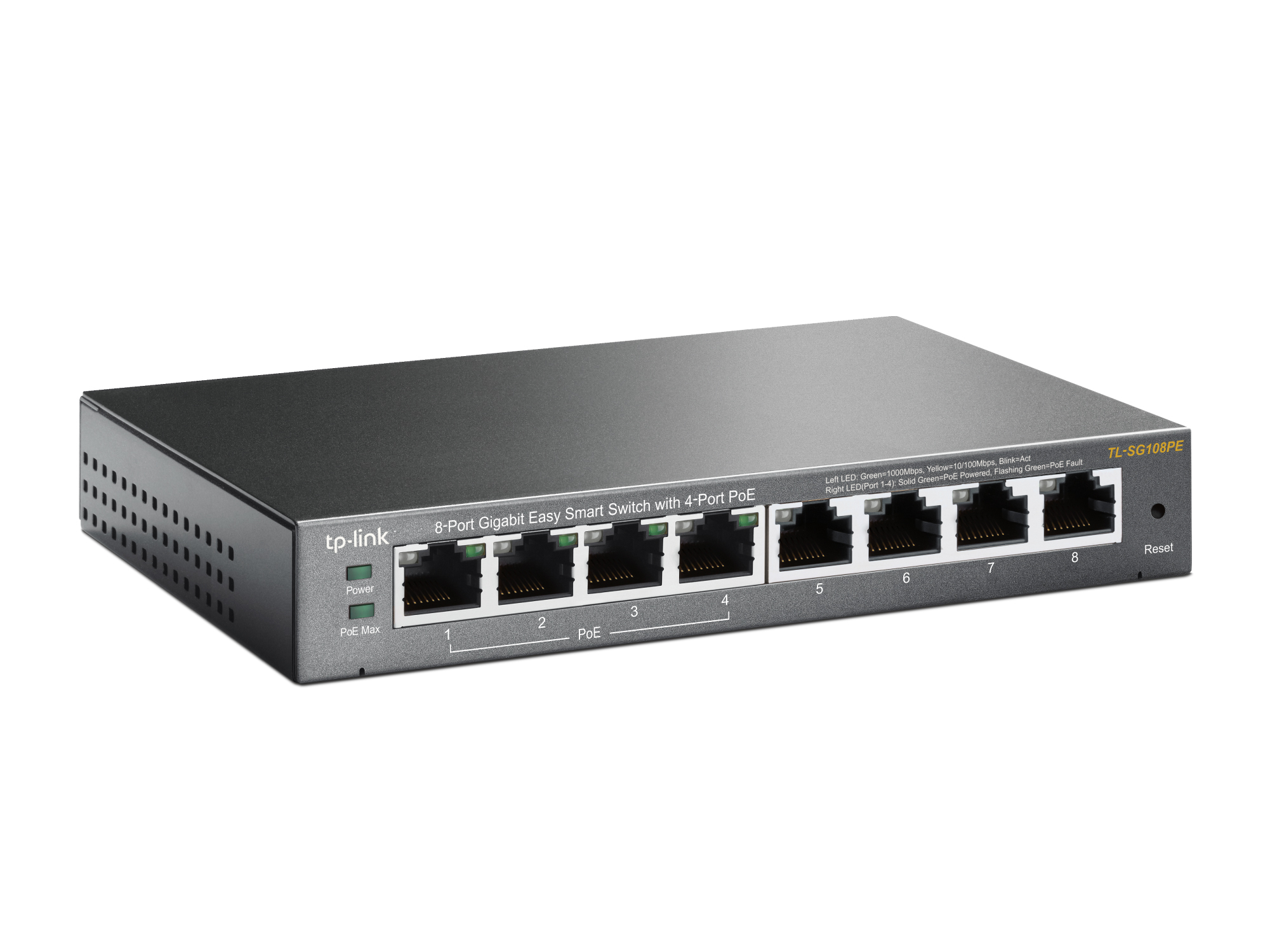

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE

Art. no. TP-LINK-TL-SG108PE V2 On request

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

Data transmission

Forwarding rate 11.9 Mpps
Jumbo frames 15000
Jumbo frames support Yes
Packet buffer memory 1.5 MB
Packet forwarding rate (1 Gbps) 11900000 pps
Store-and-forward Yes
Switching capacity 16 Gbit/s

Design

LED indicators Activity, Link, PoE, Power, Speed, Status

Features

Product colour Black
Certification FCC, CE, RoHS

Logistics data

Harmonized System (HS) code 85176990

Management features

Switch layer L2
Switch type Managed
Quality of Service (QoS) support Yes
Web-based management Yes

Network

10G support No
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Broadcast storm control Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Link aggregation Yes
Number of VLANs 32
Port mirroring Yes
Rate limiting Yes
Virtual LAN features Port-based VLAN
VLAN support Yes
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Operational conditions

Heat dissipation 256.19 BTU/h
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%

Packaging content

Cables included AC
User guide Yes

Packaging data

Package width 131 mm
Package depth 196 mm
Package height 121 mm
Package weight 860 g
Package type Box

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 8

Power

Input voltage 48 V
Power consumption (max) 65.2 W
AC input voltage 220 V
Input current 1.25 A
AC input frequency 50 Hz
Power source DC

Power over Ethernet (PoE)

Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Power over Ethernet (PoE) power per port 15.4 W
Total Power over Ethernet (PoE) budget 64 W

Power supply

Power supply included Yes

Security

Loop protection Yes
IGMP snooping Yes
MAC address table 4000 entries

Weight & dimensions

Width 158 mm
Depth 101 mm
Height 25 mm

General

Brand TP-Link
Manufacturer part number TL-SG108PE V2

Ungrouped

Gtin 6935364094744

Description

PoE Switches for Your Ultra Convenience
8-Port Gigabit Easy Smart Switch with 4-Port PoE

Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
