TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

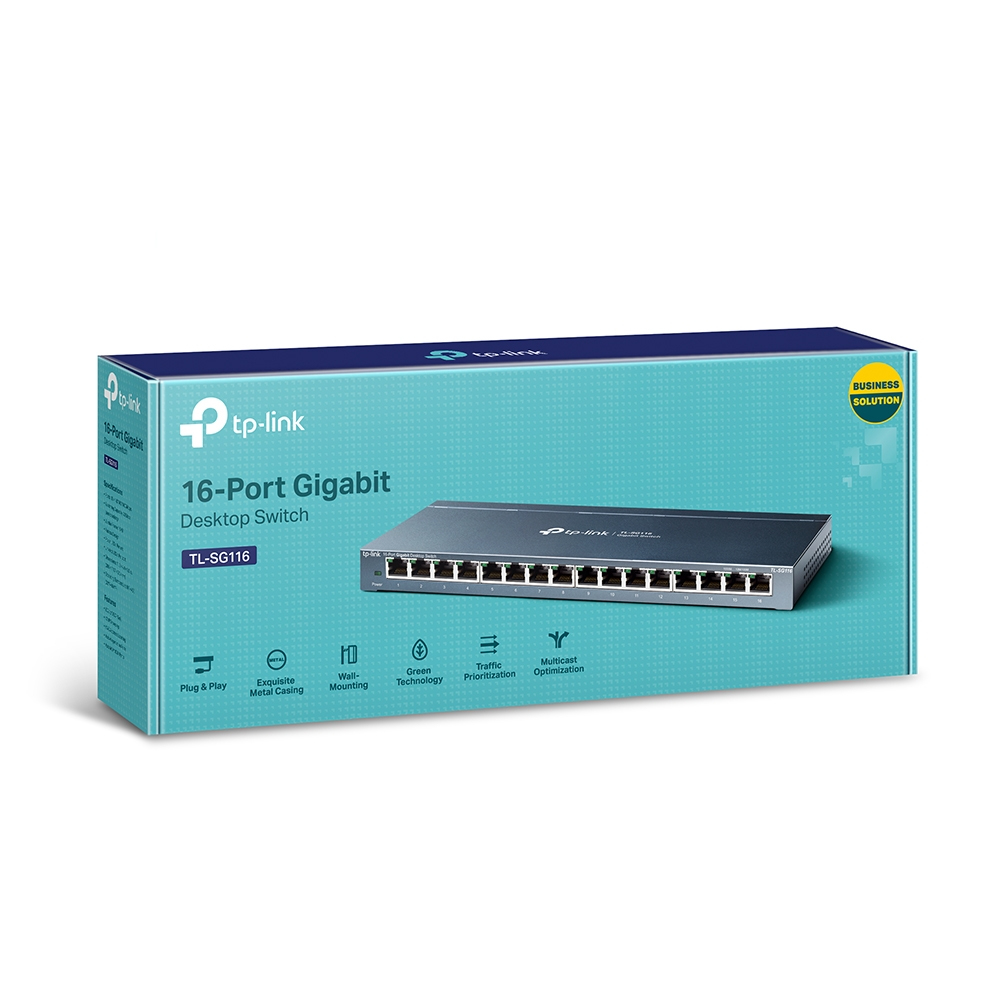

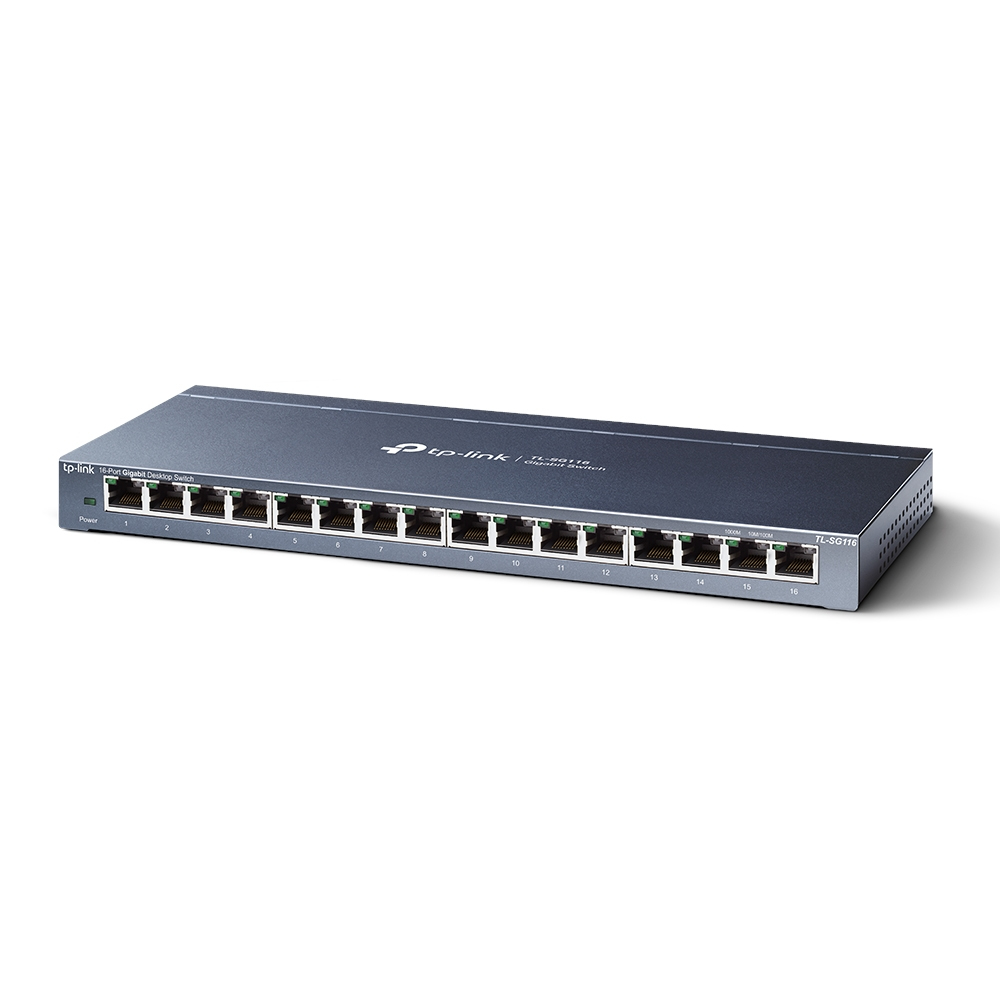

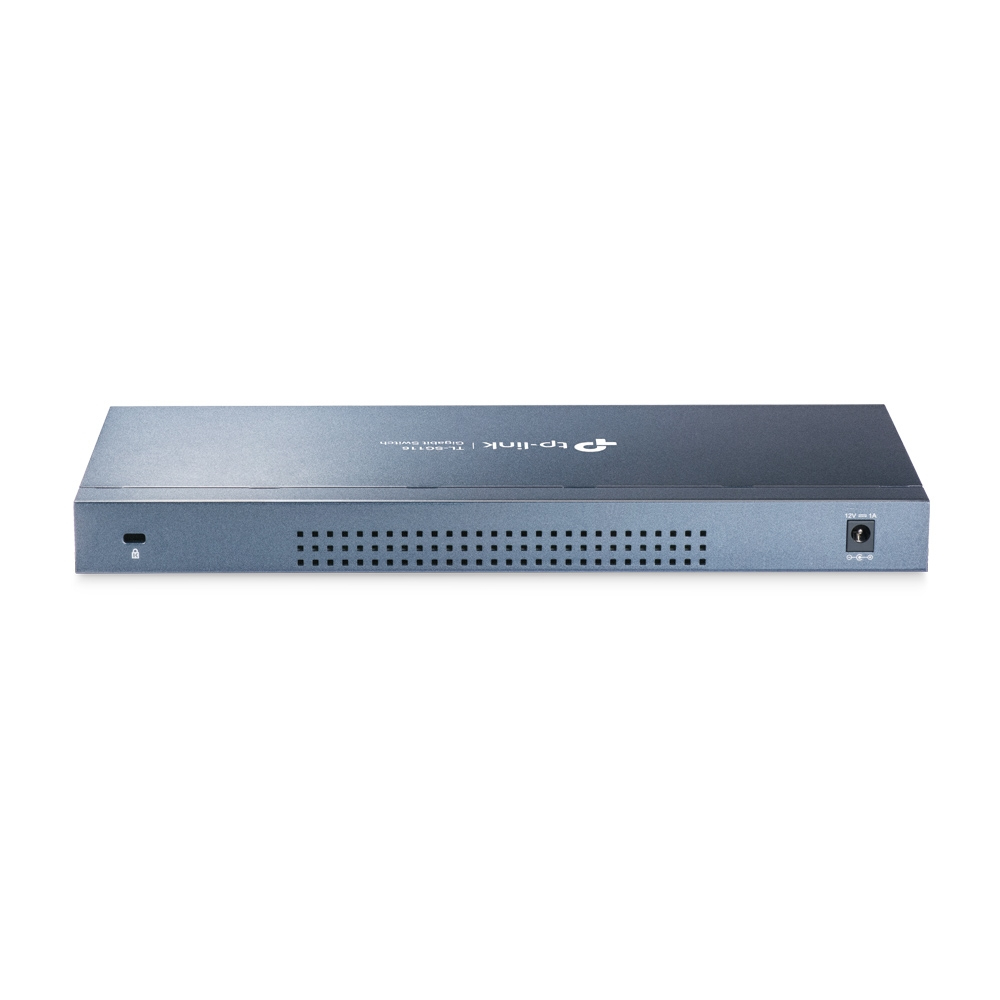

TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Art. no. TP-LINK-TL-SG116 On request

TP-Link TL-SG116, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

Data transmission

Forwarding rate 23.81 Mpps
Jumbo frames 9000
Jumbo frames support Yes
Number of queues 4
Packet buffer memory 4.1 MB
Store-and-forward Yes
Switching capacity 32 Gbit/s

Design

Housing material Metal
LED indicators Yes
Rack mounting No

Ergonomics

Wall mountable Yes

Features

Product colour Black

Logistics data

Harmonized System (HS) code 85176990

Management features

Switch type Unmanaged
Quality of Service (QoS) support Yes

Network

10G support No
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Broadcast storm control Yes
Cable length detection Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Link aggregation Yes
Number of VLANs 32
Port mirroring Yes
Rate limiting Yes
Virtual LAN features Protocol-based VLAN, Tagged VLAN
VLAN support Yes
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex Yes
Flow control support Yes

Operational conditions

Heat dissipation 31.68 BTU/h
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%

Packaging content

Cables included AC
Quick start guide Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 16

Power

DC input voltage 9 V
Power consumption (max) 9.3 W
AC input voltage 220 V
Input current 0.6 A
AC input frequency 50 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE) No

Power supply

Power supply included Yes

Security

Loop protection Yes
IGMP snooping Yes
MAC address table 8000 entries

Weight & dimensions

Width 286 mm
Depth 111.7 mm
Height 25.4 mm

General

Brand TP-Link
Manufacturer part number TL-SG116

Ungrouped

Gtin 1210002616997

Description

What This Product Does

The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
