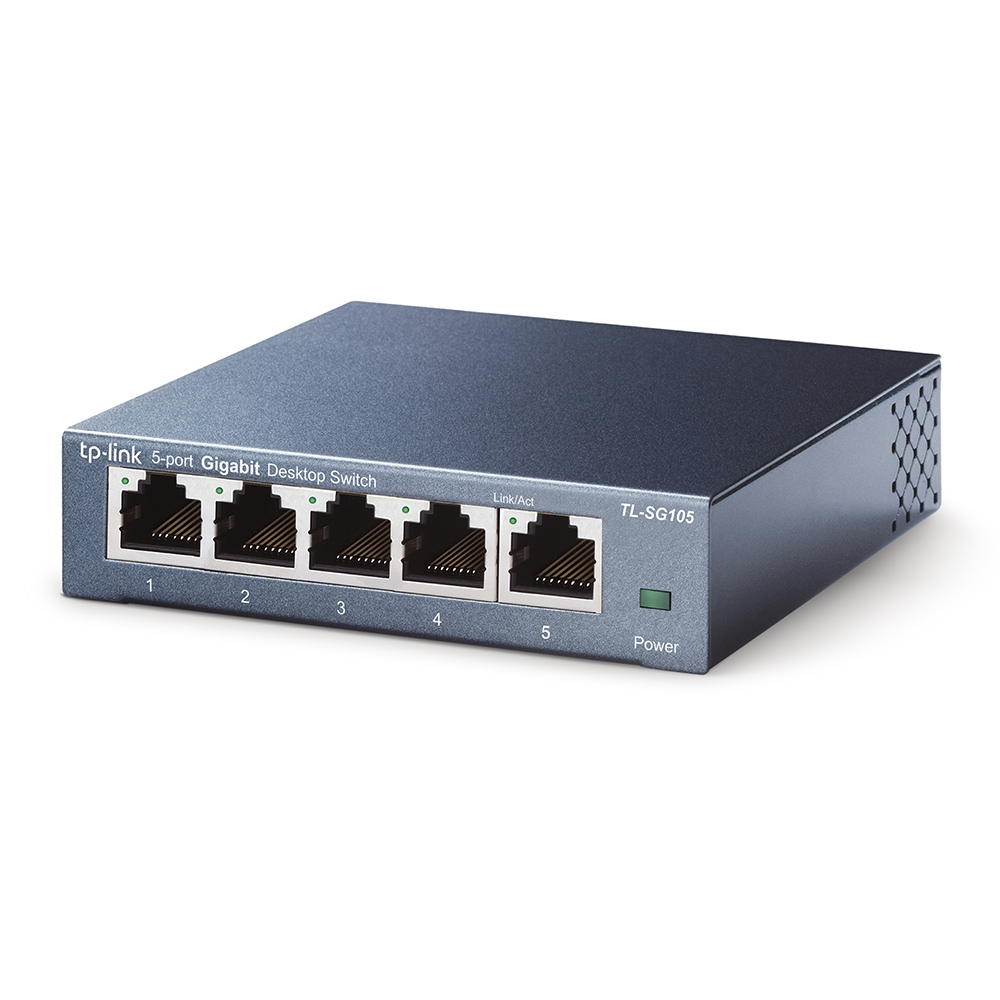

TP-Link TL-SG105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black TP-Link TL-SG105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black TP-Link TL-SG105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

TP-Link TL-SG105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

Art. no. TP-LINK-TL-SG105 On request

TP-Link TL-SG105, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

Data transmission

Forwarding rate 7.4 Mpps
Jumbo frames 16000
Jumbo frames support Yes
Packet buffer memory 1 MB
Store-and-forward Yes
Switching capacity 10 Gbit/s

Design

Housing material Steel
LED indicators Yes
Rack mounting No

Ergonomics

Wall mountable Yes

Features

Product colour Black
Certification CE, FCC, RoHS

Logistics data

Harmonized System (HS) code 85176990

Management features

Switch layer L2
Switch type Unmanaged
Quality of Service (QoS) support Yes

Multicast features

Multicast support Yes

Network

10G support No
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
MAC address auto-aging supported Yes
MAC address auto-learning supported Yes
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex Yes
Flow control support Yes

Operational conditions

Heat dissipation 7.83 BTU/h
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%

Packaging content

Cables included AC
User guide Yes

Packaging data

Package type Box

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 5
Power connector DC-in jack

Power

Power consumption (max) 2.3 W
AC input voltage 220 V
Input current 0.6 A
AC input frequency 50 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE) No

Power supply

Power supply included Yes

Security

IGMP snooping Yes
MAC address table 2048 entries

Weight & dimensions

Width 100 mm
Depth 98 mm
Height 25 mm

General

Brand TP-Link
Manufacturer part number TL-SG105

Ungrouped

Gtin 0172304263228

Description

What This Product Does

The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
