ASUS TUF Gaming AX5400, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, Black, Tabletop router
Antenna
| Antenna design | External |
|---|---|
| Antennas quantity | 6 |
Design
| Reset button | Yes |
|---|---|
| LED indicators | LAN, Power, WAN, WLAN |
| Product type | Tabletop router |
Features
| Internal memory | 512 MB |
|---|---|
| Product colour | Black |
| Power source type | AC |
| Security algorithms | SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-PSK, WPS |
| Built-in processor | Yes |
| Processor cores | 3 |
| Works with Amazon Alexa | Yes |
| Flash memory | 256 MB |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Management features
| Quality of Service (QoS) support | Yes |
|---|---|
| WPS push button | Yes |
| Web-based management | Yes |
| MU-MIMO technology | Yes |
| Bandwidth control | Yes |
| MIMO | Yes |
| Wake-on-LAN ready | Yes |
Mobile network
| 3G | No |
|---|---|
| 4G | No |
| 5G | No |
Network
| Ethernet LAN | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 3 |
| Number of guest networks (5 GHz) | 3 |
| Built-in FTP server | Yes |
| VPN server | IPSec, OVPN, PPTP |
| Media server | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 50 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
Other features
| Weight | 600 g |
|---|---|
| AC adapter included | Yes |
Packaging content
| Cables included | LAN (RJ-45) |
|---|---|
| Quick start guide | Yes |
| Number of products included | 1 pc(s) |
| Warranty card | Yes |
Ports & interfaces
| DC-in jack | Yes |
|---|---|
| USB port | Yes |
Power
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Output current | 2.5 A |
Processor
| Processor frequency | 1500 MHz |
|---|
Protocols
| DHCP server | Yes |
|---|

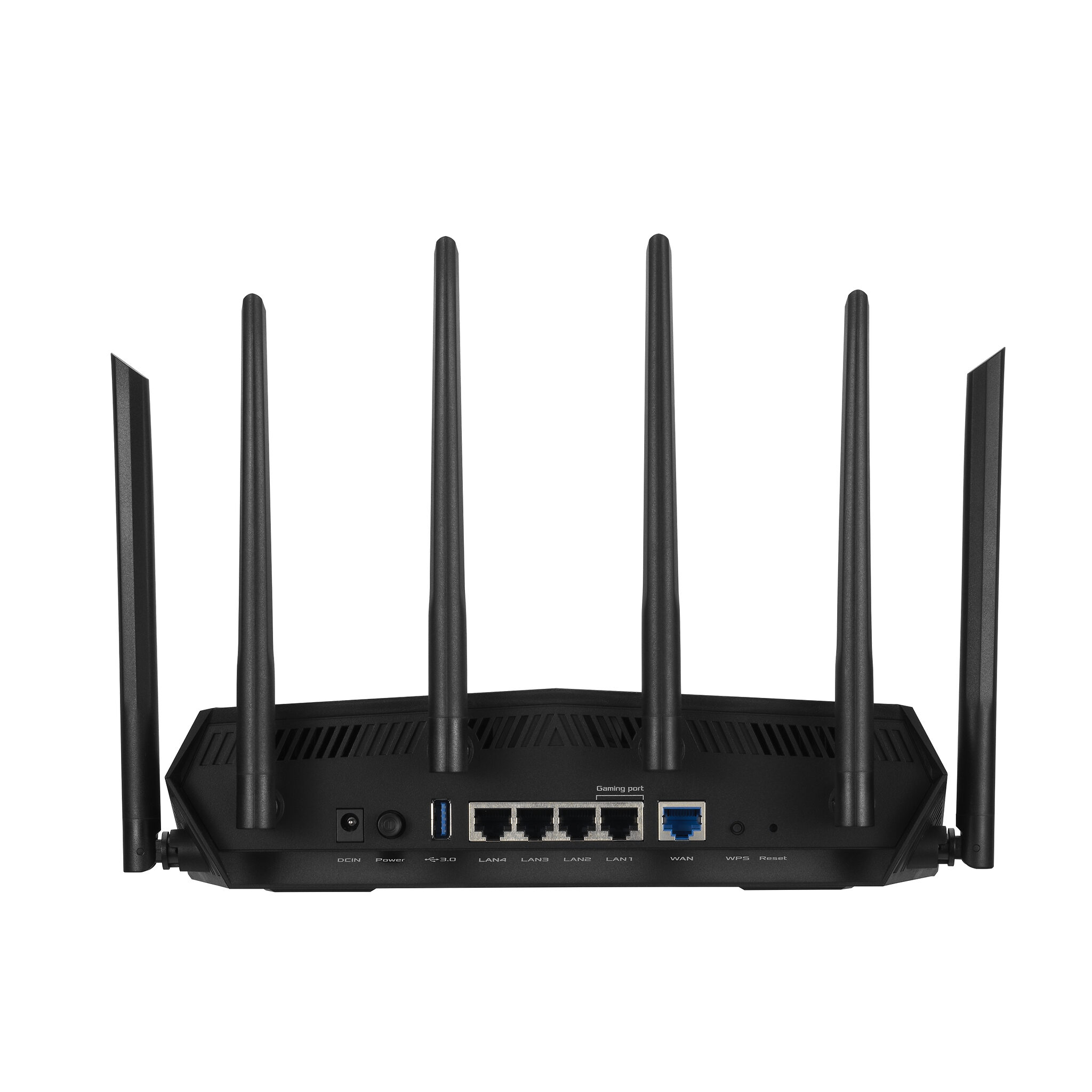

Rear panel I/O ports
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
Security
| Firewall | Yes |
|---|---|
| Parental control | Yes |
| Filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| MAC address filtering | Yes |
| Guest access | Yes |
| System event log | Yes |
| NAT functionality | PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| MAC address table | 64 entries |
WAN connection
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 5378 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
| Modulation | 1024-QAM |
General
| Brand | ASUS |
|---|---|
| Manufacturer part number | 90IG06T0-MO3100 |
Ungrouped
| Gtin | 4711081108757 |
|---|

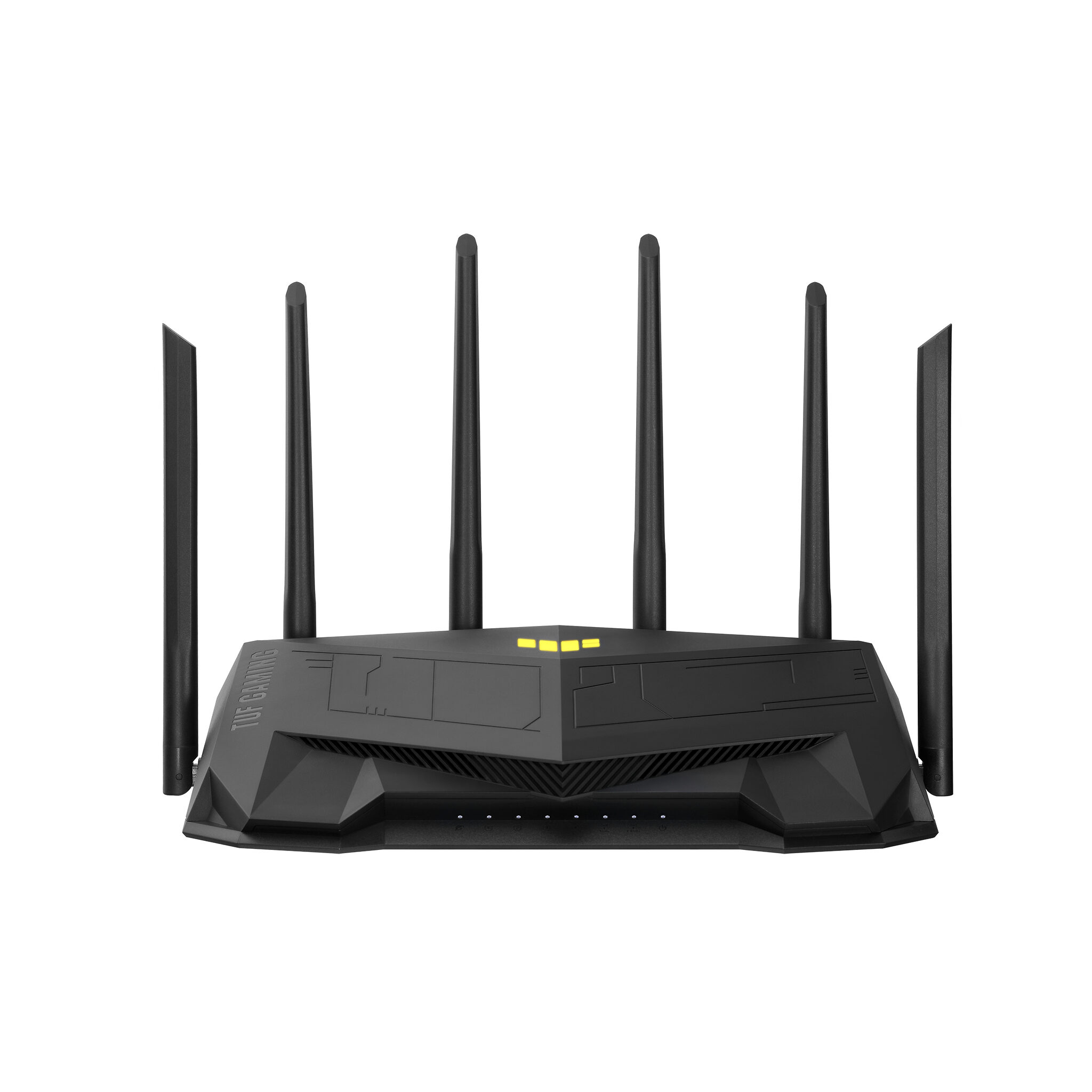

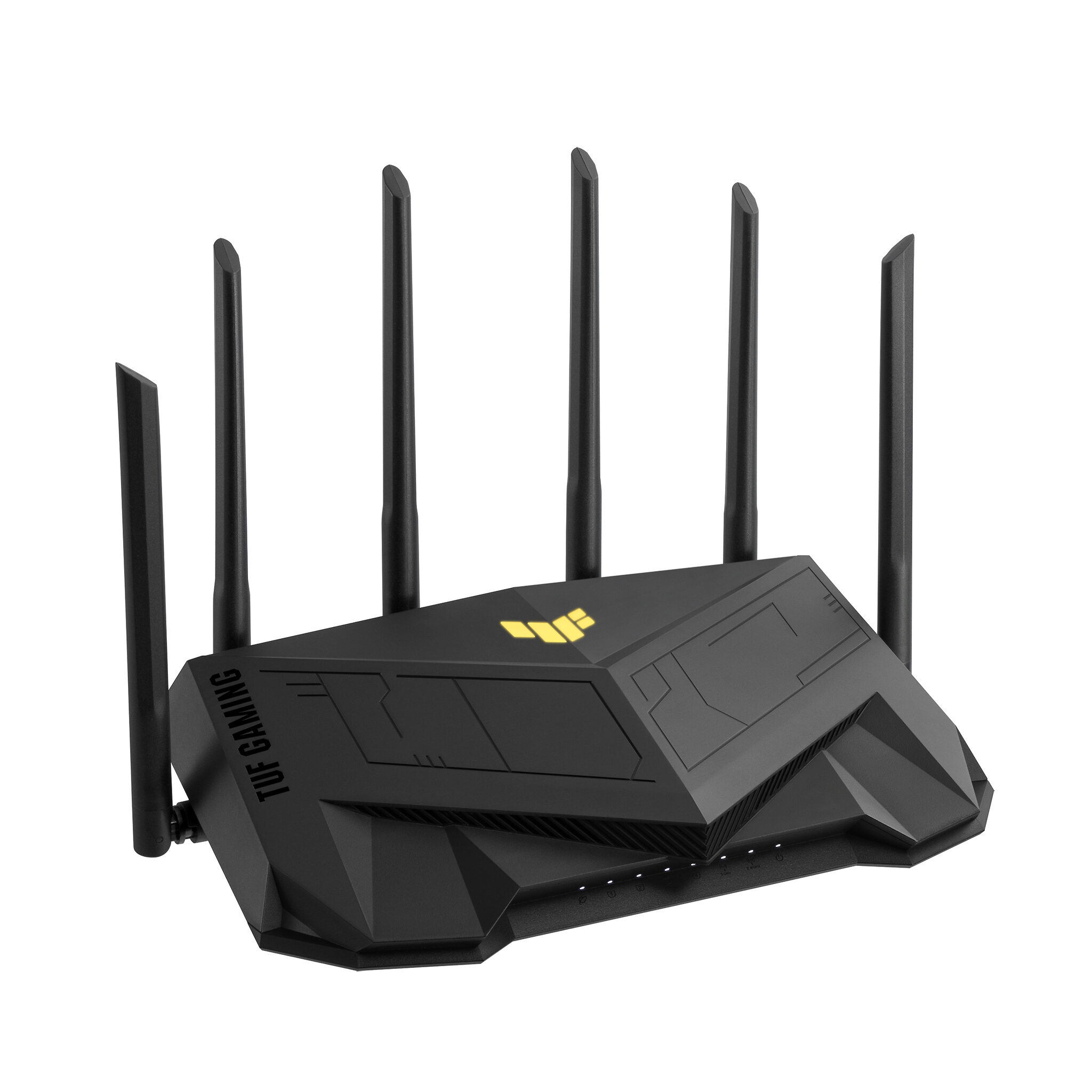

TUF Gaming AX5400
TUF Gaming AX5400 is designed to give you stable and fast wireless and wired connections in device-dense environments. It's a router that benefits all your devices, from laptops, smartphones, and game consoles right down to all the IoT devices in your home.
4X Capacity. 2X Faster.*
WiFi 6 provides faster wireless speeds with OFDMA, BSS coloring and MU-MIMO technologies, and it also boosts network efficiency, so all your devices get their fair share of WiFi bandwidth. It's perfect for busy networks with lots of different WiFi devices, such as laptops, smartphones and smart home devices.
*The data compares speed of 4X4 WiFi 6 solution on 5GHz band 160MHz channel to speed of 4X4 WiFi 5 solution on 5GHz band 80MHz channel
True Multi-Gigabit Wired Speeds
For true multi-gigabit performance, you need both WAN and LAN connections that support these speeds. TUF Gaming AX5400 features both WAN and LAN aggregation, so you can enjoy 2 Gbps wired speeds from your modem all the way to your PC or NAS.
WiFi that Goes Further
We've designed TUF Gaming AX5400 to give you the widest possible WiFi coverage. It uses OFDMA, a new technology in WiFi 6 that allows signals to travel further than they can in WiFi 5. With a 4x4 MIMO configuration and separate 2.4 GHz and 5GHz antennas to reduce interference, along with other enhancements like beamforming, which focuses the signal towards each device, TUF Gaming AX5400 reaches every corner.
Flexible and Scalable Wireless Mesh Networking
If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!
Stable and Durable
TUF Gaming AX5400 is engineered to deliver maximum WiFi performance. The vent location and double heatsink design improve cooling for increased stability, and the fixed antennas and metal port protectors increase physical durability.
One Router. Three Modes. All Game Types.
TUF Gaming AX5400 provides gamers with different features for different game types.
Switch Modes for an Easy Life
Optimize whatever you're doing with different modes, and boost the task at hand!
Simultaneous Gaming and VPN
VPN Fusion lets you run both a VPN and an ordinary internet connection - simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.
Commercial-Grade
Security for Your Home
Home network security is crucial when you have multiple connected devices, and even more so when there are devices without anti-virus capabilities such as IoT devices. TUF Gaming AX5400 includes lifetime free AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. Every device is protected with TUF Gaming AX5400, and you can keep an eye on everything that's happening on your network via the handy mobile app.
More Privacy, Anywhere
Instant Guard gives you one-click secure internet access via TUF Gaming AX5400 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With TUF Gaming AX5400, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!
