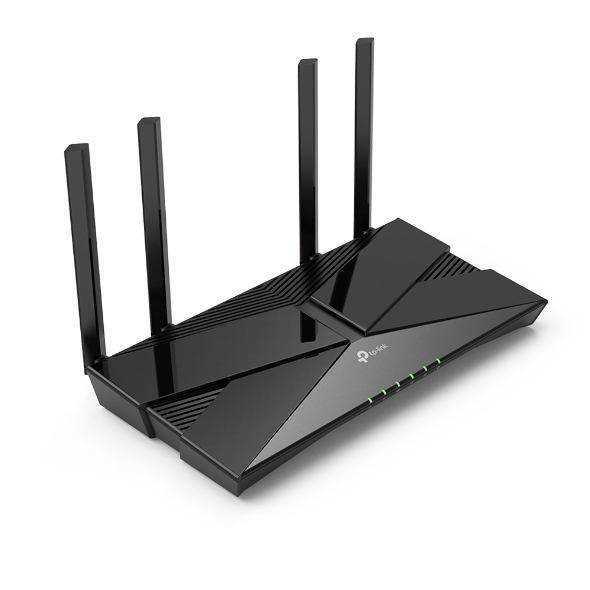

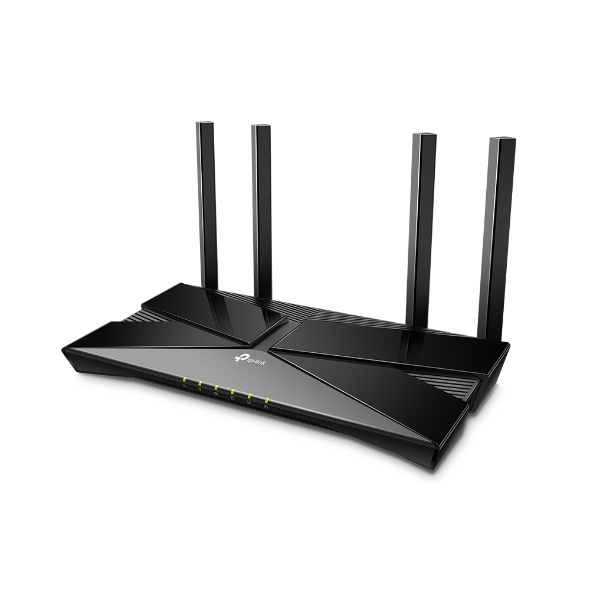

TP-Link Archer AX1800 Dual-Band Wi-Fi 6 Router, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, Black, Tabletop router
Antenna
| Antenna design | External |
|---|---|
| Antenna connector type | SMA |
Design
| Reset button | Yes |
|---|---|
| Product type | Tabletop router |
Features
| Product colour | Black |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows… |
| Power source type | DC |
| Security algorithms | 64-bit WEP, 128-bit WEP, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Certification | FCC, CE, RoHS |
| Built-in processor | Yes |
| Processor cores | 2 |
Logistics data
| Harmonized System (HS) code | 8517.62 |
|---|---|
| Export Control Classification Number (ECCN) | 5A992 |
Management features
| WPS push button | Yes |
|---|---|
| Web-based management | Yes |
| Bandwidth control | Yes |
| Web-based setup wizard | Yes |
Network
| Ethernet LAN | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| VPN server | OpenVPN, PPTP |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Static route | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
Other features
| AC adapter included | Yes |
|---|
Packaging content
| Cables included | LAN (RJ-45) |
|---|---|
| Warranty card | Yes |
| Quick installation guide | Yes |
Packaging data
| Package width | 500 mm |
|---|---|
| Package depth | 350 mm |
| Package height | 395 mm |
| Package weight | 730 g |
Ports & interfaces
| DC-in jack | Yes |
|---|
Power
| Output voltage | 12 V |
|---|---|
| Output current | 1 A |
Processor
| Processor frequency | 1500 MHz |
|---|
Protocols
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |

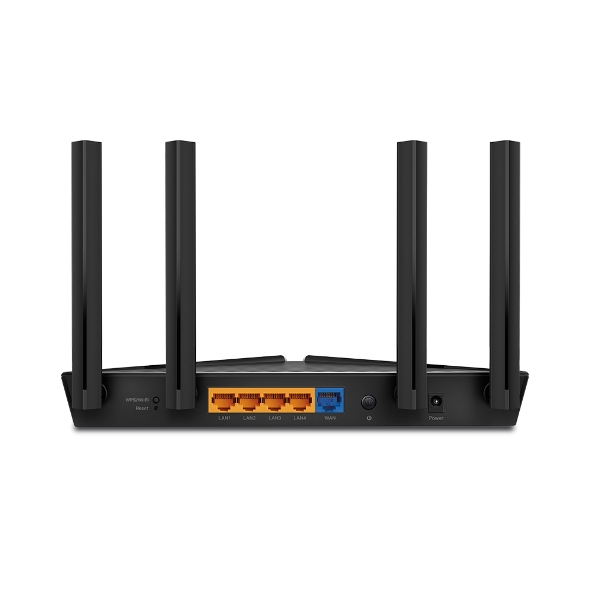

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 4 |
|---|
Security
| Firewall | Yes |
|---|---|
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| Access Control List (ACL) | Yes |
| IP address filtering | Yes |
| Guest access | Yes |
| URL filtering | Yes |
| System event log | Yes |
| NAT functionality | Port Forwarding, Port Triggering, UPnP, DMZ |
Software
| Mac operating systems supported | Yes |
|---|---|
| Linux operating systems supported | Yes |
WAN connection
| Ethernet WAN | Yes |
|---|---|
| SIM card slot | No |
| WAN connection type | RJ-45 |
Weight & dimensions
| Width | 260.2 mm |
|---|---|
| Depth | 135 mm |
| Height | 41.6 mm |
Wireless LAN features
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 1800 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Modulation | OFDMA |
General
| Brand | TP-Link |
|---|---|
| Manufacturer part number | ARCHER AX23 |
Ungrouped
| Gtin | 4897098687048 |
|---|
Explore the
New Era of WiFi
AX1800 Dual-Band Wi-Fi 6 Router
WiFi 6 Upgrades Everything
The latest generation of WiFi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Super-Fast WiFi 6
Transfer HD movies in 10 seconds. WiFi 6's 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Enjoy broader bandwidth while streaming content on multiple devices.
Connect More, Stay Fast
Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.
WiFi Coverage Throughout
Your Home
4× high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas.
TP-Link OneMesh™
Flexibly Create Whole Home WiFi
Want to build a whole-home WiFi? Archer AX23 supports OneMesh to form seamless coverage throughout your home, preventing drops and lag when moving between signals.
WPA3—The Next Level of Cybersecurity
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.
Universal ISP Support
Europe has the most diverse connection types, and TP-Link knows this. Archer AX23 works with all European ISPs by supporting most authentication methods, including the popular L2TP and PPTP methods in your region.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX23 in minutes.
The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.
