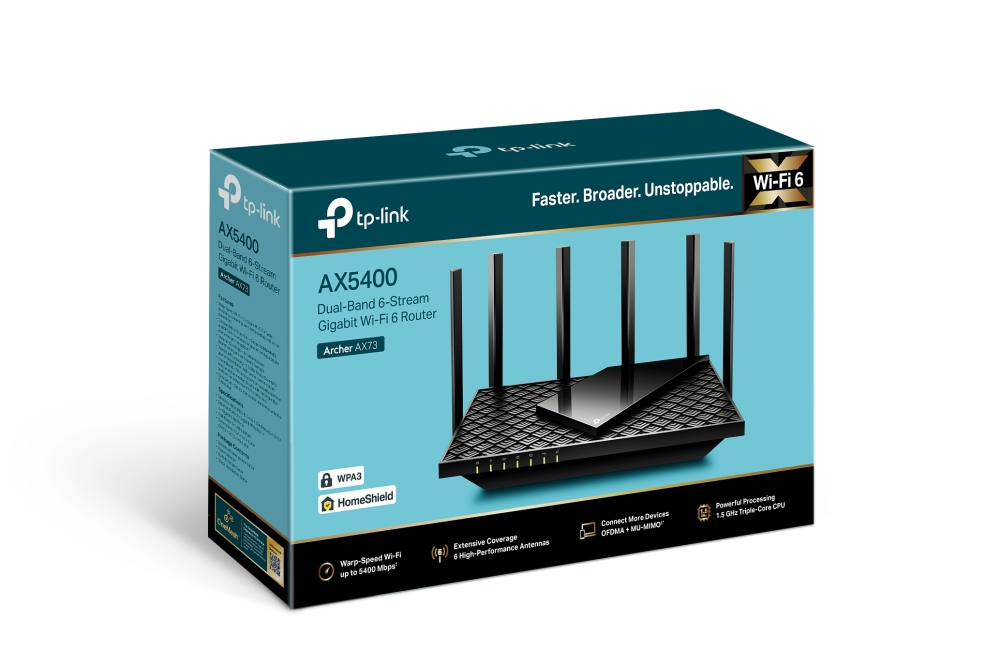

TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, Black, Portable router
Antenna
| Antenna design | External |
|---|---|
| Antennas quantity | 6 |
Design
| On/off switch | Yes |
|---|---|
| Reset button | Yes |
| Product type | Portable router |
Features
| Product colour | Black |
|---|---|
| Power source type | DC |
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Built-in processor | Yes |
| Processor cores | 3 |
| Firmware upgradeable | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Management features
| Quality of Service (QoS) support | Yes |
|---|---|
| WPS push button | Yes |
| Web-based management | Yes |
| MU-MIMO technology | Yes |
Network
| Ethernet LAN | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 4 (802.11n), 802.11b, 802.11a, 802.11g, Wi-Fi 5 (802.11ac) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Built-in FTP server | Yes |
| Media server | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| Support Samba (storage) | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Other features
| Country of origin | Malaysia |
|---|---|
| Packaging content | 1 x TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black |
| AC adapter included | Yes |
Packaging content
| Cables included | LAN (RJ-45) |
|---|---|
| Quick installation guide | Yes |
Packaging data
| Package width | 124 mm |
|---|---|
| Package depth | 310 mm |
| Package height | 38 mm |
| Package weight | 800 g |
| Quantity per pack | 1 pc(s) |
Ports & interfaces

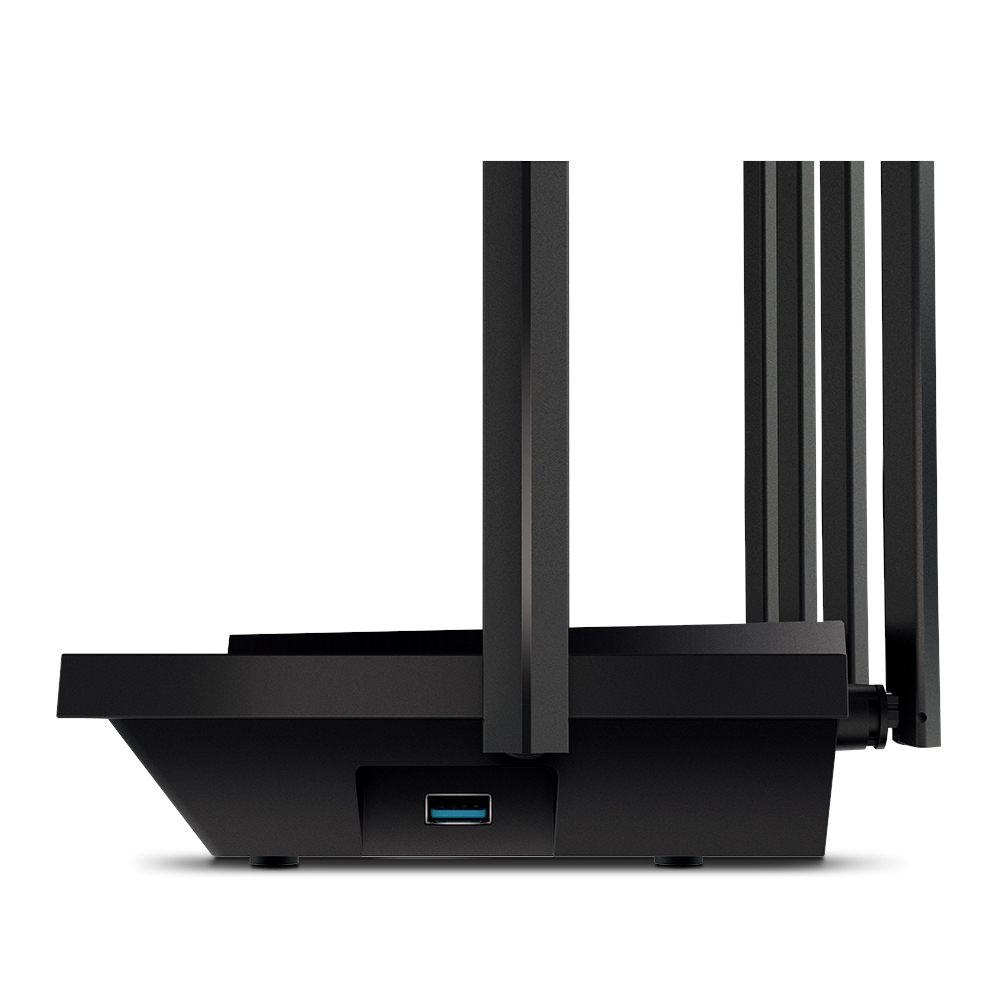

| USB port | Yes |
|---|
Power
| Output voltage | 12 V |
|---|---|
| Output current | 2.5 A |
Processor
| Processor frequency | 1500 MHz |
|---|
Protocols
| DHCP client | Yes |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |

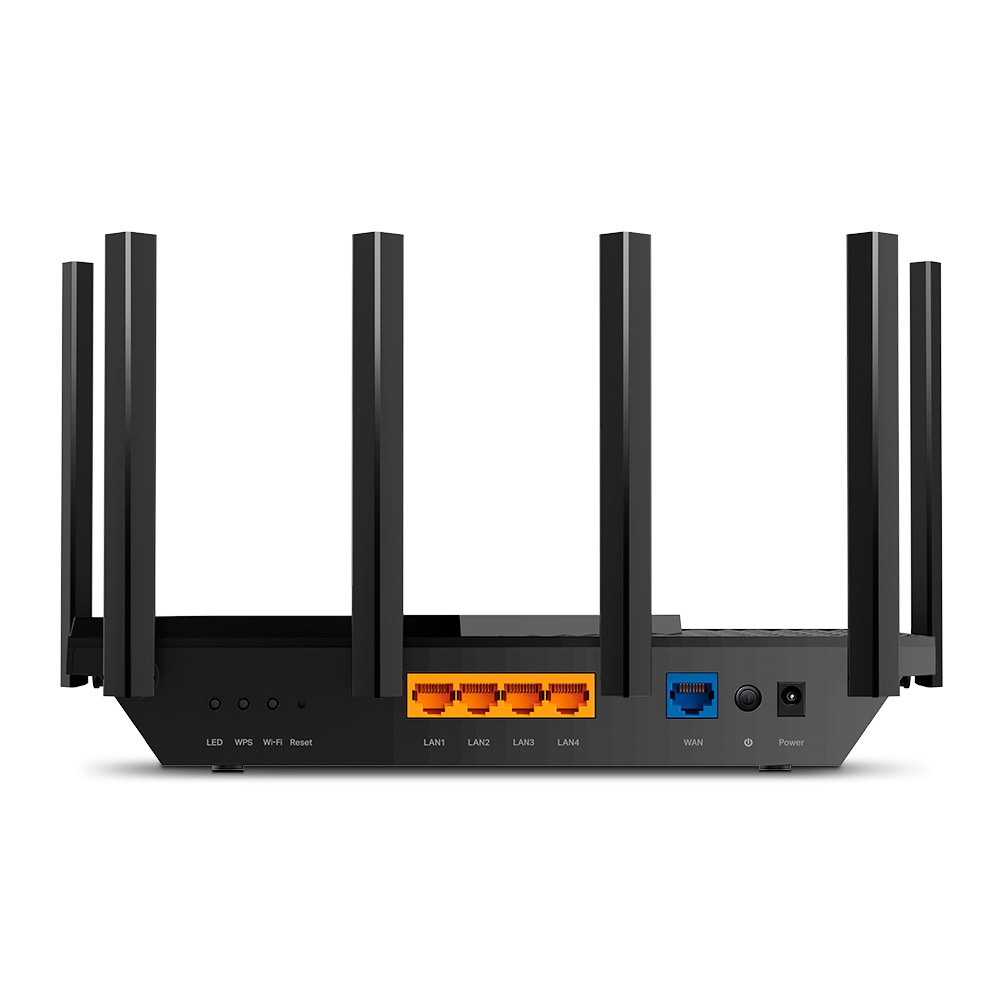

Rear panel I/O ports
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
Security
| Firewall | Yes |
|---|---|
| DoS attack prevention | Yes |
| Parental control | Yes |
| Filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| Access Control List (ACL) | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
Sustainability
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
|---|---|
| Sustainability compliance | Yes |
WAN connection
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Weight & dimensions
| Width | 272.5 mm |
|---|---|
| Depth | 147.2 mm |
| Height | 49.2 mm |
Wireless LAN features
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 5400 Mbit/s |
| WLAN data transfer rate (first band) | 4804 Mbit/s |
| WLAN data transfer rate (second band) | 574 Mbit/s |
| Modulation | 1024-QAM, OFDM |
General
| Brand | TP-Link |
|---|---|
| Manufacturer part number | ARCHER AX73 |
Ungrouped
| Gtin | 6935364010263 |
|---|
The latest generation of Wi-Fi technology brings faster speeds, less lag and higher capacity, enabling more simultaneous connections on your home network. Enjoy stable Wi-Fi connections, even in the kitchen and bedroom. High-Power FEM, 6 x Antennas, Beamforming and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices. HomeShield will record abnormal incoming traffic and the device will automatically block requests from enlisted IPs. Manage online time and block inappropriate content to keep your family safe online. 5400 Mbps wifi for faster browsing, streamings and downloading, all at the same time. Fully Featured wi-fi 6 equips with the top structure of 4t4r and he160 on the 5 ghz band to enable 4.8 gbps ultra-fast connection. Connect 200+ devicesSection supports mu-mimo and ofdma to reduce congestion and quadruple the average throughput. Extensive coverage 6 x antennas and beamforming ensure broad coverage. HomeShield tp-link's premium security services keep your home network safe with cutting-edge features for network and iot protection. More Vents, less heat improved vents area unleash the full power of the whole machine. USB Sharing 1 x usb 3.0 port enables easy media sharing and private cloud building. Easy Setup set up the router in minutes with tether app. Link Aggregation static link aggregation (lag) available with 2 x lan ports.
