ASUS ROG-THOR-1000P2-GAMING 1000 W 24-pin ATX ATX Black, Silver

Art. no. ASUS-90YE00L1-B0NA00 On request

ASUS ROG-THOR-1000P2-GAMING, 1000 W, 100 - 240 V, Active, 25 A, 83 A, 25 A

Trade price on request

Wholesale supply only

Specifications

Design

Number of fans 1 fan(s)
Fan diameter 13.5 cm

Features

Product colour Black, Silver
Certification ROHS

Internal I/O

Peripheral (Molex) power connectors (4-pin) 6

Logistics data

Harmonized System (HS) code 84733020

Other features

Weight 2.37 kg

Packaging data

Package width 378 mm
Package depth 240 mm
Package height 130 mm
Package weight 4.78 kg
Package type Box

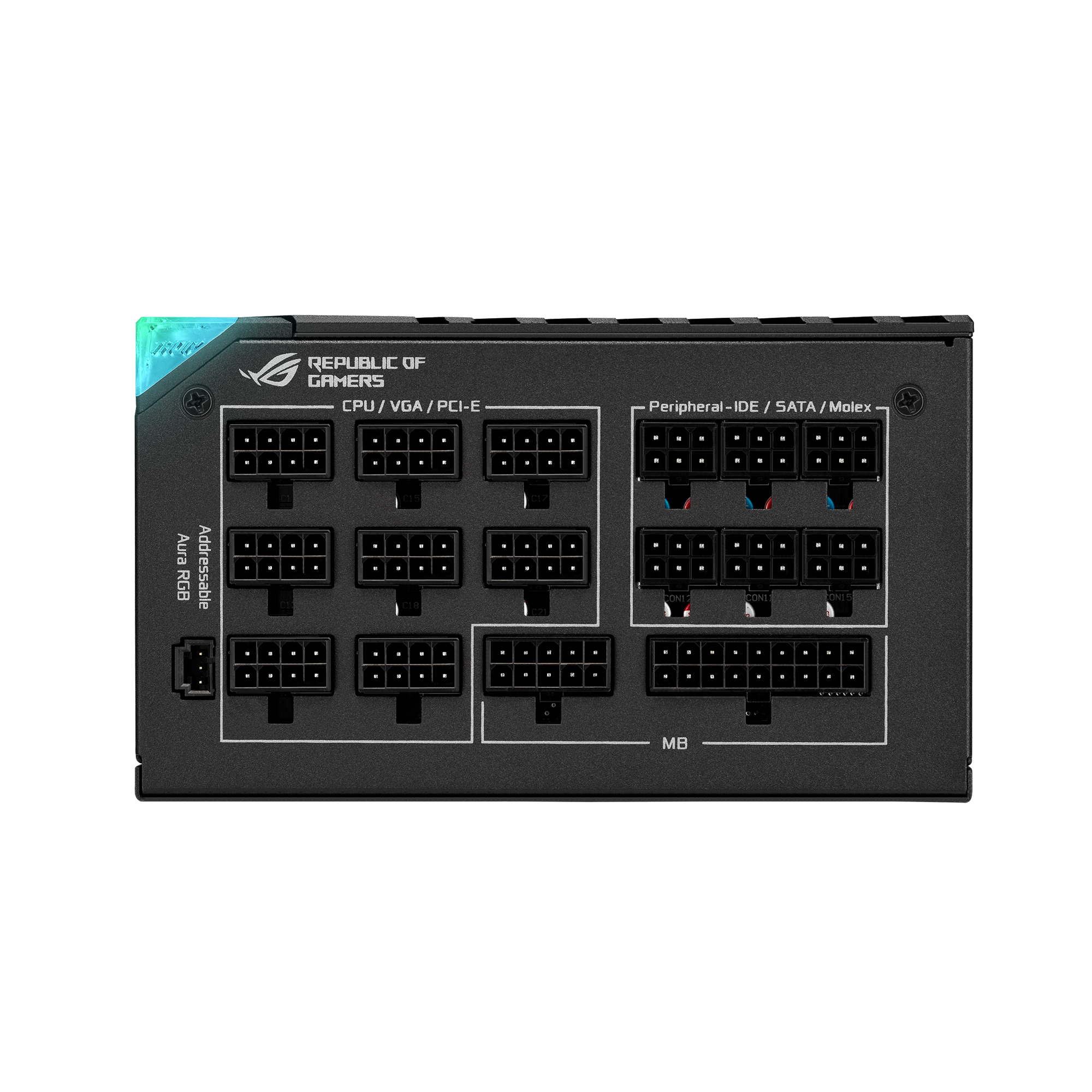

Ports & interfaces

Motherboard power connector 24-pin ATX
Number of SATA power connectors 12
Cabling type Fully-Modular
Motherboard power cable length 61 cm
CPU power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 8

Power

Total power 1000 W
AC input voltage 100 - 240 V
Power Factor Correction (PFC) type Active
Max output current (+3.3V) 25 A
Max output current (-12V) 83 A
Max output current (+5V) 25 A
Max output current (+5Vsb) 3 A
Efficiency 89%

Safety regulation & standards

Safety ROHS

Weight & dimensions

Width 190 mm
Depth 150 mm
Height 86 mm

General

Brand ASUS
Manufacturer part number 90YE00L1-B0NA00

Performance

80 PLUS certification 80 PLUS Platinum
Purpose PC
Power supply unit (PSU) form factor ATX

Ungrouped

Gtin 4711081236290

Description

ROG Thor 1000W Platinum II is the quietest PSU in its class.

The Quietest 1000W Power Supply
Back with a vengeance, the second iteration of the ROG Thor 1000W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.

COOLING

ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.

Axial-tech Fan Design
A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.

Dual Ball Fan Bearings
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.​

Lambda A++ Certification
Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.

ENGINEERING

80 Plus Platinum Certification
The ROG Thor 1000W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.

EXPERIENCE

OLED Power Display
The built-in OLED panel makes it easy to tune your system for best performance and efficiency.

Aura Sync
Customize the Aura ROG logo and/or add RGB lighting strips to accent your showcase build.

* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.

Sleeved Cables
A range of sleeved cables are bundled with Thor II, and we also provide a 20% CableMod discount.

PCIe Gen 5.0 Ready
Each ROG Thor 1000W Platinum II PSU is bundled with a 12-pin PCIe cable that can pipe up to 450W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.

10-year Warranty
The ROG Thor 1000W Platinum II is backed with a 10-year* warranty.

*Core product operation is guaranteed for 10 years. The OLED panel and RGB LEDs are subject to a 3-year warranty.
