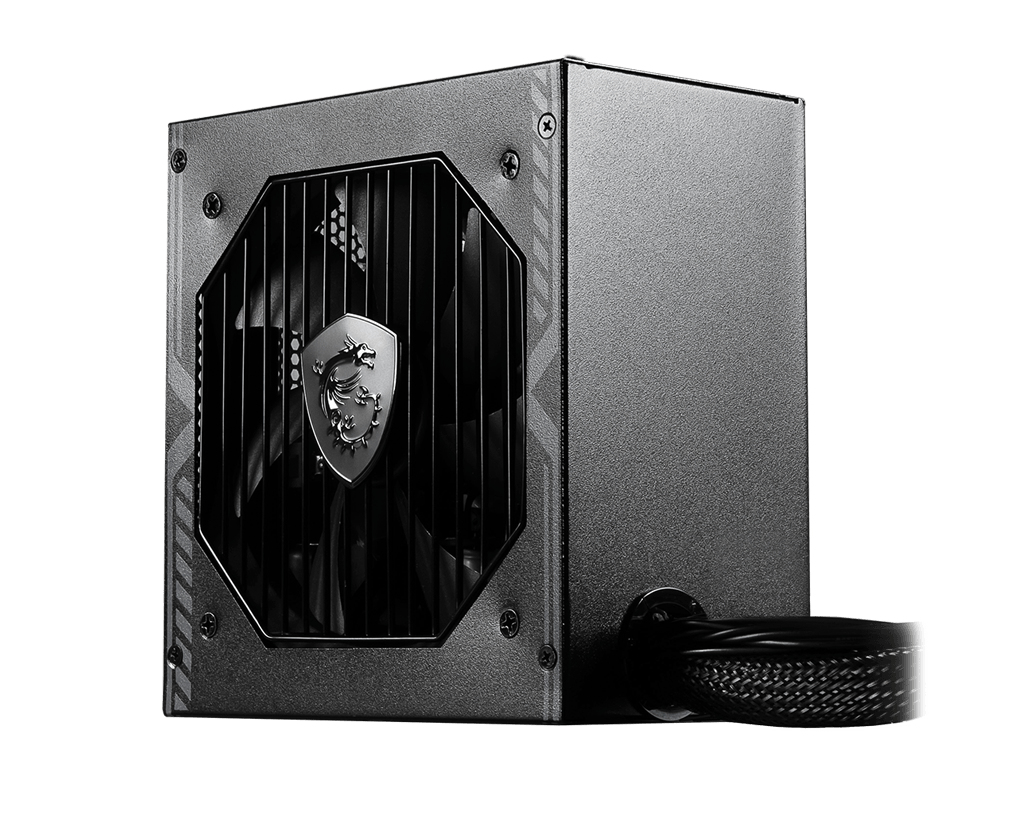

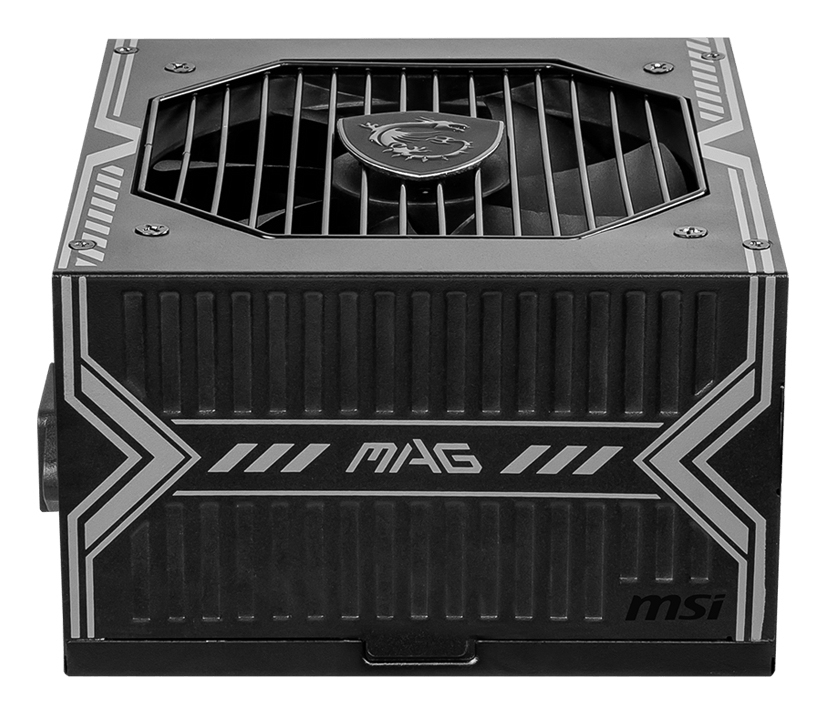

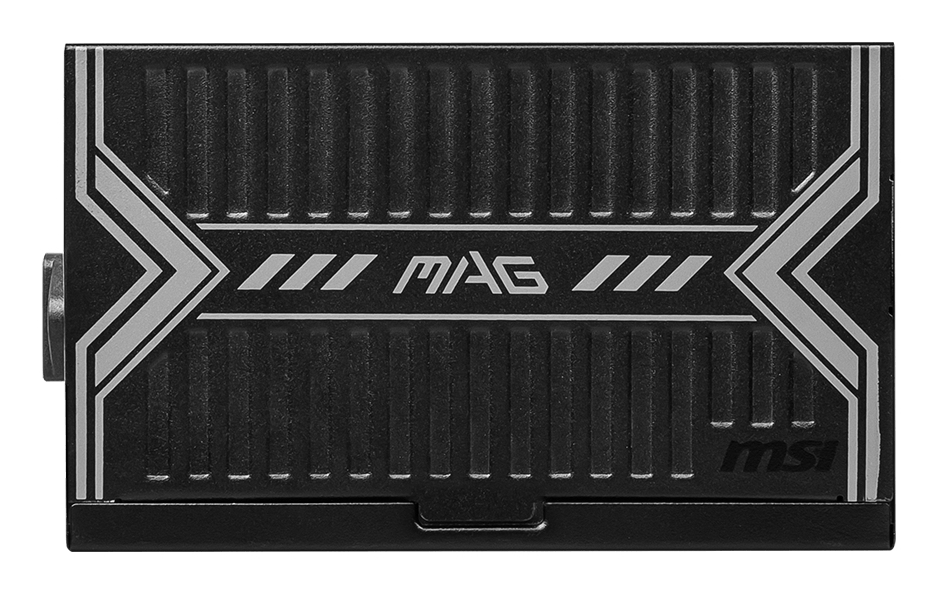

MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modu… MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black' MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black' MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'

MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modu…

Art. no. MSI-MAG A650BN On request

MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black', 650 W, 100 - 240 V, 50 - 60 Hz, 10 A, 5 A, A…

Trade price on request

Wholesale supply only

Wholesale terms →

Specifications

Design

Number of fans 1 fan(s)
Illumination No
Fan diameter 12 cm
On/off switch Yes

Features

Product colour Black
Cooling type Active

Internal I/O

ATX Power connector (24-pin) No
Peripheral (Molex) power connectors (4-pin) 2
EPS power connector (8-pin) No

Logistics data

Harmonized System (HS) code 84733020

Ports & interfaces

Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 5
PCI Express connector Yes
Cabling type Non-Modular
Motherboard power cable length 60 cm
CPU power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 2
ATX power connector (20+4 pin) Yes
EPS power connector (4+4 pin) Yes
Floppy disk drive connector No

Power

Total power 650 W
AC input voltage 100 - 240 V
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 110 W
Combined power (-12V) 648 W
Combined power (+5V) 110 W
Combined power (+5Vsb) 12.5 W
Max output current (+3.3V) 20 A
Max output current (-12V) 54 A
Max output current (+5V) 20 A
Max output current (+5Vsb) 20 A
Efficiency 85%
Power protection features Over current, Over power, Over voltage, Short circuit
AC input frequency 50 - 60 Hz
Maximum input current (@110V) 10 A
Maximum input current (@220V) 5 A

Weight & dimensions

Width 150 mm
Depth 140 mm
Height 86 mm

General

Brand MSI
Manufacturer part number MAG A650BN

Performance

80 PLUS certification 80 PLUS Bronze
Purpose PC
Power supply unit (PSU) form factor ATX

Ungrouped

Gtin 4719072849627

Description

MAG A650BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A650BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.

80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.

120MM LOW NOISE FAN
The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.

DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.

COMPREHENSIVE CIRCUIT PROTECTION
Supports OCP, OVP, SCP, OPP, OTP protection
mechanisms and provides comprehensive protection.

5-YEAR LIMITED WARRANTY
The MAG A650BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.
