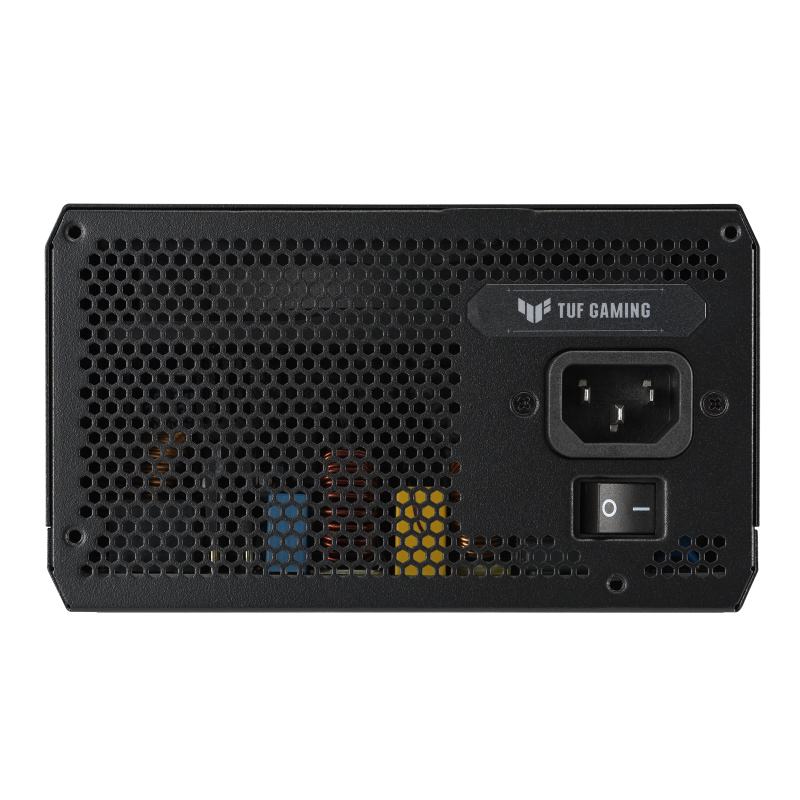

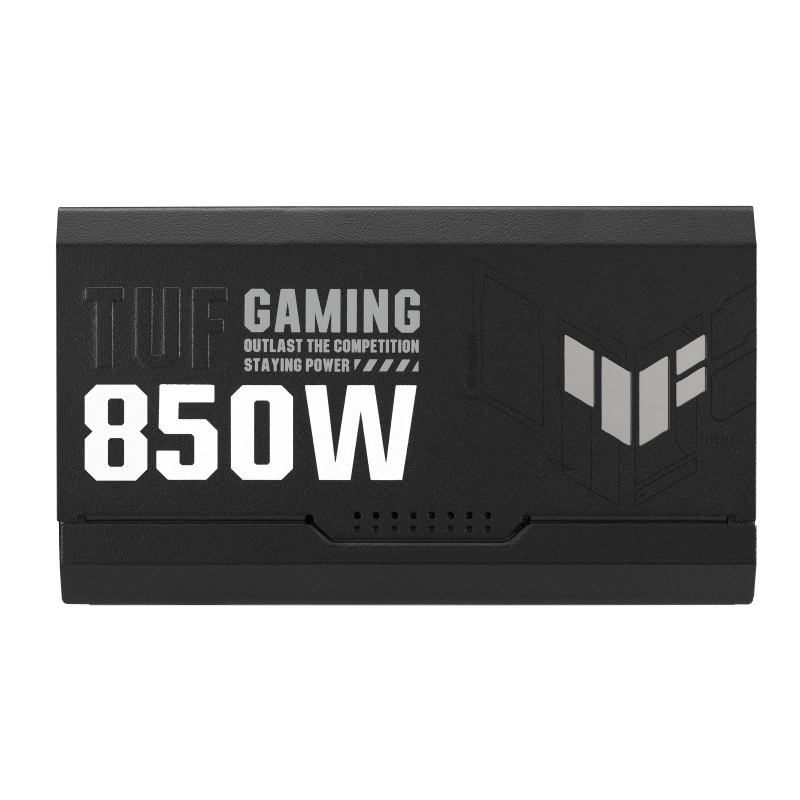

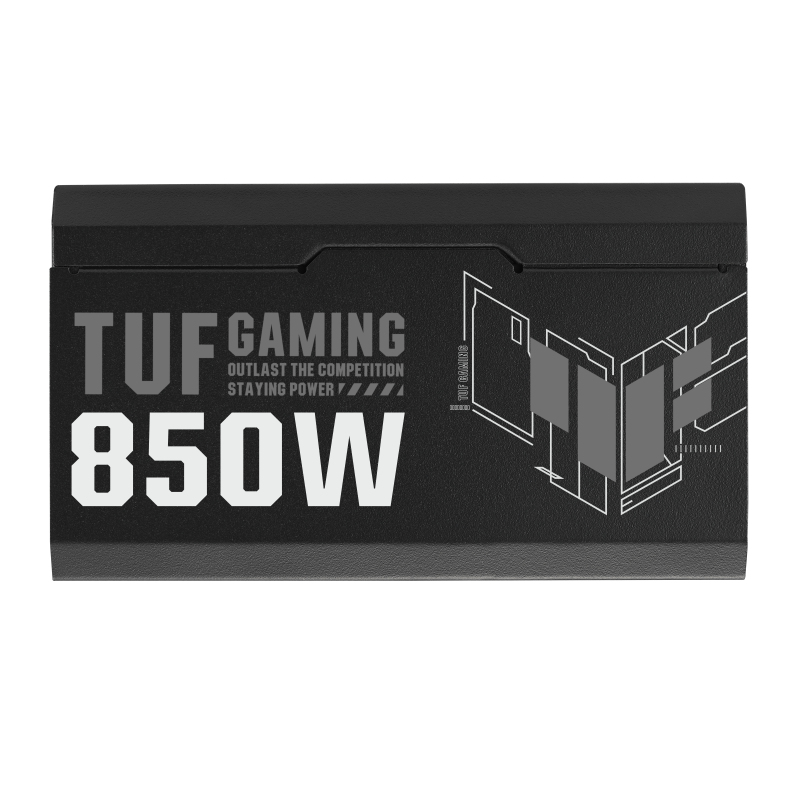

ASUS TUF-GAMING-850G, 850 W, 100 - 240 V, Active, 130 W, 850 W, 130 W
Design
| Number of fans | 1 fan(s) |
|---|---|
| Illumination | No |
| Fan diameter | 13.5 cm |
| On/off switch | Yes |
Features
| Product colour | Black |
|---|---|
| Cooling type | Active |
| Mean time between failures (MTBF) | 170000 h |
Internal I/O
| Peripheral (Molex) power connectors (4-pin) | 4 |
|---|---|
| EPS power connector (8-pin) | No |
Logistics data
| Warranty period | 10 year(s) |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 105 °C |
|---|
Other features
| Weight | 2.38 kg |
|---|
Packaging content
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
|---|---|
| Cable tie(s) included | Yes |
Packaging data
| Package type | Box |
|---|
Ports & interfaces
| Motherboard power connector | 24-pin ATX |
|---|---|
| Number of SATA power connectors | 5 |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (8-pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 67.5 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
Power
| Total power | 850 W |
|---|---|
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (-12V) | 850 W |
| Combined power (+5V) | 130 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (-12V) | 70.8 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Sustainability
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 150 mm |
|---|---|
| Depth | 150 mm |
| Height | 86 mm |
General
| Brand | ASUS |
|---|---|
| Manufacturer part number | 90YE00S2-B0ZA00 |
Performance
| 80 PLUS certification | 80 PLUS Gold |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Noise level | 0 dB |
| Bearing technology | Ball bearing |
Ungrouped
| Gtin | 0195553786645 |
|---|
The TUF Gaming 850W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.
Built For The Long Haul
The ASUS TUF Gaming 850W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.
TUF Components
Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 850W Gold empowers you to build in confidence.
80 Plus Gold Certification
Heart of gold
The TUF Gaming 850W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
