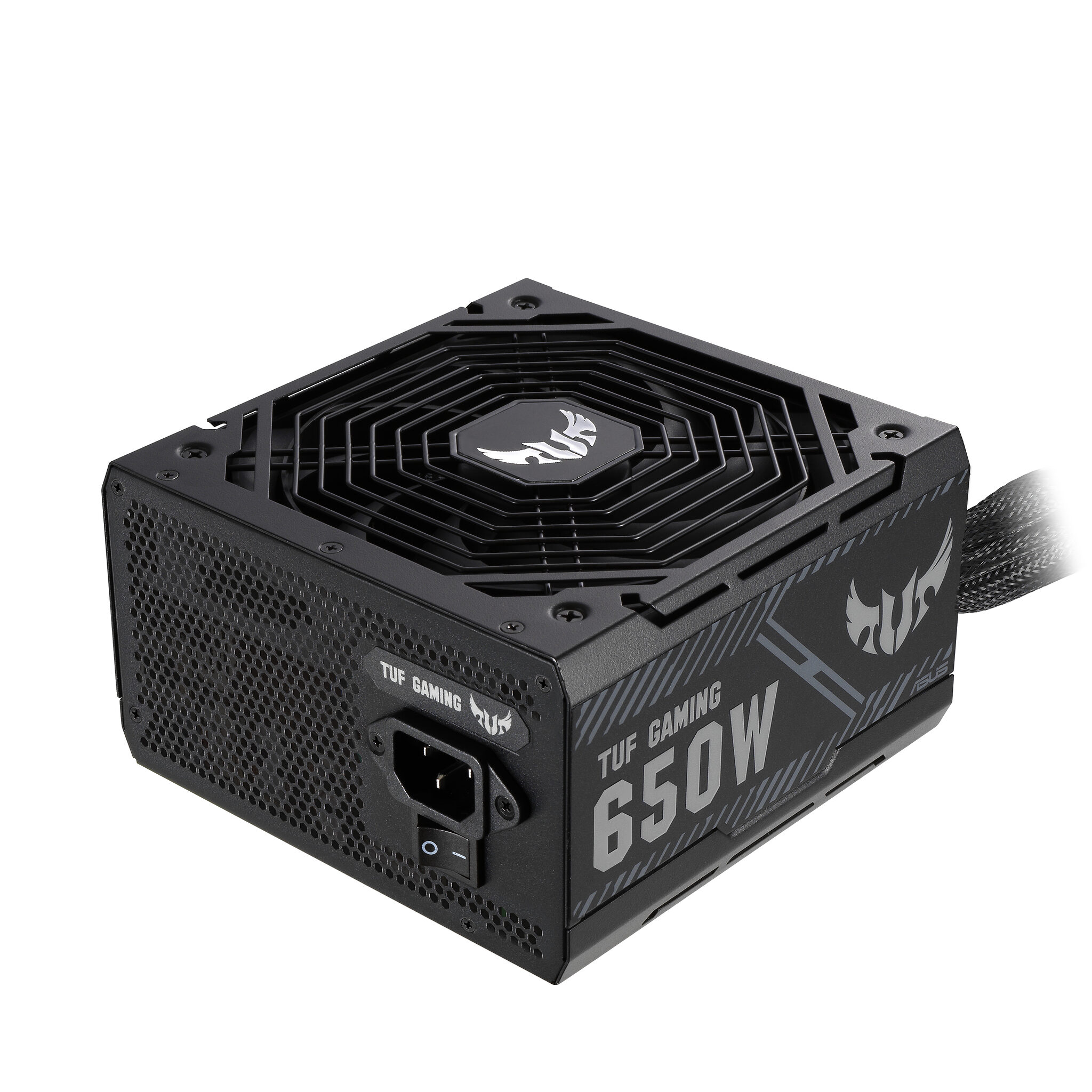

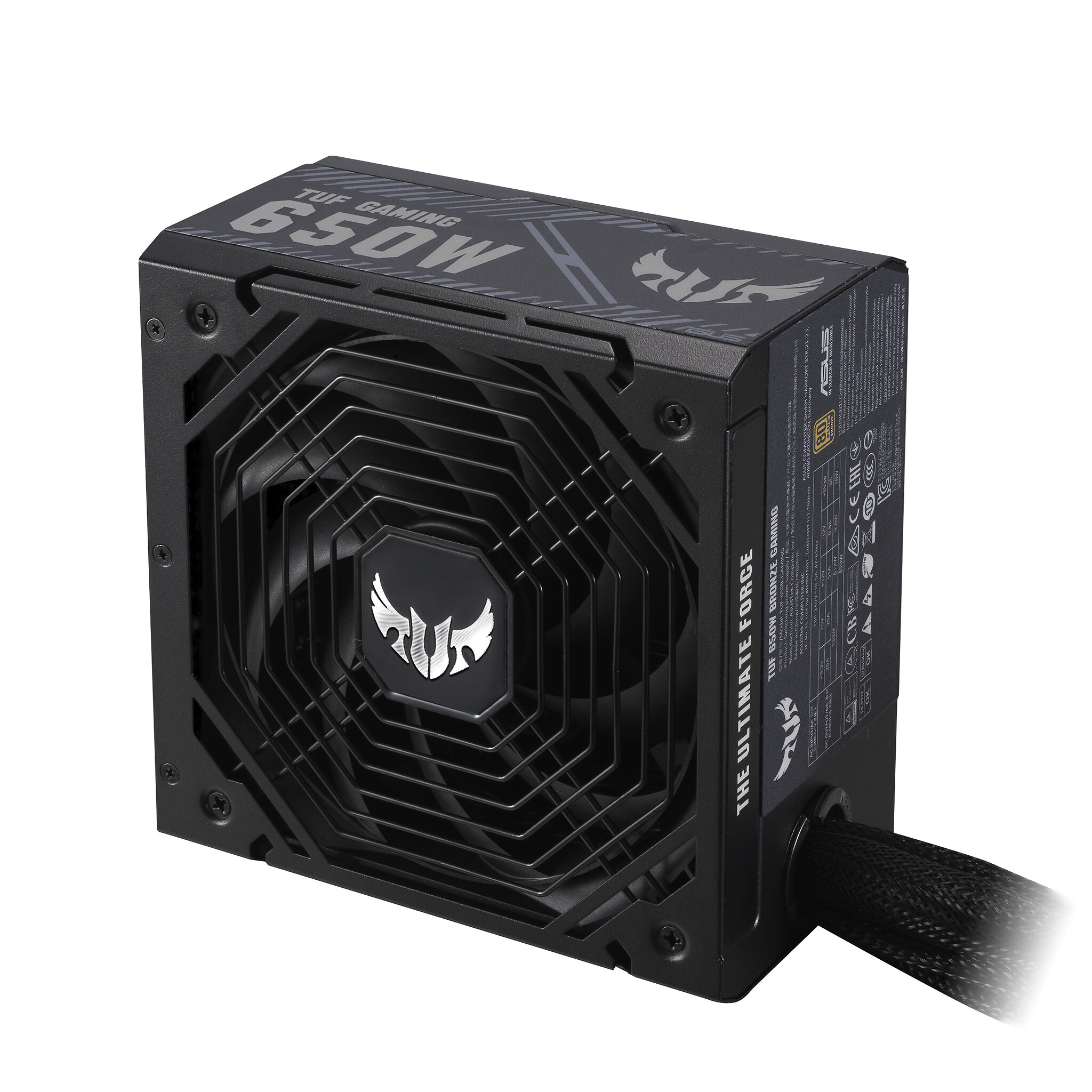

ASUS TUF-GAMING-650B, 650 W, 100 - 240 V, 25 A, 130 W, 612 W, 130 W
Design
| Number of fans | 1 fan(s) |
|---|---|
| Illumination | No |
| Fan diameter | 13.5 cm |
| On/off switch | Yes |
Features
| Product colour | Black |
|---|---|
| Cooling type | Active |
Internal I/O
| Peripheral (Molex) power connectors (4-pin) | 4 |
|---|
Logistics data
| Harmonized System (HS) code | 84733020 |
|---|
Other features
| Weight | 2.06 kg |
|---|
Packaging content
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
|---|
Packaging data
| Package weight | 2.75 kg |
|---|---|
| Package type | Box |
Ports & interfaces
| Motherboard power connector | 20+4 pin ATX |
|---|---|
| Number of SATA power connectors | 5 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 400 mm |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 80 cm |
| PCI Express power connectors (6+2 pin) | 4 |
Power
| Total power | 650 W |
|---|---|
| AC input voltage | 100 - 240 V |
| Combined power (+3.3V) | 130 W |
| Combined power (-12V) | 612 W |
| Combined power (+5V) | 130 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (-12V) | 51 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Input current | 25 A |
Sustainability
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 150 mm |
|---|---|
| Depth | 150 mm |
| Height | 86 mm |
General
| Brand | ASUS |
|---|---|
| Manufacturer part number | 90YE00D1-B0NA00 |
Performance
| 80 PLUS certification | 80 PLUS Bronze |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
Ungrouped
| Gtin | 4718017724272 |
|---|
Built For The Long Haul
TUF Gaming series PSUs bring military-grade components and a robust cooling solution together to create a power platform you can depend on. High-quality capacitors and chokes undergo a myriad of tests, including extreme temperatures and vibration tests, to ensure they meet rigorous military specifications. An Axial-tech fan with a dual ball fan bearing design offers more longevity than other fan types, increasing the overall lifespan of the product. It's the perfect PSU to slot into a TUF Gaming rig or any DIY build designed to power through AAA games for years to come.
Military−grade Certification
Top marks
All critical capacitors and chokes in TUF Gaming PSUs are certified to military-grade specifications, ensuring reliable operation over a wide range of temperatures.
Dual Ball Fan Bearings
2x longer lifespan
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
Protective PCB Coating
All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.
80 Plus Bronze Certification
Brains and Bronze
The high-quality components used in TUF Gaming power supplies ensure efficient and reliable operation worthy of an 80 PLUS Bronze Certification. The efficiency also leads to low temperatures within the PSU, facilitating an even quieter acoustic profile for the 135mm Axial-tech fan.
Axial−tech Fan Design
Better, faster, stronger
Originally developed for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
0dB Technology
Quiet intelligence
An onboard controller brings the 135mm fan to a standstill when thermal design power (TDP) is below 30%, letting you enjoy light gaming in relative silence. Above 30% TDP, the fans automatically start up again.
6−year Warranty
Entrenched performance
We're so confident about the reliability of the TUF Gaming series PSUs that we back them with a 6-year worldwide warranty.
Sleeved Cables
Slim-fit
Cables swathed in black sleeving leave your rig looking tactically clean.
